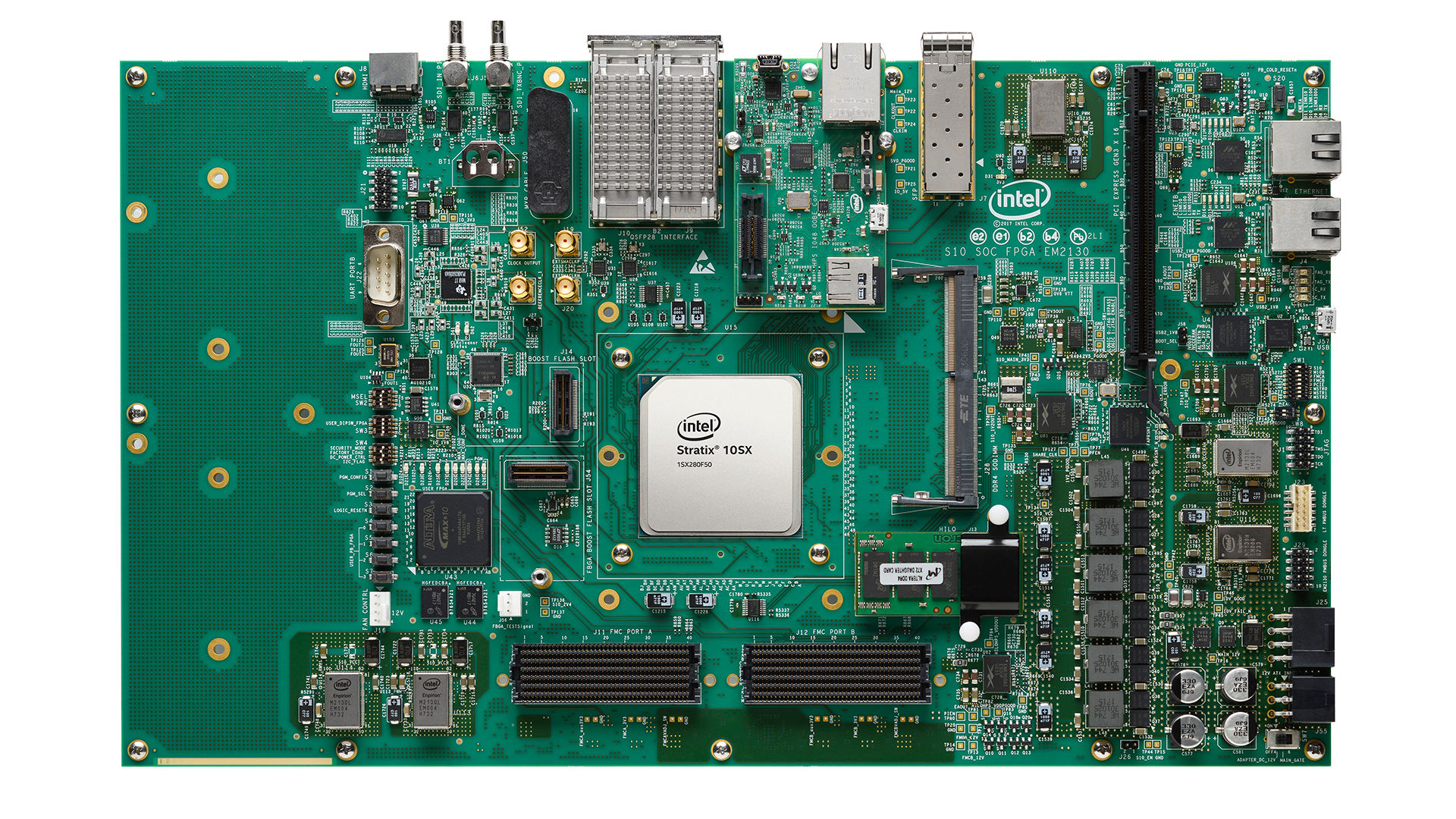

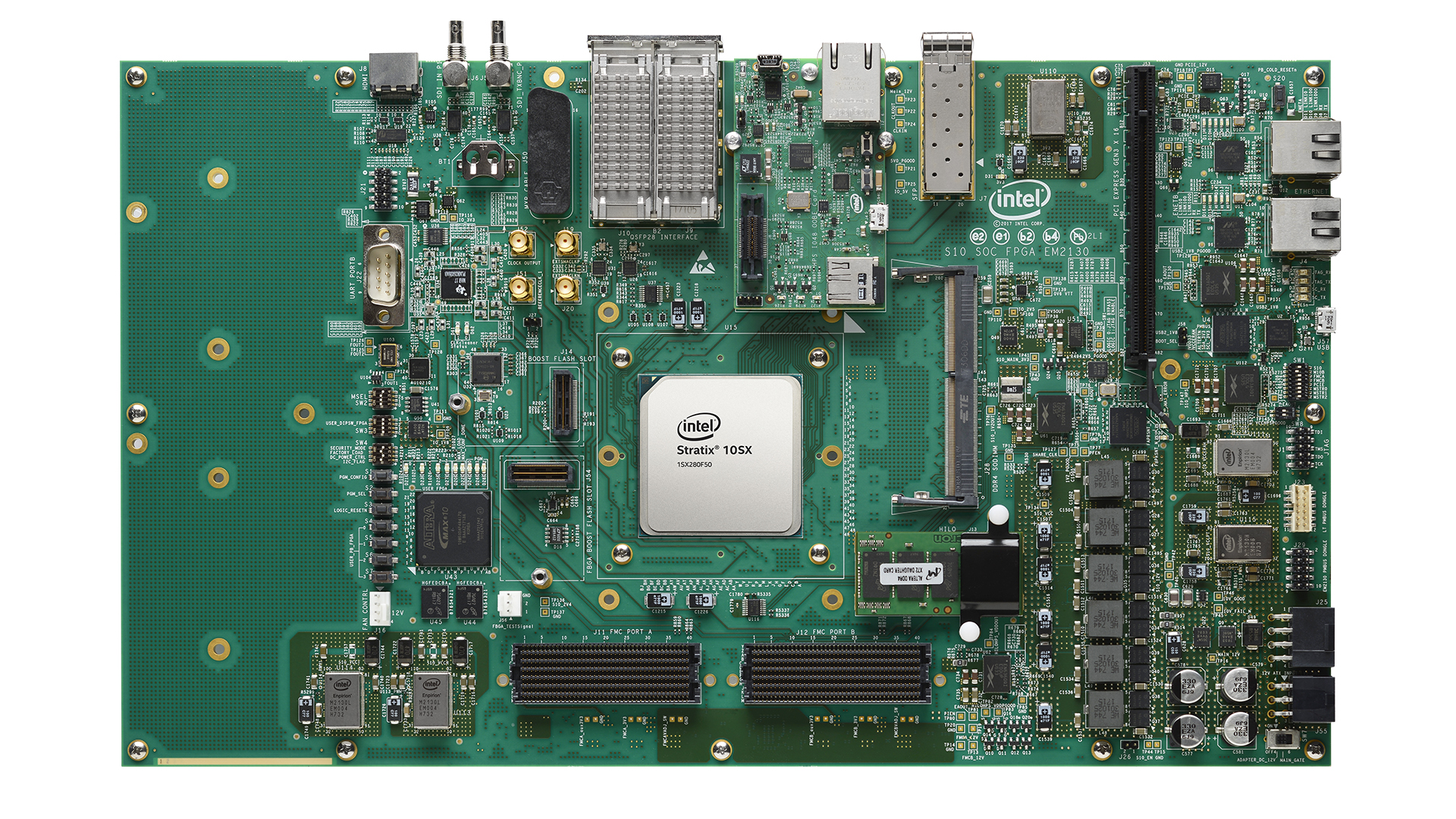

Intel® Stratix® 10 SX SoC Development Kit

The Intel® Stratix® 10 SoC Development Kit offers a quick and simple approach for developing custom Arm Development Studio (Arm DS) for Intel® SoC FPGA processor-based SoC designs. The Intel® Stratix® 10 SoCs offer full software compatibility with previous generation SoCs, a broad ecosystem of Arm DS for Intel® SoC FPGA software and tools, and the enhanced FPGA and digital signal processing (DSP) hardware design flow.

  • Overview

Use the Intel® Stratix® 10 SX SoC Development Kit to:

  • Evaluate the Intel® Stratix® 10 SoC device features and performance.
  • Begin development of your hardware and software design.
  • Use as a platform for target reference designs, OS/BSP, and tools.

Table 1. Ordering Information

Ordering Code Buy Intel Stratix 10 SX SoC Devices

 Contact Distributor for more information

DK-SOC-1SSX-H-D Buy now 1SX280HU2F50E1VGAS

Step 1: Copy the Dev Kit Ordering Code.

Step 2: Select an Intel Distributor from Intel® Solutions Marketplace.

Step 3: Fill out the contact form and include the Dev Kit Ordering Code.​

View all Show less

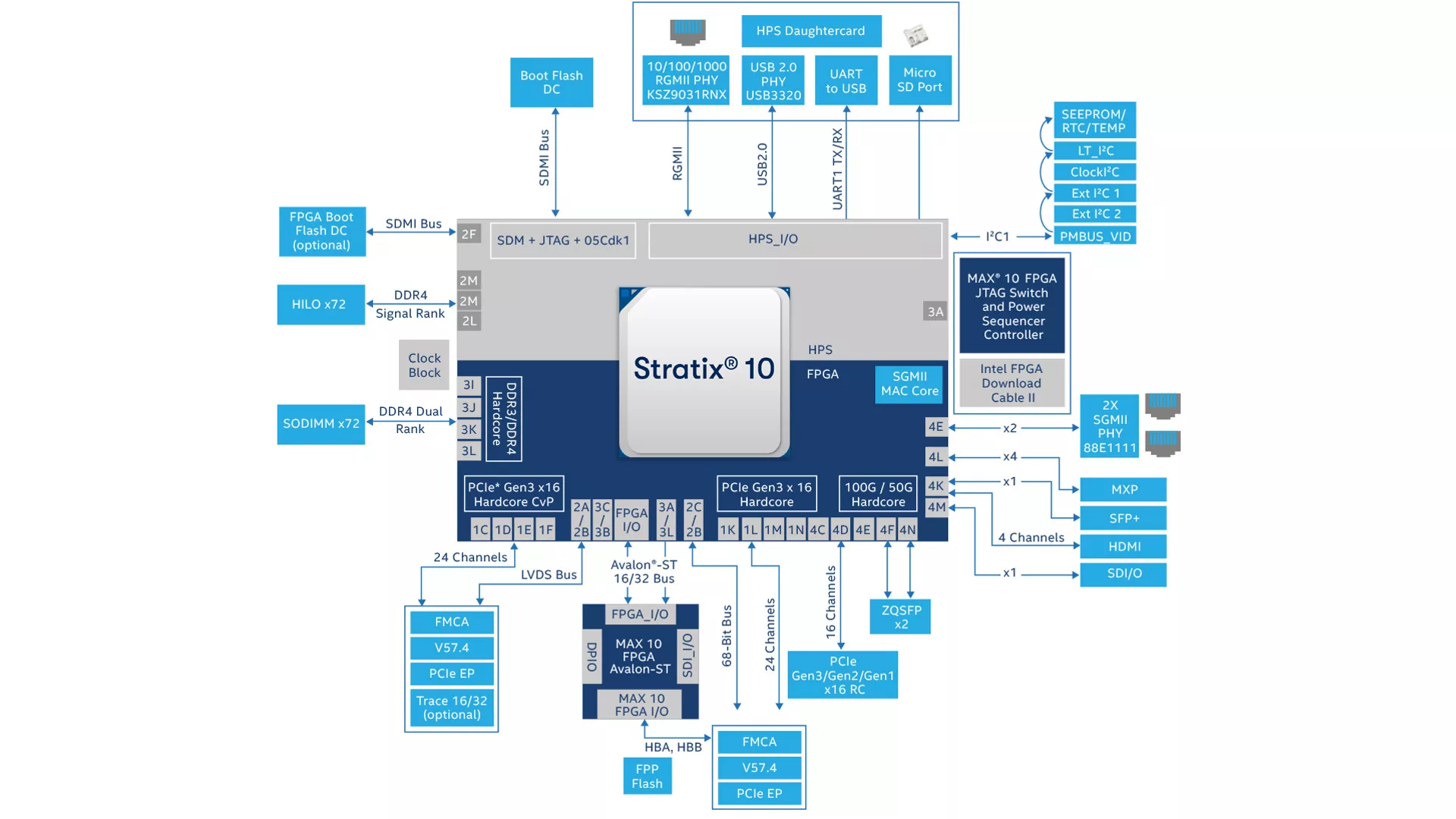

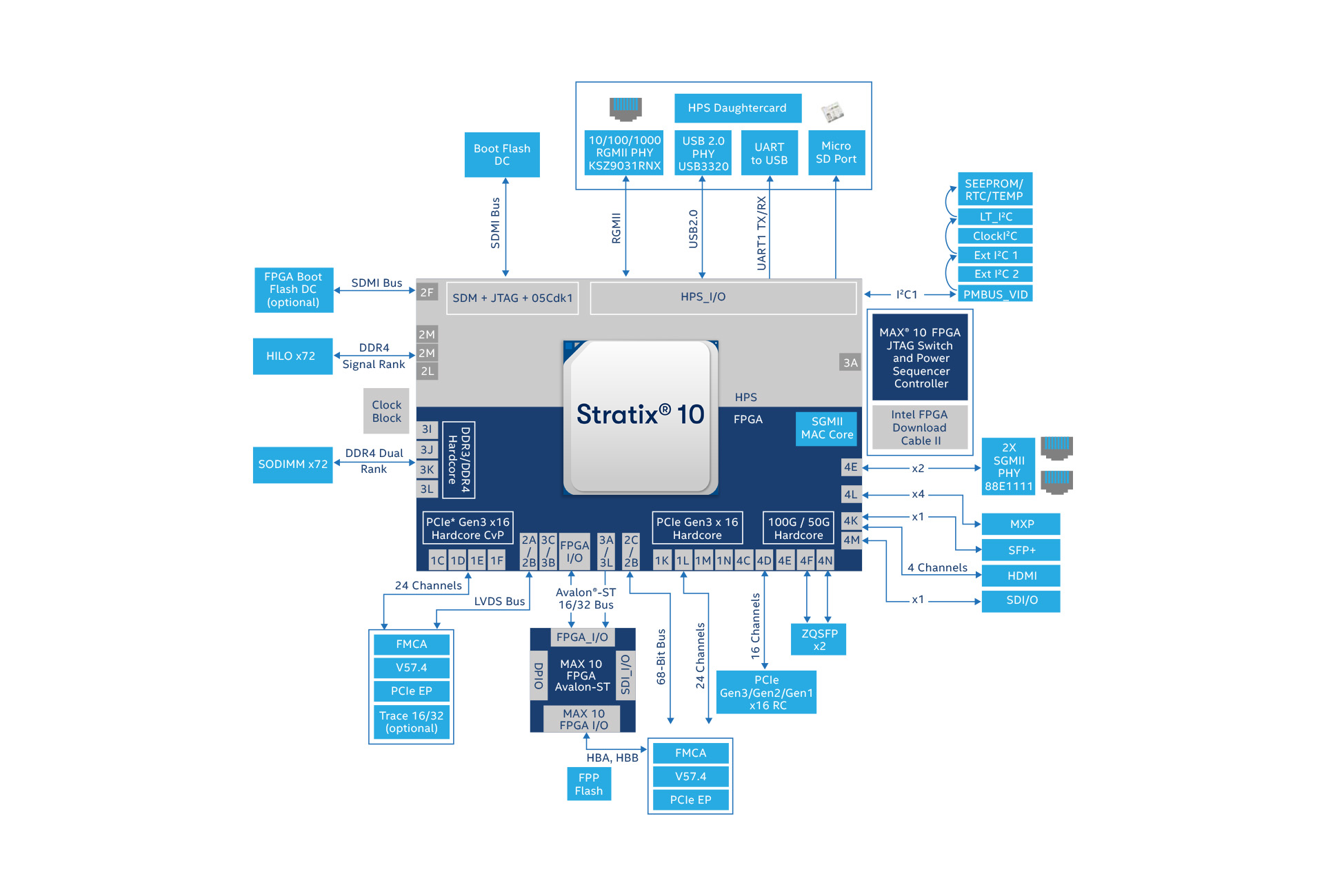

Table 2. Development Kit Contents and Features

What is included

Device

Intel Stratix 10 SX FPGA Devices

  • 1SX280HU2F50E1VGAS
Features and Connectors
  • One HiLo DDR4 memory card (4GB)
  • One DDR4 SODIMM memory card (16GB dual rank)
  • Two HPS peripheral daughter cards (OOBE and NAND)
  • Two FMC loopback cards supporting transceiver, LVDS and single-ended I/Os
  • Two quad small-form-factor pluggable (QSFP28) and one SFP+ port
  • Two FMC+ low-pin count (LPC + 15 transceivers) connector
  • One SFP+ interface
  • PCIe x16 edge connector (via cable - not included)
Cables and Adapters
  • AC adapter power cables
  • Ethernet and USB cables
Software  A one-year license for the Intel® Quartus® Prime Pro Edition design software is available upon purchase of the kit. Refer to the license activation instructions and FAQs.
View all Show less

Table 3. Documentation

 Design Files

Content Description

Quick Start Guide

Documentation summarizing the usage of the development kit and its features.

User Guide Documentation about setting up the development kit and using the included software (Intel® Quartus® Prime and installer package).
Intel® Stratix® 10 FPGA GSRD (Golden System Reference Design) The GSRD page on Rocketboards.org has instructions for getting started on hardware and software designs that utilize the HPS (hard processor system) on Stratix 10 SoC.

Schematics Enpirion Power Tree

Schematics ES (Rev A)

Schematics Production (Rev B)

Latest version of the board schematic for the ES (L-Tile only) and Production (H and L-Tile) kit.

  • The L-Tile and H-Tile Production development kit share the same design

L-Tile ES (18.0 or higher)

L-Tile Production (18.0.1 or higher)

H-Tile Production (19.1 or higher)

A single installation file containing:
  • User Guide - Contains the user guide
  • Design Files - Contains schematics, and layout, Assembly, Bill of Materials
  • Examples - Board Test System: BTS GUI, Power GUI and Clock GUI
  • Examples - Golden Top project for pinout assignments management
  • Examples - Design Examples: Memory, XCVR, GPIO and PCIe 4.0

Download and unzip the Design Files first, then install the Board Test System.

SoC EDS Installer

SoC EDS installer which includes Arm Development Studio (Arm DS) for Intel® SoC FPGAs.

Intel® Quartus® Prime Software The Intel® Quartus® Prime Software Suite provides the provides the necessary tools used for developing hardware and software for Intel® FPGAs. Included in the Intel® Quartus® Prime Software Suite are the Intel® Quartus® Prime Software, the Nios® II EDS, and the Intel® FPGA IP Library.
View all Show less

Table 4. Daughter Cards

Daughter Card Schematic Last Updated
IO48 OOBE Daughter Card Rev A 12/3/17
IO48 NAND Daughter Card Rev A 12/3/17
SDM QSPI Boot Flash Daughter Card Rev A 12/3/17
SDM NAND Boot Flash Daughter Card Rev A 12/3/17
SDM MicroSD Boot Flash Daughter Card Rev A 12/3/17
SDM eMMC Boot Flash Daughter Card Rev A 12/3/17
View all Show less

Note:

Buyer represents that it is a product developer, software developer or system integrator and acknowledges that this product is an evaluation kit that is not FCC authorized, is made available solely for evaluation and software development, and may not be resold.

Additional Resources

Find Boards

Find the right development board for your needs.

Explore Boards

Design Store

Intel® FPGA design examples provide efficient solutions for common design challenges. Visit the Design Store for Intel® FPGAs and RocketBoards.org to learn more.

Support Community

Find solutions, view comments and engage with other Intel® users around the world.

Intel Support Community

Show more Show less
