Intel® Arria® 10 FPGA and SoC FPGA
Highest Performance FPGA and SoC FPGA at 20 nm1
Intel® Arria® 10 FPGA and Soc FPGA delivers more than a speed grade faster core performance and up to a 20% fMAX advantage compared to the competition, using publicly-available OpenCore designs1, and up to 40 percent lower power than previous generation FPGA and SoC FPGA. Intel® Arria® 10 FPGA and Soc FPGA delivers optimal performance, power efficiency and small form factor are ideal for a broad array of applications such as communications, data center, military, broadcast, automotive, and other FPGA midrange applications.
See also: FPGA Design Software, Design Store, Downloads, Community, and Support
Intel® Arria® 10 FPGA and SoC FPGA
Wireless Backhaul Applications
The balance of high-performance and low-power capabilities of Intel® Arria® 10 FPGA and SoC FPGA are ideally suited for wireless base stations, mobile backhaul, and remote radio head designs.
Learn more about our support for wireless communications applications ›
20x10G Optical Transport
As Nx10G and Nx100G transmission equipment becomes more widely deployed, Intel® Arria® 10 FPGA and SoC FPGA provide a path to lower power and system cost.
Learn more about our support for wireline communications applications ›
Wireless Backhaul Applications
The balance of high-performance and low-power capabilities of Intel® Arria® 10 FPGA and SoC FPGA are ideally suited for wireless base stations, mobile backhaul, and remote radio head designs.
20x10G Optical Transport
As Nx10G and Nx100G transmission equipment becomes more widely deployed, Intel® Arria® 10 FPGA and SoC FPGA provide a path to lower power and system cost.
Military RADAR/FlexDAR
Initiatives from the Naval Research Lab and other sources are seeking out new ways to develop flexible, multi-mission RADAR, or 'FlexDAR' capabilities.
Broadcast and Professional Audio-Visual Equipment
Intel® Arria® 10 FPGA and SoC FPGA offers the most power-, space-, and cost-efficient integration of video and image processing including 4K, 3D, and CODECs for the shortest time-to-market for production studio equipment.

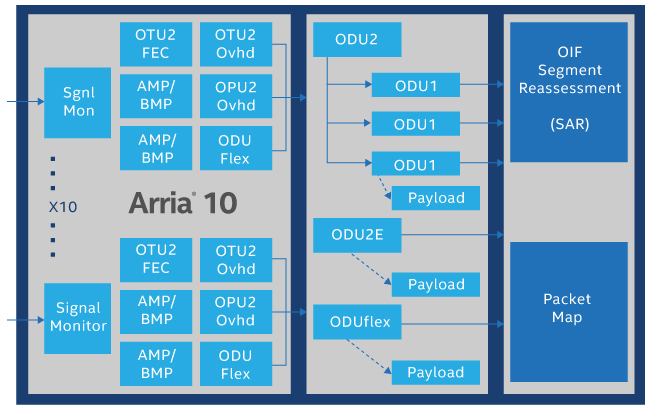

20x10G Optical Transport
As Nx10G and Nx100G transmission equipment becomes more widely deployed, Intel® Arria® 10 FPGA and SoC FPGA provide a path to lower power and system cost. In addition, the up to 53 Mb of embedded RAM, hard silcon intellectual property (IP) for 10G/40G-BASEKR forward error correction (FEC), and broad support for Gigabit Ethernet (GbE) protocols and Interlaken, as well as SoC options for Intel Arria 10 devices provide tools to distinguish your product features in the areas of switching, security, monitoring, self-test, and traffic and policy management.
Learn more about our support for wireline communications applications ›
Intel® Arria® 10 SoC FPGAs Applications
The Intel® Arria® 10 SoCs have been designed to meet the performance, power, and cost requirements for these applications.
Access, Metro and Core
- Target applications: 40G GPON, EPON, FFTH, Switch, 100G/200G NGPON, and 100G Traffic Management.
- Logic functions: Aggregation, Bridging, Switching, Traffic Management, I/O.
- Processor functions: Host Offload, OAM & Link, L2 Switch, I/O, Protocol Control, Chassis Management.
Wireless
Target applications: Remote Radio Head, Mobile Backhaul, Active Antenna, Basestation (BTS), 4G/LTE Marco eNB, 4G/LTE Micro eNB.
Logic functions: RF Processing, Digital Pre-Distortion (DPD), Baseband Interface.
Processor functions: OAM & Link, Digital Pre-Distortion (DPD), L2 Switch, and I/O, Protocol Control.
Broadcast
- Target applications: Pro A/V Equipment, Switcher, Server, Transport, Head End and VoD Multiplexer.
- Logic functions: Video Format Conversion, Multiplexing, Switching, Bridging.
- Processor functions: Audio Processing, Video Compression, Link Management.
Cloud Servers and Storage
- Target applications: Flash Cache, Cloud, Server, Acceleration.
- Logic functions: Flash Cache Processing, Acceleration, SATA/SAS, PCI Express* (PCIe*) Gen3.
- Processor functions: Flash Cache Control, Host Offload, Co-processing and Acceleration Control.
Transmission
- Target applications: NX 100G OTU 4, 2 X OTU 4 and 4 X OTU 4.
- Logic functions: FEC, Aggregation, Muxponding and IO.
- Processor functions: Host Offload, OAM & Link, I/O Control and Chassis Management.
