3.2. GTS CPRI PHY IP Design Example Parameters

Table 8.  GTS CPRI PHY IP Design Example Parameters

Parameter

Values Description

Select design

Single instance of IP core (default),

Four instances of IP core

The design example instantiates a single or four instances of he IP to demonstrate multichannel CPRI PHY.

Simulation

0, 1 (default) When you turn on Simulation, Quartus Prime generates all necessary files required for simulation.

Synthesis

0, 1 (default) When you turn on Synthesis, Quartus Prime generates all necessary files required for synthesis.

Generate file format

Verilog, VHDL

Select the HDL format for the generated IP files in the design example.

For VHDL, only the Platform Designer generated wrapper of various IPs within the design are in VHDL format. The other files such as testbench and design example components remain as Verilog HDL.

Select board

None,

Agilex 5 E-Series 065B Premium Development Kit (ES1)

Select your development kit. If this menu is gray, no board is supported for the options you selected. For example Synthesis is off. If you select a development board, the target device for generation matches the device on the development kit.

Select device initialization clock

OSC_CLK_1_25MHZ

OSC_CLK_1_100MHZ

OSC_CLK_1_125MHZ (default)

This option provides support for device initialization clock setting in the design example. The development kit only supports OSC_CLK_1_125MHZ. If you are using a different development kit board, refer to the specifications of the board and select the correct option from the menu.

Failure to select the correct frequency might give incorrect hardware behavior.

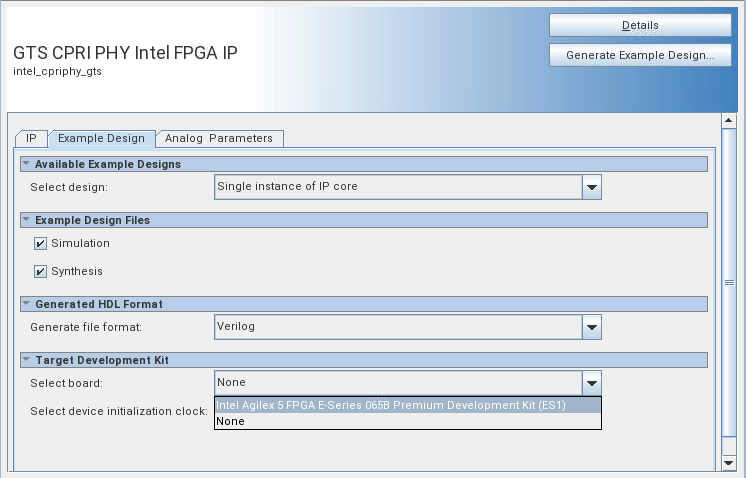

Figure 5. Example Design Tab in IP Parameter Editor
