4.2. Analog Parameters

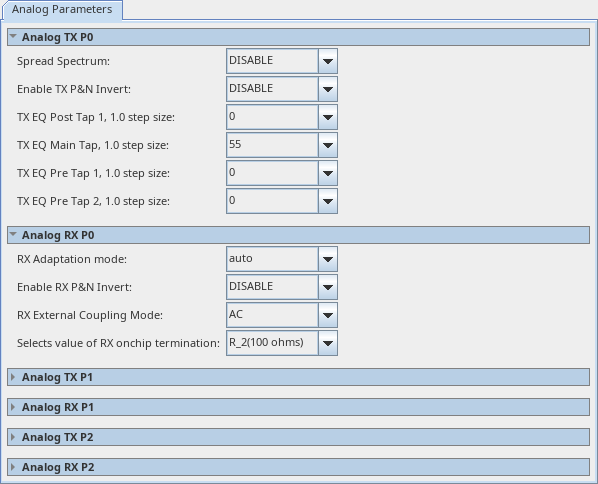

Figure 19. Analog Parameters Tab (NBASE PHY)

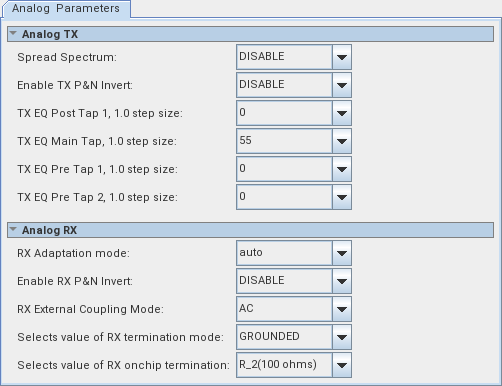

Figure 20. Analog Parameter Tab (MGBASE PHY)
Note: For 1G and 2.5G MGBASE, the RX Adaptation mode is set to manual. For 10G MGBASE, the RX Adaptation mode is set to auto.

For more information on the analog parameter configuration, refer to Configurable Quartus® Prime Software Settings in the GTS Transceiver PHY User Guide.
