2.3. Configuring DQ Pin Swizzling

It is important to strictly follow the pin placement for a given memory topology when assigning pin locations for your EMIF IP.

Do not change the location for the EMIF pin using a .qsf assignment or the pin planner if you need to swap the DQ pins within a DQS group or the DQS group to simplify board design. For example, if you implement a x32 DDR4 interface, the EMIF pin location must adhere to the x32 column in the DDR4 Pin Placement table in the Product Architecture chapter of the External Memory Interfaces Intel Agilex® 7 M-Series FPGA IP User Guide. There is no flexibility to swap the address command pin location.

Example: DQ Pin Swizzling Within DQS group for x32 DDR4 interface

This example uses the lane placement of the following table, with a x8 DQ width.

Table 3.  Lane Placement for a x32 DDR4 Interface
Lane Number BL7 BL6 BL5 BL4 BL3 BL2 BL1 BL0
Default placement GPIO DQS[3] DQS[2] DQS[1] AC[2] AC[1] AC[0] DQS[0]
Table 4.  Example of Swizzling DQ pin in BL0 ( DQS group 0)
Lane Pin Index DDR4 x32 (Default Placement) After Swizzling / Swapping
BL0 11 MEM_DQ[7] MEM_DQ[6]
10 MEM_DQ[6] MEM_DQ[5]
9 MEM_DQ[5] MEM_DQ[7]
8 MEM_DQ[4] MEM_DQ[4]
7
6 MEM_DM_N[0] MEM_DM_N[0]
5 MEM_DQS_C[0] MEM_DQS_C[0]
4 MEM_DQS_T[0] MEM_DQS_T[0]
3 MEM_DQ[3] MEM_DQ[0]
2 MEM_DQ[2] MEM_DQ[2]
1 MEM_DQ[1] MEM_DQ[1]
0 MEM_DQ[0] MEM_DQ[3]

To achieve this swizzling in DQS group 0, you must enter PIN_SWIZZLE_DQS0=3,1,2,0,4,7,5,6; in the User Extra Parameters field of the Additional Parameters tab in the Advanced Parameters section of the General IP Parameters tab in the External Memory Interfaces IP parameter editor.

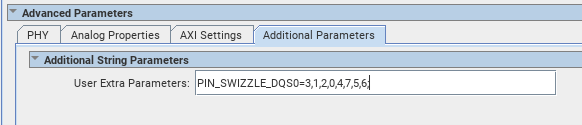

Figure 23. Entering a PIN_SWIZZLE Specification
Table 5.  Example of Swizzling DQ pin in BL5 ( DQS group 2)
Lane Pin Index DDR4 x32 (from table) After Swizzling / Swapping
BL5 71 MEM_DQ[23] MEM_DQ[17]
70 MEM_DQ[22] MEM_DQ[22]
69 MEM_DQ[21] MEM_DQ[21]
68 MEM_DQ[20] MEM_DQ[20]
67
66 MEM_DM_N[2] MEM_DM_N[2]
65 MEM_DQS_C[2] MEM_DQS_C[2]
64 MEM_DQS_T[2] MEM_DQS_T[2]
63 MEM_DQ[19] MEM_DQ[19]
62 MEM_DQ[18] MEM_DQ[18]
61 MEM_DQ[17] MEM_DQ[23]
60 MEM_DQ[16] MEM_DQ[16]

To achieve this swizzling in DQS Group 2, you must enter PIN_SWIZZLE_DQS2=16,23,18,19,20,21,22,17; in the User Extra Parameters field of the Additional Parameters tab in the Advanced Parameters section of the General IP Parameters tab in the External Memory Interfaces IP parameter editor.

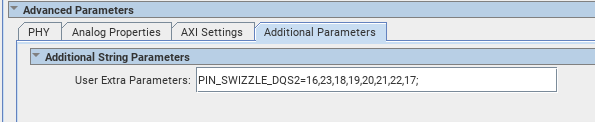

Figure 24. Entering a PIN_SWIZZLE Specification

You can enter multiple specifications in the User Extra Parameters field, each separated by a comma.

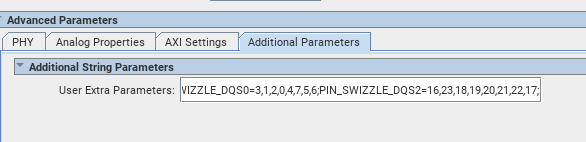

Figure 25. Entering Multiple PIN_SWIZZLE Specifications

Example: Byte Swizzling for a x32 DDR4 interface, implemented with x8 DQS group

Table 6.
Lane Number BL0 BL1 BL2 BL3 BL4 BL5 BL6 BL7
Default Placement DQ[0] AC[0] AC[1] AC[2] DQ[1] DQ[2] DQ[3] GPIO
After Byte Swizzling DQ[2] AC[0] AC[1] AC[2] DQ[1] DQ[0] DQ[3] GPIO
BYTE SWIZZLE 2 X X X 1 0 3 X

This example illustrates swizzling DQS group 0 with DQS group 2. The BYTE_SWIZZLE denotes the DQS group implemented in the lane after the swizzling. X indicates that the lane is not used as a data lane (meaning that it serves as an address/command lane or is not used by the EMIF interface).

To achieve this swizzling, you must enter BYTE_SWIZZLE=2,X,X,X,1,0,3,X”; in the User Extra Parameters field of the Additional Parameters tab in the Advanced Parameters section of the General IP Parameters tab in the External Memory Interfaces IP parameter editor.

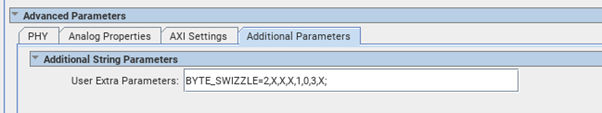

Figure 26. Swizzling DQS group 0 with DQS group 2

Example : Combining Pin and Byte Swizzling

This example combines the two previous examples, entering the following swizzle parameters:

  • PIN_SWIZZLE_DQS0=3,1,2,0,4,7,5,6;
  • PIN_SWIZZLE_DQS2=16,23,18,19,20,21,22,17;
  • BYTE_SWIZZLE=2,X,X,X,1,0,3,X;

The following table shows the resulting pin placement after DQ pin and byte swizzling.

Table 7.  Example of resulting pin placement after DQ pin and byte swizzling
Lane Pin Index Default Effective Pinout
BL5 71 MEM_DQ[23] MEM_DQ[6]
70 MEM_DQ[22] MEM_DQ[5]
69 MEM_DQ[21] MEM_DQ[7]
68 MEM_DQ[20] MEM_DQ[4]
67
66 MEM_DM_N[2] MEM_DM_N[0]
65 MEM_DQS_C[2] MEM_DQS_C[0]
64 MEM_DQS_T[2] MEM_DQS_T[0]
63 MEM_DQ[19] MEM_DQ[0]
62 MEM_DQ[18] MEM_DQ[2]
61 MEM_DQ[17] MEM_DQ[1]
60 MEM_DQ[16] MEM_DQ[3]
BL0 11 MEM_DQ[7] MEM_DQ[17]
10 MEM_DQ[6] MEM_DQ[22]
9 MEM_DQ[5] MEM_DQ[21]
8 MEM_DQ[4] MEM_DQ[20]
7
6 MEM_DM_N[0] MEM_DM_N[2]
5 MEM_DQS_C[0] MEM_DQS_C[2]
4 MEM_DQS_T[0] MEM_DQS_T[2]
3 MEM_DQ[3] MEM_DQ[19]
2 MEM_DQ[2] MEM_DQ[18]
1 MEM_DQ[1] MEM_DQ[23]
0 MEM_DQ[0] MEM_DQ[16]
