1.2.1. CPRI Multirate Design Example Parameters

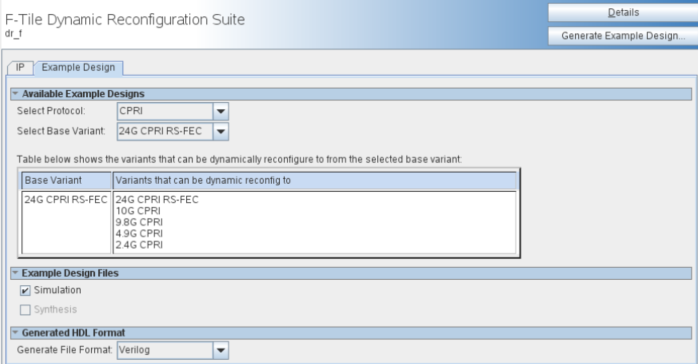

Figure 3. CPRI Multirate Example Design Tab
Table 2.  CPRI Multirate Design Example Parameters
Parameters Value Description
Select Protocol CPRI Select the IP protocol for dynamic reconfiguration.
Select Base Variant 24G CPRI RS-FEC Select the configuration of base variant for dynamic reconfiguration.
Example Design Files Simulation

Synthesis

 Simulation option generates the testbench and compilation-only project. Synthesis option generates the hardware design example.
Generated File Format Verilog Select the HDL files format.
Target Development Kit None

Agilex I-Series Transceiver-SoC Development Kit

Specify the target device for the hardware example design. This option is only available if you select the Synthesis option.
