2.3. Step 3: Compiling and Checking Debug Nodes

  1. Click Compile Design on the Compilation Dashboard.
    Figure 13. Full Compilation Complete
  2. Open the compilation report by clicking Processing > Compilation Report.
  3. Under Table of Contents, find Synthesis > In-System Debugging > Create Partition Boundary Ports.

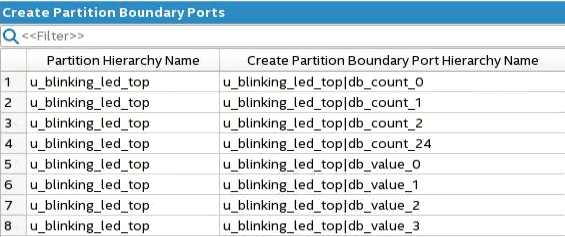

    Figure 14. Create Partition Boundary Ports
