9.1.4. Configuring Build Options for a Project

To configure FPGA-specific build options, perform these steps:

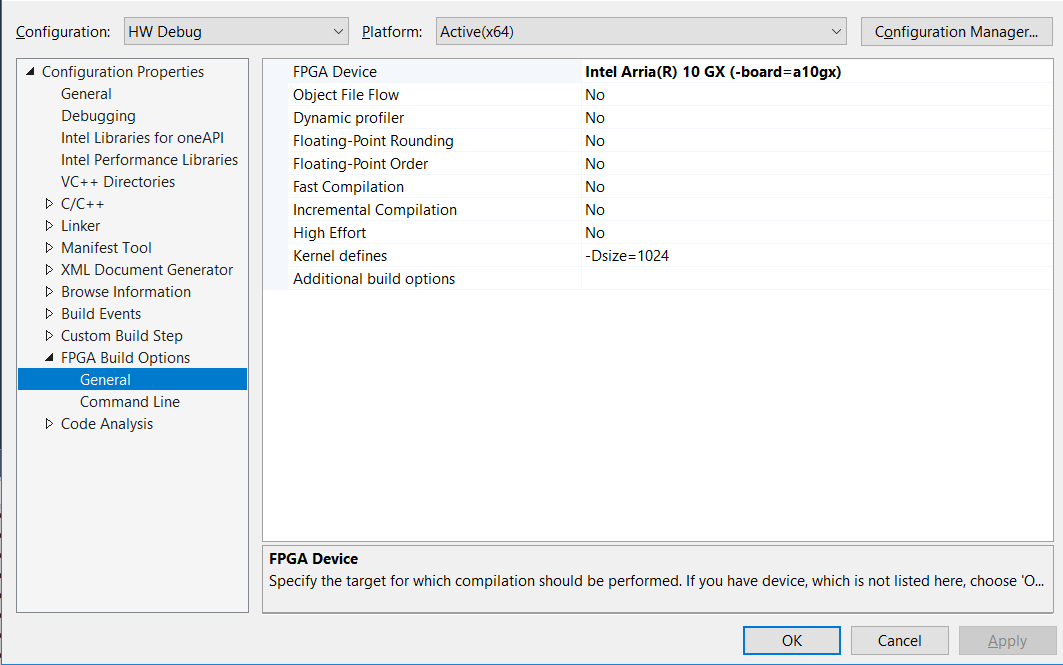

  1. Navigate to Project > Properties > Configuration Properties > FPGA Build Options > General. Build options are displayed.
  2. Modify the build options as you desire.

    For more information about the build options, refer to Compiling Your OpenCL Kernel.
