2.5.1.2. Identifying Routing Congestion with the Chip Planner

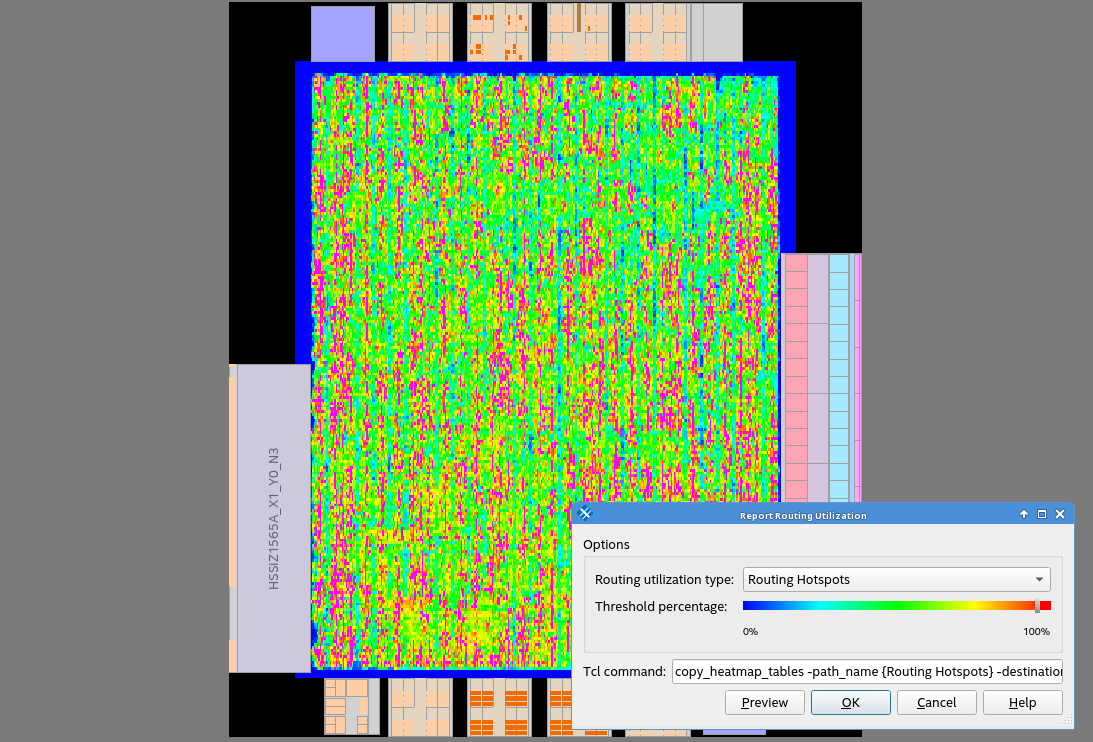

The Chip Planner provides a comprehensive visual overview of device resources, including detailed congestion visualization. This is facilitated by the Report Routing Utilization Task, which presents precise percentages of routing utilization across different utilization types in the current compilation. Utilizing a configurable color scale, it offers a clear representation of congestion levels.

For guidance on configuring the Report Routing Utilization Task, refer to " Viewing Routing Congestion in Chip Planner " in the  Intel Quartus Prime Pro Edition User Guide: Design Optimization .
