AN 775: Generating Initial I/O Timing Data and I/O Element Delays for Altera FPGAs

Download PDF
ID 683103
Date 9/29/2025
Public
Document Table of Contents
Document Table of Contents x
1. Generating Initial I/O Timing Data for Altera FPGAs 2. Generating I/O Element Delay Information for Altera FPGAs
1. Generating Initial I/O Timing Data for Altera FPGAs x
1.1. Step 1: Synthesize a Flip-flop for the Target Altera FPGA Device 1.2. Step 2: Define I/O Standard and Pin Locations 1.3. Step 3: Specify Device Operating Conditions 1.4. Step 4: View I/O Timing in Datasheet Report 1.5. Scripted I/O Timing Data Generation
2. Generating I/O Element Delay Information for Altera FPGAs x
2.1. Step 1: Create Simple Flip-Flop Design 2.2. Step 2: Define I/O Delay Chain and Clock Settings 2.3. Step 3: Specify Device Operating Conditions 2.4. Step 4: View IOE Timing Delay with Report Path 2.5. Scripted IOE Information Generation 2.6. Document Revision History for AN 775: Generating Initial I/O Timing Data and I/O Element Delays for Altera FPGAs
2.4. Step 4: View IOE Timing Delay with Report Path x
2.4.1. Example 1: Viewing the Input Element Delay in Reports 2.4.2. Example 2: Viewing the Output Element Delay in Reports
1. Generating Initial I/O Timing Data for Altera FPGAs
2. Generating I/O Element Delay Information for Altera FPGAs

2.4.1. Example 1: Viewing the Input Element Delay in Reports

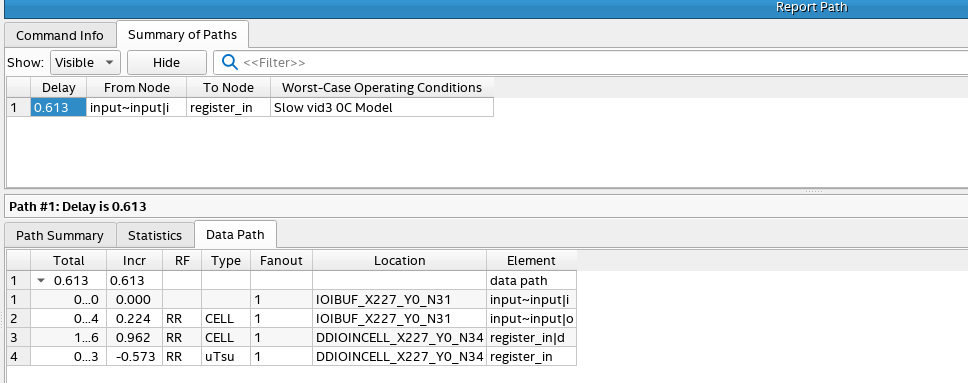

In the following example, Report Path shows the maximum delay of input pin to register for the Slow mode at 0C Model operating condition.

Figure 15. Input Element Delay (Input Delay Chain Setting = 0)
