mkl_?getrfnpi

Performs LU factorization (complete or incomplete) of a general matrix without pivoting.

Syntax

lapack_int LAPACKE_mkl_sgetrfnpi (int matrix_layout, lapack_int m, lapack_int n, lapack_int nfact, float* a, lapack_int lda);

lapack_int LAPACKE_mkl_dgetrfnpi (int matrix_layout, lapack_int m, lapack_int n, lapack_int nfact, double* a, lapack_int lda);

lapack_int LAPACKE_mkl_cgetrfnpi (int matrix_layout, lapack_int m, lapack_int n, lapack_int nfact, lapack_complex_float* a, lapack_int lda);

lapack_int LAPACKE_mkl_zgetrfnpi (int matrix_layout, lapack_int m, lapack_int n, lapack_int nfact, lapack_complex_double* a, lapack_int lda);

Include Files
  • mkl.h
Description

The routine computes the LU factorization of a general m-by-n matrix A without using pivoting. It supports incomplete factorization. The factorization has the form:

A = L*U,

where L is lower triangular with unit diagonal elements (lower trapezoidal if m > n) and U is upper triangular (upper trapezoidal if m < n).

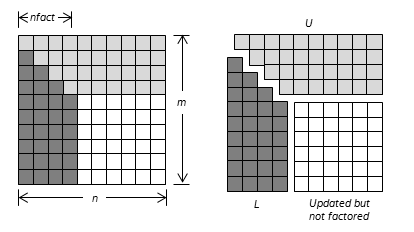

Incomplete factorization has the form:

where L is lower trapezoidal with unit diagonal elements, U is upper trapezoidal, and is the unfactored part of matrix A. See the application notes section for further details.

NOTE:

Use ?getrf if it is possible that the matrix is not diagonal dominant.

Input Parameters

A <datatype> placeholder, if present, is used for the C interface data types in the C interface section above. See C Interface Conventions for the C interface principal conventions and type definitions.

matrix_layout

Specifies whether matrix storage layout is row major (LAPACK_ROW_MAJOR) or column major (LAPACK_COL_MAJOR).

m

The number of rows in matrix A; m 0.

n

The number of columns in matrix A; n 0.

nfact

The number of rows and columns to factor; 0 nfact min(m, n). Note that if nfact < min(m, n), incomplete factorization is performed.

a

Array of size at least lda*n for column major layout and at least lda*m for row major layout. Contains the matrix A.

lda

The leading dimension of array a. lda max(1, m) for column major layout and lda max(1, n) for row major layout.

Output Parameters
a

Overwritten by L and U. The unit diagonal elements of L are not stored.

When incomplete factorization is specified by setting nfact < min(m, n), a also contains the unfactored submatrix . See the application notes section for further details.

Return Values

This function returns a value info.

If info=0, the execution is successful.

If info = -i, the i-th parameter had an illegal value.

If info = i, uii is 0. The requested factorization has been completed, but U is exactly singular. Division by 0 will occur if factorization is completed and factor U is used for solving a system of linear equations.

Application Notes

The computed L and U are the exact factors of a perturbed matrix A + E, with

|E|  c(min(m, n))ε |L||U|

where c(n) is a modest linear function of n, and ε is the machine precision.

The approximate number of floating-point operations for real flavors is

(2/3)n3

If m = n = nfact

(1/3)n2(3m-n)

If m>n = nfact

(1/3)m2(3n-m)

If m = nfact<n

(2/3)n3 - (n-nfact)3

If m = n,nfact< min(m, n)

(1/3)(n2(3m-n) - (n-nfact)2(3m - 2nfact - n))

If m>n > nfact

(1/3)(m2(3n-m) - (m-nfact)2(3n - 2nfact - m))

If nfact < m < n

The number of operations for complex flavors is four times greater.

When incomplete factorization is specified, the first nfact rows and columns are factored, with the update of the remaining rows and columns of A as follows:

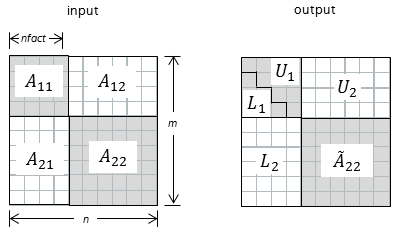

If matrix A is represented as a block 2-by-2 matrix:

where

  • A11 is a square matrix of order nfact,

  • A21 is an (m - nfact)-by-nfact matrix,

  • A12 is an nfact-by-(n - nfact) matrix, and

  • A22 is an (m - nfact)-by-(n - nfact) matrix.

The result is

L1 is a lower triangular square matrix of order nfact with unit diagonal and U1 is an upper triangular square matrix of order nfact. L1 and U1 result from LU factorization of matrix A11: A11 = L1U1.

L2 is an (m - nfact)-by-nfact matrix and L2 = A21U1-1. U2 is an nfact-by-(n - nfact) matrix and U2 = L1-1A12.

is an (m - nfact)-by-(n - nfact) matrix and = A22 - L2U2.

On exit, elements of the upper triangle U1 are stored in place of the upper triangle of block A11 in array a; elements of the lower triangle L1 are stored in the lower triangle of block A11 in array a (unit diagonal elements are not stored). Elements of L2 replace elements of A21; U2 replaces elements of A12 and replaces elements of A22.
