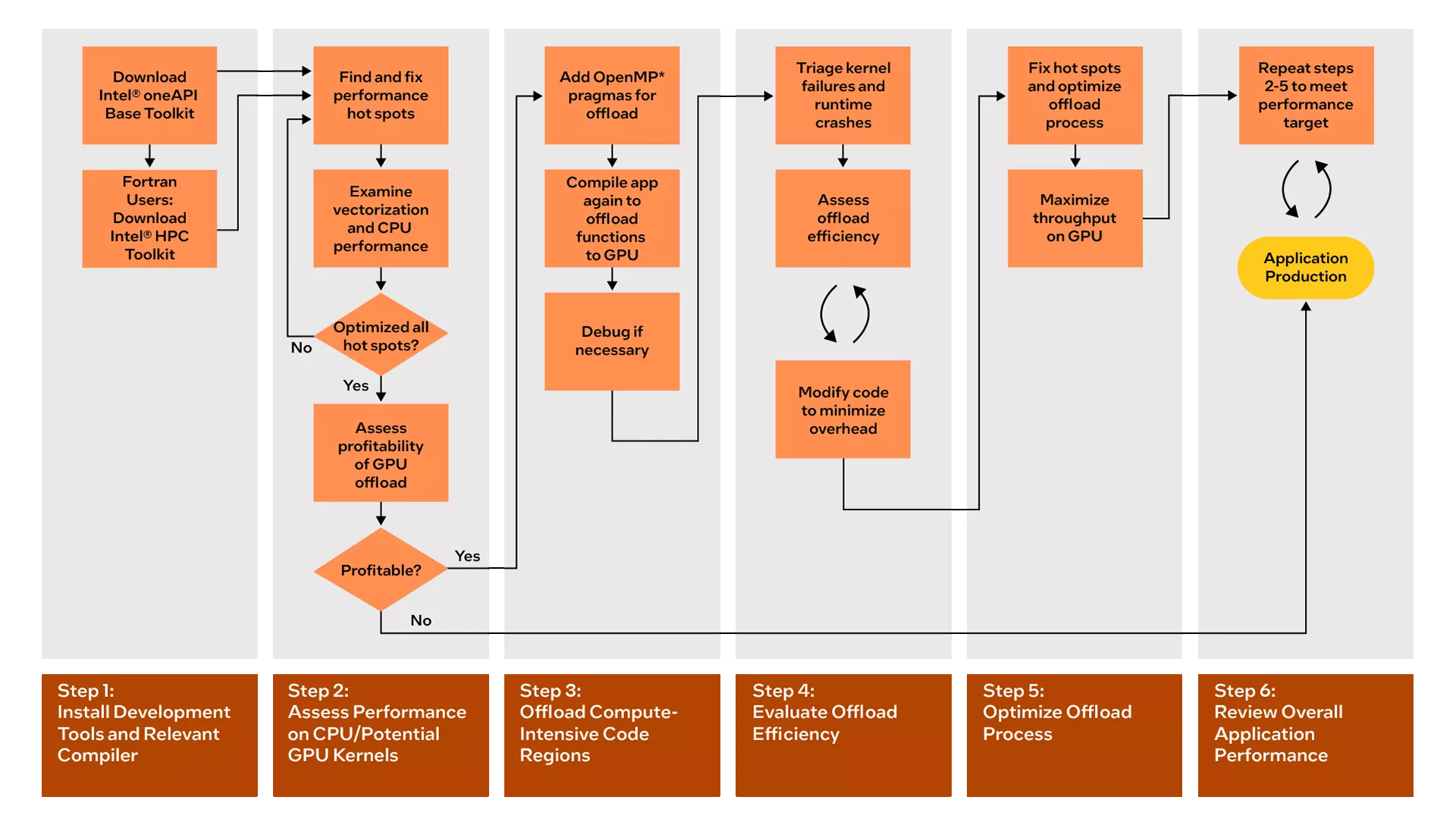

Offload and Optimize OpenMP* Applications with Intel® Tools

Note When working with the command-line interface (CLI), configure the software development toolkits from Intel using environment variables. Learn how to set environment variables.


Learn More

• OpenMP Offload Tuning Guide
• OpenMP Offload Programming Model for C, C++, and Fortran

2.1 Identify the most time-consuming functions in your OpenMP application and analyze their source code. For this purpose, run a Hotspots analysis with Intel VTune Profiler. The insights you gain from a Hotspots analysis are useful for tuning both serial and parallel applications. Improve your code and run the Hotspots analysis again to verify improvement. You may need to finish several tuning cycles in order to achieve desired performance.

Example See how the Hotspots analysis works in the ISO3DFD guided sample..

2.2 Examine the vectorization in your application. Vectorization converts an algorithm from operating on a single value at a time to operating on a set of values (or vectors) simultaneously. See if the vectorized loops in your application provide the benefit you expect. Understand why other loops are not vectorized. Run the Vectorization and Code Insights Perspective in Intel® Advisor.


Example See how the vectorization perspective works in the ISO3DFD guided sample.

Note Optimizing hot spots may require several iterations.

Also estimate the performance of your system against ceilings imposed by the hardware. Find out the maximum performance you can achieve with your current hardware resources. Run the CPU/Memory Roofline Insights Perspective in Intel® Advisor.

2.3 Once your application performs satisfactorily on the CPU, find out what parts of your application are worth offloading. Use the Offload Modeling Perspective in Intel® Advisor. This perspective measures and compares the performance of your application against modeled performance on an Intel GPU, without making use of the actual GPU or requiring any change to your code. To understand code behavior as well as the nature of the offload process, first offload some simple pieces of code.

If you do not observe satisfactory results with Offload Modeling Perspective, your application may not benefit from a GPU offload operation. In other words, the offload is not really profitable. This may be a good stopping point.

Example See how the Offload Modeling perspective works in the ISO3DFD guided sample.

Tip To identify pieces of code that are the most profitable for offload, use the Offload Modeling Perspective with multiple workloads of varying sizes.

Learn More

• Hotspots Analysis in Intel VTune Profiler
• Vectorization Perspective in Intel Advisor
• Vectorization Resources
• CPU and Memory Roofline Insights Perspective in Intel Advisor
• Offload Modeling Resources
• A cookbook recipe to demonstrate the Offload Modeling process
• A cookbook recipe to estimate the speedup of a C++ application on an Intel GPU

In this phase:


3.1 Add OpenMP pragmas to these loops and functions for memory movement and offload. To understand and use OpenMP directives, see the OpenMP Offload Tuning Guide.

3.2 To offload the OpenMP code onto Intel GPUs, recompile the application using these compiler options:

-fiopenmp -fopenmp-targets=spir64

These options are valid for C, C++, and Fortran code. The Intel compiler converts your application into an intermediate language representation called SPIR-V. The compilation process saves the SPIR-V version of your code in the binary generated. When you run your code, the just-in-time compiler translates the SPIR-V code into the appropriate assembly code for the target offload device.

If necessary, debug application crashes or incorrect output (compared to nonoffloaded output). To troubleshoot your application, use OneTrace and Intel® Distribution for GDB* until you get the expected results.

Example See how offloading works in the ISO3DFD guided sample.


Learn More

• Offloading Intel® oneAPI Math Kernel Library (oneMKL) Computations onto the GPU
• OpenMP Offload Tuning Guide
• Training Modules to Learn the Basics of OpenMP Offload
• Troubleshoot Highly Parallel Applications
• Debug the DPC++ and OpenMP* Offload Process
• Get Started with Intel Distribution for GDB: Windows* Host | Linux* Host
• OneTrace Application

4.1 The OpenMP offloading runtime libraries have a provision to handle basic profiling of your OpenMP application. Before you begin the offload process, use this profiling capability to understand aspects of the execution of your application including:

• Kernel creation
• Thread resource allocation
• Data transfer
• Kernel naming
• Kernel execution time

To enable the basic profiling feature, set this variable:

export LIBOMPTARGET_PLUGIN_PROFILE=T

Optionally, you can also collect debugging information by setting this variable:

export LIBOMPTARGET_DEBUG= 1 | 2 | 3 | 4

Note Collecting debugging information this way can generate a very large output. You may need to redirect stdout and stderr to a file.

A higher number for this variable corresponds to higher verbosity.

For a quick triage, generate trace reports with the OneTrace application. Use these reports to determine:

• Data transfer times
• Kernel running times
• Overhead associated with the offload process

4.2 To improve your understanding of GPU issues you identified in the previous step, in Intel VTune Profiler, run the GPU Offload Analysis.

4.3 With inferences from the GPU Offload Analysis, modify your code to minimize the overhead associated with data transfer and offload. Run a few cycles of this analysis to maximize computations on the CPU and GPU

Tip When modifying your code, for guidance, use the OpenMP Offload Tuning Guide.

Example See how the GPU Offload Analysis works in the ISO3DFD guided sample.

Learn More

• Compile and Run an OpenMP Application
• Information about OpenMP Offloading Runtime Libraries
• OneTrace Application
• Methodology Recipe on Software Optimization for Intel GPUs
• GPU Offload Analysis in Intel VTune Profiler
• A Recipe on Profiling an OpenMP Offload Application

5.1 Identify performance hot spots caused by memory latency or inefficient kernel algorithms. Locate the most time-consuming kernels, understand the causes for their behavior, and resolve them. Use the GPU Compute/Media Hotspots analysis in Intel VTune Profiler to further enhance your understanding of GPU usage. Run this analysis and focus on these aspects, which can have a profound impact on GPU performance:

• X^e Vector Engine (XVE) occupancy
• Cache utilization
• XVE stalls
• Basic block latency
• Memory latency
• Energy consumption by GPU (for certain devices)


Example See how the GPU Compute/Media Hotspots analysis works in the ISO3DFD guided sample.

5.2 Measure the performance of your CPU and GPU against performance ceilings imposed by your hardware. Where in the pipeline should you focus your attention in order to maximize throughput on the CPU and GPU? To answer this question, run the GPU Roofline Insights perspective in Intel Advisor.

The results can help you understand the maximum performance you can expect from both your CPU and GPU in the current hardware environment. If critical kernels still display as hot spots, see if memory bandwidth or compute capacity are limiting their performance. Optimize these kernels accordingly.

Example See how the GPU Roofline Insights perspective works in the ISO3DFD guided sample.


Learn More

• GPU Compute/Media Hotspots Analysis in Intel VTune Profiler
• GPU Roofline Insights Perspective in Intel Advisor
• Resources on the GPU Roofline Insights Perspective
• Optimize Your GPU Application with the Base Kit
