Elkhart Lake
To support the next generation of IoT edge devices, Intel has developed a new line of processors enhanced for IoT—The Intel Atom® x6000E Series, Intel® Pentium®, and Intel® Celeron® N and J Series processors. These processors build on new levels of CPU, and graphics performances with integrated IoT features, real-time performance, manageability, security, and functional safety.
Read the platform brief.
Key features on Elkhart Lake
- Performance Up to a 1.7x improvement in single-thread performance and up to a 1.5x improvement in multi-thread performance generation over generation. Up to 2x performance improvement in graphics over previous generation. 1
- Graphics Take a huge leap forward in graphics capabilities with Intel® UHD Graphics. With the ability to drive a maximum resolution of 4kp60 on up to three simultaneous displays, it is a first for this family of processors.
- Integration and flexibility Leverage a dedicated offload engine with the Intel® Programmable Services Engine (Intel® PSE). Powered by an Arm* Cortex-M7 microcontroller, it provides independent, low-DMIPs computing and low-speed I/Os for IoT applications. It also hosts new functions like remote, out-of-band device management, network proxy, embedded controller, and sensor hub.
- Remote device management Monitor and manage devices using in-band capability through Wi-Fi or wired ethernet to perform remote firmware and software updates. When OS is unresponsive, use out-of-band manageability through wired ethernet.
- Meet functional safety requirements: The Intel® Safety Island With functional safety capabilities integrated into the silicon, the Intel Atom® x6000FE Series industrial processors meet IEC 61508 and ISO 13849 requirements (SIL2/Cat.3 PL d certified, SIL3/Cat.4 PL e capable) for functional safety. You can download the certificate here
- Integrated connectivity Easily provide high speed connectivity with three integrated 2.5GbE MAC's all with time sensitive networking (TSN) capability.

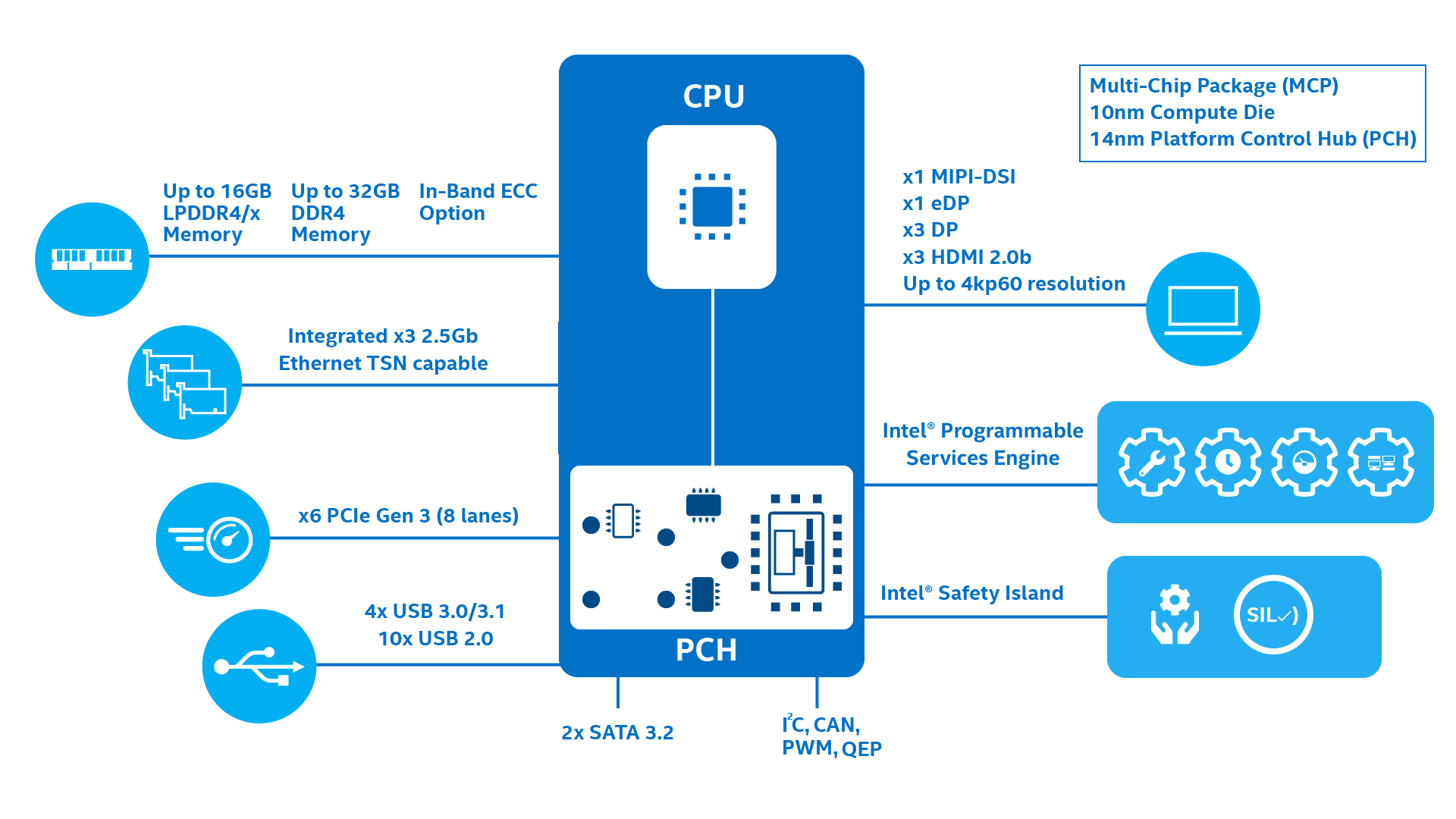

Topline specifications
- Up to 3.0 GHz max frequency
- 4.5-12W TDP
- LPDDR4/x-4267, DDR4-3200 memory
- In-band error correction code with standard memory
- Intel® UHD Graphics, 4kp60 on three simultaneous displays
- Intel® Programmable Services Engine, dedicated offload engine
- In-band and out-of-band remote device manageability
- Functional safety with Intel® Safety Island (Intel® SI) (on select SKUs)
- Hardware-based security
What you can do with Elkhart Lake
Industrial automation
Industrial systems often operate in an “always on” state, requiring high levels of reliability and uptime that require making operations smarter, more connected, and more autonomous.
Retail
Enable capabilities such as facial recognition for authentication at ATMs or intelligent vending machines, object detection for cashier-free checkout, people counting, and audience analytics.
Smart city IoT solutions from Intel
Put data to work to enable environmental monitoring, smart lighting, mobility, public kiosks, and other solutions for smart cities. Intel® technologies, including AI, vision, and connectivity, deliver exceptional performance from edge to cloud.
Healthcare
Leading hospitals are using data analytics, machine learning, and artificial intelligence to identify which patients are most at risk so they can respond more swiftly to life-threatening events.
Platform components for Elkhart Lake
Processors specifications2
Processor |
Cores |
Cache (MB) |
CPU high frequency mode |
CPU burst (Turbo) mode |
Graphics high frequency mode |
Graphics burst (Turbo) mode |
Max TDP |
In-band ECC |
Intel® Time Coordinated Computing (Intel® TCC) |
Functional safety (FuSa) |
Processor ordering code |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Intel Atom® x6214RE Processor | 2 | 1.5 | 1.4GHz | N/A | 400MHz | N/A | 6W | Yes | Yes | No | FH8070304289531 |
| Intel Atom® x6416RE Processor | 4 | 1.5 | 1.7GHz | N/A | 450MHz | N/A | 9W | Yes | Yes | No | FH8070304289532 |
Intel Atom® x6211E Processor |
2 |
1.5 |
1.3GHz |
3.0GHz |
350MHz |
750MHz |
6W |
Yes |
No |
No |
FH8070304243807 |
Intel Atom® x6413E Processor |
4 |
1.5 |
1.5GHz |
3.0GHz |
500MHz |
750MHz |
9W |
Yes |
No |
No |
FH8070304243865 |
Intel Atom® x6425E Processor |
4 |
1.5 |
2.0GHz |
3.0GHz |
500MHz |
750MHz |
12W |
Yes |
No |
No |
FH8070304243808 |
Intel Atom® x6212RE Processor |
2 |
1.5 |
1.2GHz |
N/A |
350MHz |
N/A |
6W |
Yes |
Yes |
No |
FH8070304289568 |
Intel Atom® x6414RE Processor |
4 |
1.5 |
1.5GHz |
N/A |
400MHz |
N/A |
9W |
Yes |
Yes |
No |
FH8070304289591 |
Intel Atom® x6425RE Processor |
4 |
1.5 |
1.9GHz |
N/A |
400MHz |
N/A |
12W |
Yes |
Yes |
No |
FH8070304289558 |
Intel Atom® x6427FE Processor |
4 |
1.5 |
1.9GHz |
N/A |
400MHz |
N/A |
12W |
Yes |
Yes |
Yes |
FH8070304289690 |
Intel Atom® x6200FE Processor |
2 |
1.5 |
1.0GHz |
N/A |
N/A |
N/A |
4.5W |
Yes |
Yes |
Yes |
FH8070304289582 |
Processors specifications2
Processor |
Cores |
Cache (MB) |
CPU high frequency mode |
CPU burst (Turbo) mode |
Graphics high frequency mode |
Graphics burst (turbo) mode |
Max TDP |
In-Band ECC |
Intel® Time Coordinated Computing (Intel® TCC) |
Functional Safety (FuSa) |
Processor ordering code |
|---|---|---|---|---|---|---|---|---|---|---|---|
Intel® Celeron® Processor J6413 |
4 |
1.5 |
1.8GHz |
3.0GHz |
400MHz |
800MHz |
10W |
No |
No |
No |
DC8070304190822 |
Intel® Celeron® Processor J6412 |
4 |
1.5 |
2.0GHz |
2.6GHz |
400MHz |
800MHz |
10W |
No |
No |
No |
DC8070304190881 |
Intel® Pentium® Processor J6426 |
4 |
1.5 |
2.0GHz |
3.0GHz |
400MHz |
850MHz |
10W |
No |
No |
No |
DC8070304190882 |
Intel® Celeron® Processor N6211 |
2 |
1.5 |
1.2GHz |
3.0GHz |
250MHz |
750MHz |
6.5W |
No |
No |
No |
DC8070304190819 |
Intel® Celeron® Processor N6210 |
2 |
1.5 |
1.2GHz |
2.6GHz |
250MHz |
750MHz |
6.5W |
No |
No |
No |
DC8070304190883 |
Intel® Pentium® Processor N6415 |
4 |
1.5 |
1.2GHz |
3.0GHz |
350MHz |
800MHz |
6.5W |
No |
No |
No |
DC8070304190820 |
Category |
Operating system (targeted for support) |
Implementation |
Distribution and support |
|---|---|---|---|
Microsoft* |
Windows* 10 IoT Enterprise (64-bit) |
Intel |
Intel, Microsoft* |
Linux* |
Yocto Project* BSP tool-based embedded Linux distribution (64-bit) |
Intel |
Yocto Project* and ISV Partners |
Linux* Distribution: Ubuntu* (64-bit) |
Canonical* |
Canonical* |
|
Wind River* Linux LTS distribution (64-bit) |
Wind River* |
Wind River* |
|
Android* |
Android* 10 (64-bit)3 |
Intel |
ISV Partners |
RTOS |
Wind River VxWorks* 7 |
Wind River* |
Wind River* |
Partner solutions briefs
Product and Performance Information
Source: Intel. Claims based on a) SPEC CPU 2006 metric estimates based on Pre-Si projections and b) 3DMark11 estimates based on Pre-Si projections, using Intel® Pentium® J4205 as prior gen.
Configurations:
Performance results are based on projections as of September 1st, 2020
Processor: Intel® Pentium® J6425 PL1=10W TDP, 4C4T Turbo up to 3.0GHz
Graphics: Intel Graphics Gen 11 gfx
Memory: 16GB LPDDR4-3200
OS: Windows* 10 Pro
Compiler version: IC18
Processor: Intel® Pentium® J4205 PL1=10W TDP, 4C4T Turbo up to 2.6GHz
Graphics: Intel Graphics Gen 9 gfx
Memory: 16GB LPDDR4-2400
OS: Windows* 10 Pro
Compiler version: IC18
Performance numbers are Pre-Si projections and are subject to change. Results reported may need to be revised as additional testing is conducted. The results depend on the specific platform configurations and workloads utilized in the testing, and may not be applicable to any particular user’s components, computer system or workloads. The results are not necessarily representative of other benchmarks.
Performance varies by use, configuration and other factors. Learn more at www.Intel.com/PerformanceIndex.
Performance results are based on testing as of dates shown in configurations and may not reflect all publicly available updates. See backup for configuration details. No product or component can be absolutely secure.
SPEC®, SPECrate® and SPEC CPU® are registered trademarks of the Standard Performance Evaluation Corporation. See http://www.spec.org/spec/trademarks.html
for more information.
Results that are based on systems and components as well as results that have been estimated or simulated using an Intel Reference Platform (an internal example new system), internal Intel analysis or architecture simulation or modeling are provided to you for informational purposes only. Results may vary based on future changes to any systems, components, specifications or configurations.
Not all features available on every SKU
Android 10 (64-bit) availability to be determined.
