Triple-Speed Ethernet FPGA IP

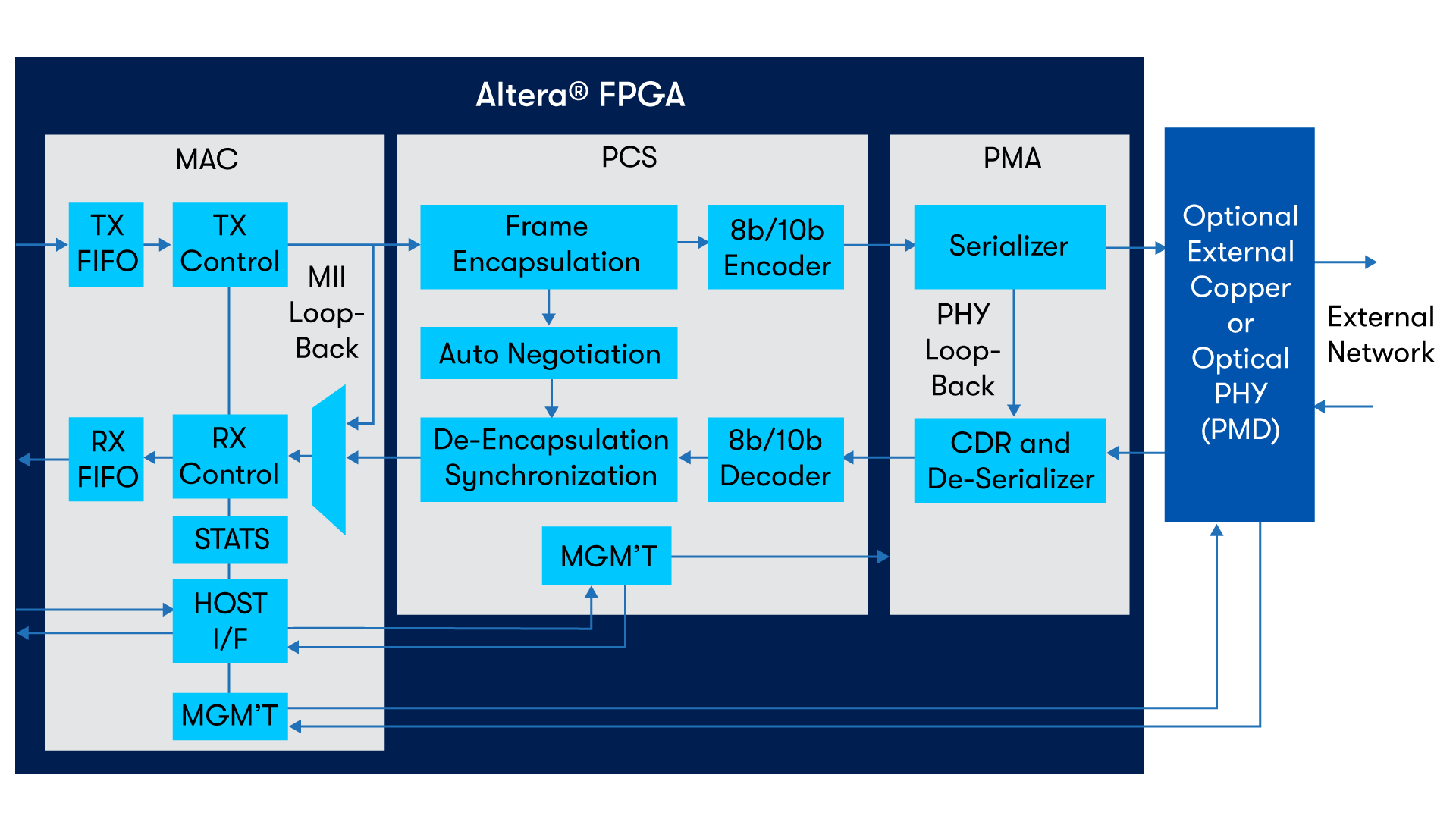

The Triple-Speed Ethernet FPGA IP core consists of a 10/100/1000 Mbps Ethernet media access control (MAC) and physical coding sublayer (PCS) Intellectual Property (IP). This IP function enables FPGAs to interface to an external Ethernet PHY device, which interfaces to the Ethernet network.

This IP is offered in MAC-only mode or MAC+PHY mode.

  • In MAC-only mode, the IP uses an external PHY chip to do signaling. The two supported interfaces to the external PHYs are GMII (8-bit interface at 125 MHz SDR) and RGMII (4-bit interface at 125 MHz DDR).
  • In the MAC+PHY mode, the PHY is realized using on-chip transceivers or LVDS I/O with dynamic phase alignment (DPA) logic that can operate up to 1.25 Gbps. SGMII or 1000Base-X protocol is used in this case. The usage of LVDS I/Os enables very scalable multiport gigabit Ethernet (GbE) system designs while saving the serial transceivers for higher performance protocols.
  • Key Features
  • Documentation
  • Ordering Information

Features

  • Complete 10/100/1000 Mbps Ethernet IP with all the necessary IP modules
  • 10/100/1000 Mbps MAC, PCS, and PMA
  • Flexible IP options
  • MAC only, PCS only, MAC + PCS, MAC + PCS + PMA, PCS + PMA
  • Many options for various applications and sizes as small as 900 logic elements (small-MAC)
  • Standard-based statistics counters supporting simple network management protocol (SNMP) Management Information Base (MIB and MIB-II) and Remote Network Monitoring (RMON)
  • Parameterizable FIFO or FIFO-less MAC options
  • IEEE 1588 v2 high accuracy and high precision time stamping option in hardware IP
  • 1-step and 2-step time sync
  • Supports IEEE 1588 v2 PTP packet encapsulation in IPv4, IPv6, and Ethernet
  • Real time of day clock generator (ToD) IP in design example
  • Many external Ethernet interface options for various FPGA families
  • MII (10/100 Mbps), GMII, RGMII, and SGMII (10/100/1000 Mbps), 1000BASE-X, and TBI (1 Gbps)
  • Management data I/O (MDIO) for external PHY device management

Additional Resources

Find IP

Find the right Altera® FPGA Intellectual Property core for your needs.

Technical Support

For technical support on this IP core, please visit Support Resources or Intel® Premier Support. You may also search for related topics on this function in the Knowledge Center and Communities.

IP Evaluation and Purchase

Evaluation mode and purchasing information for Altera® FPGA Intellectual Property cores.

IP Base Suite

Free Altera® FPGA IP Core licenses with an active license for Quartus® Prime Standard or Pro Edition Software.

Design Examples

Download design examples and reference designs for Altera® FPGA devices.

Contact Sales

Get in touch with sales for your Altera® FPGA product design and acceleration needs.

Show more Show less

User Guides and Design Example User Guides

Agilex™ 3 and Agilex™ 5

FPGAs and SoCs

 Agilex™ 7 FPGA Stratix® 10 FPGA
  • User Guide
  • Design Example User Guide
  • User Guide (F-Tile)
  • Design Example User Guide (F-Tile)
  • Design Example User Guide
  • Design Example User Guide
View all Show less

Related Links

Triple Speed Ethernet FPGA IP User Guide

Triple-Speed Ethernet FPGA IP Release Notes

MAX® 10 FPGA – Single-Port Triple Speed Ethernet and Onboard PHY Chip Design Example

AN 647: Single-Port Triple Speed Ethernet and On-Board PHY Chip Reference Design

AN 744: Scalable Triple Speed Ethernet Reference Design for Arria® 10 Devices

AN 746: SDI II Triple-Rate Reference Designs for Arria® 10 Devices

AN 830: Triple-Speed Ethernet and On-Board PHY Chip Reference Design for Stratix® 10 Devices

IP Ordering Code Primary
Triple-Speed Ethernet IP-TRIETHERNET

DigiKey

Mouser

IEEE 1588v2 for Triple-Speed Ethernet IP-TRIETHERNETF

DigiKey

Mouser

View all Show less
