Stratix® 10 GX FPGA Development Kit
Stratix® 10 GX FPGA Development Kit delivers a complete design environment that includes all hardware and software you need to start taking advantage of the performance and capabilities available in Stratix® 10 GX FPGAs for your design needs.
Use the Stratix® 10 GX FPGA Development Kit to:
- Develop and test PCI Express* (PCIe) 3.0 designs using the PCI-SIG-compliant development board.
- Develop and test memory subsystems consisting of DDR4, DDR3, QDR IV, and RLDRAM III memories.
- Develop modular and scalable designs by using the FPGA mezzanine card (FMC) connectors to interface to a FMC mezzanine card provided by our partners and supporting protocols, such as JESD204B, Serial RapidIO, 10 Gbps Ethernet (10GbE), SONET, Common Public Radio Interface (CPRI), OBSAI, and many others.

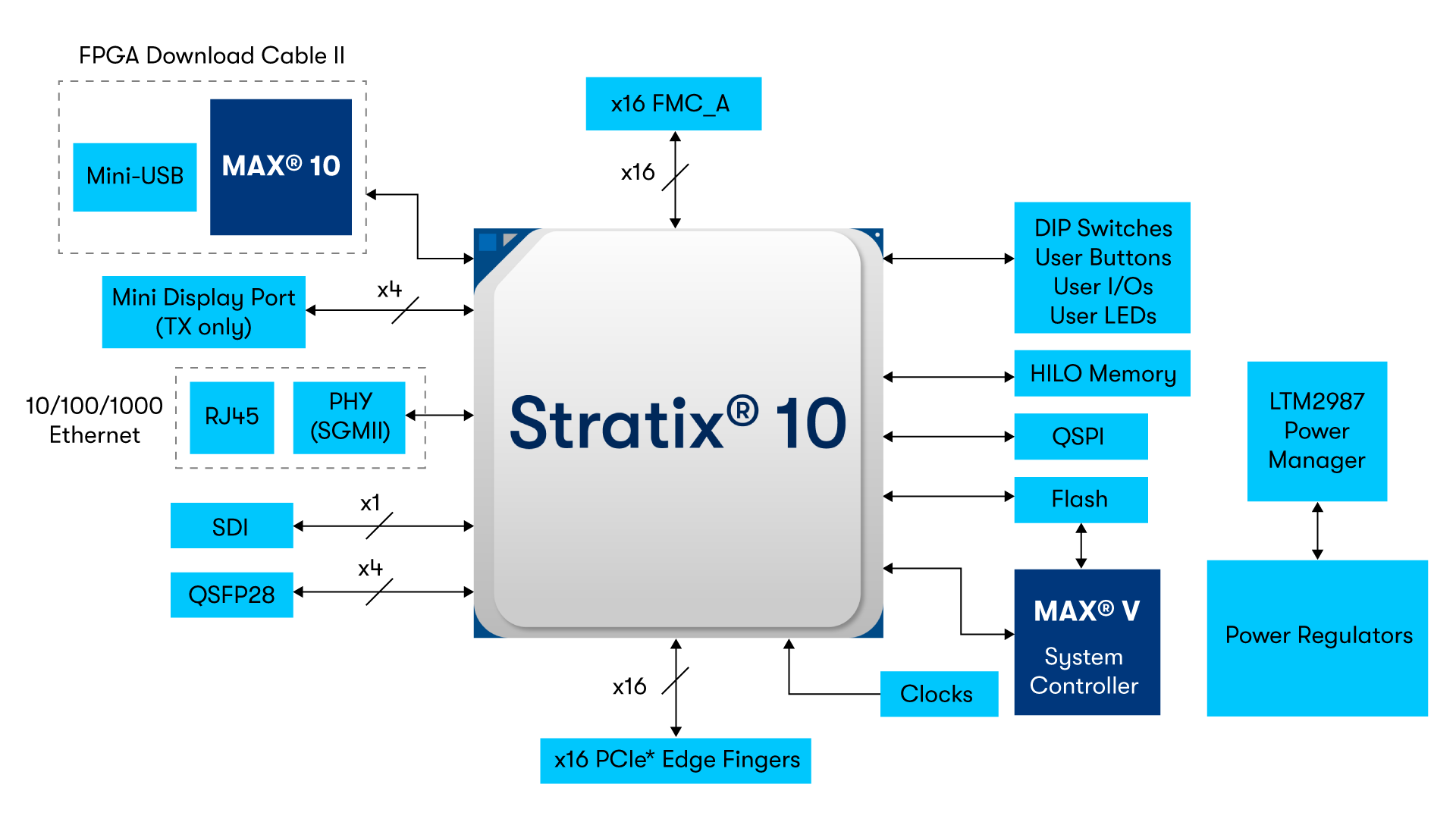

Table 2. Development Kit Contents and Features
What is included |
|
|---|---|
| Device | H-Tile 1SG280HU2F50E2VG |
| Form Factor | PCIe x16 edge connector |
| Features and Connectors | FMC loopback card supporting transceiver, LVDS and single-ended I/Os One FMC low-pin count (LPC + 15 transceivers) connector Serial digital interface (SDI) channel |
| DDR Memory | 1 GB DDR4 SDRAM, 2GB DDR3 SDRAM, and RLDRAM3 (16 Meg x 36) daughtercards |
| (QSFP) Cages | One quad small-form-factor pluggable (QSFP) cage |
| Cables and Adapters | AC adapter, power, ethernet and USB cables |
| Software | A one-year license for the Quartus® Prime Pro Edition design software is available upon purchase of the kit. Refer to the license activation instructions and FAQs. |
Table 3. Documentation
| Design Files | Content Description |
|---|---|
| Quick Start Guide |
Documentation summarizing the usage of the development kit and its features |
| User Guide | Documentation about setting up the development kit and using the included software (Quartus® Prime and installer package) |
Installer Package H-Tile ES (17.1) H-Tile Production (23.3 or higher) |
A single installation file containing:
Download and unzip the Design Files first, then install the Board Test System. |
| Board Schematic |
Note:
Buyer represents that it is a product developer, software developer or system integrator and acknowledges that this product is an evaluation kit that is not FCC authorized, is made available solely for evaluation and software development, and may not be resold.
