Cyclone® 10 LP FPGA Evaluation Kit

Developers and makers are invited to discover the flexibility of a low-power programmable gate array. The Cyclone® 10 LP Evaluation Kit provides an easy-to-use platform for evaluating Cyclone® 10 LP FPGA technology.

  • Overview

With this evaluation board, you can:

  • Develop designs for Cyclone® 10 LP FPGA devices.
  • Bridge to functions or devices via Arduino UNO R3 shields, PMOD, GPIO or Ethernet connectors.
  • Measure key Cyclone® 10 LP FPGA power supplies.
  • Reuse the kit's PCB schematic and design files to start your design quickly.

Table 1. Ordering Information

Ordering Code Check Distributor Availability Device
EK-10CL025U256

Mouser

DigiKey

10CL025YU256I7G
View all Show less

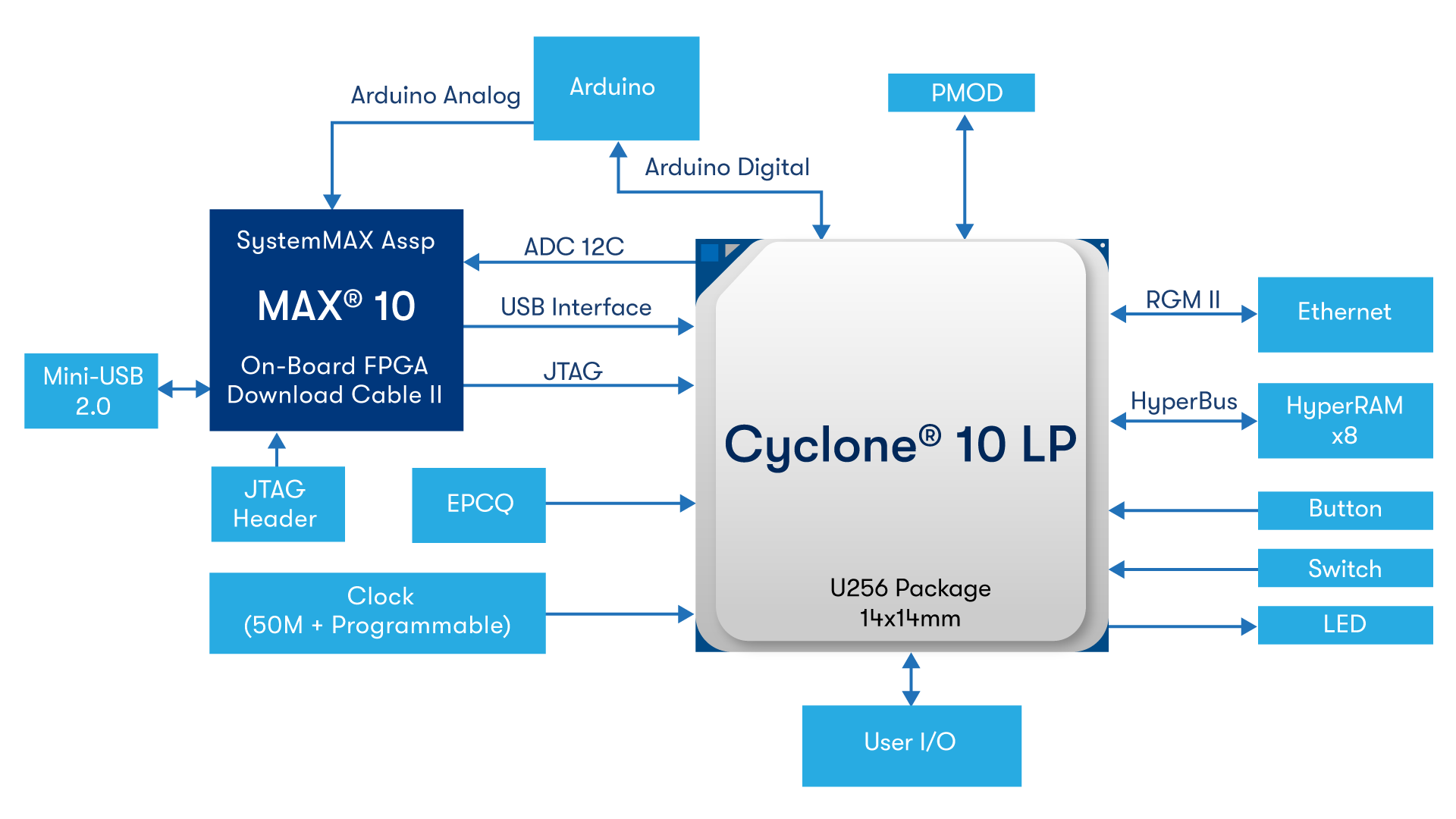

Table 2. Development Kit Contents and Features

Parameters Hardware
Device
  • Cyclone® 10 LP FPGA 10CL025YU256I7G with 25K Les
  • MAX® 10 FPGA 10M08SAU169C8G pre-programmed System Manager ASSP functions (Not programmable by the user)
Features and Connectors
10/100/1000Mbps Ethernet
  • Intel XWAY PHY11G PEF7071
  • RGMII Interface to Cyclone® 10 LP FPGA (as MAC),
  • Triple speed ethernet MAC supported from Quartus® Prime version 17.1 onwards
  • MDC/MDIO as management interface
  • RJ-45 for Ethernet Cable
12-pin Digilent Pmod* Compatible connector Refer Pmod* Compatible expansion cards
Arduino Interface
  • Compatible with Arduino UNO R3
  • Arduino Shields can be used on this Arduino Interface
User GPIOs
  • 2x20 expansion GPIO header with 36 GPIO signals brought out to a 100mil header
  • Single-end IO with 3.3 VCCIO
DDR Memory
HyperRAM*
  • 128Mbit 8-bit width HyperRAM memory
  • 100 MBs throughput @ only 400 LE's and 12 I/O
  • Open Core license available for evaluation
  • HyperBus Memory Controller IP by Synaptic Labs
Cables and Adapters AC adapter power cables, On-board USB Blaster II Programming
View all Show less

Table 3. Documentation

Design Files Content Descriptions
Kit Collateral (zip) › A single installation file containing:
  • User Guide - Contains the user guide
  • Design Files - Contains schematics, and layout, Assembly, Bill of Materials
  • Board Test System: BTS GUI, Power GUI and Clock GUI
  • Golden Top project for pinout assignments management
  • Design Examples: Memory, XCVR, GPIO and PCIe 4.0
Download and unzip the Design Files first, then install the Board Test System. Note: You will need to install Quartus® Prime Software v16.1 or later for the BTS. If you are not sure, download and install the latest release.
User Guide › Information about the Cyclone® 10 LP FPGA Evaluation Kit hardware and board setup, including how to use the included software.
Schematic › PCB Schematic. See User Guide on how to determine PCB revision. Version B
View all Show less

Note:

Buyer represents that it is a product developer, software developer or system integrator and acknowledges that this product is an evaluation kit that is not FCC authorized, is made available solely for evaluation and software development, and may not be resold.
