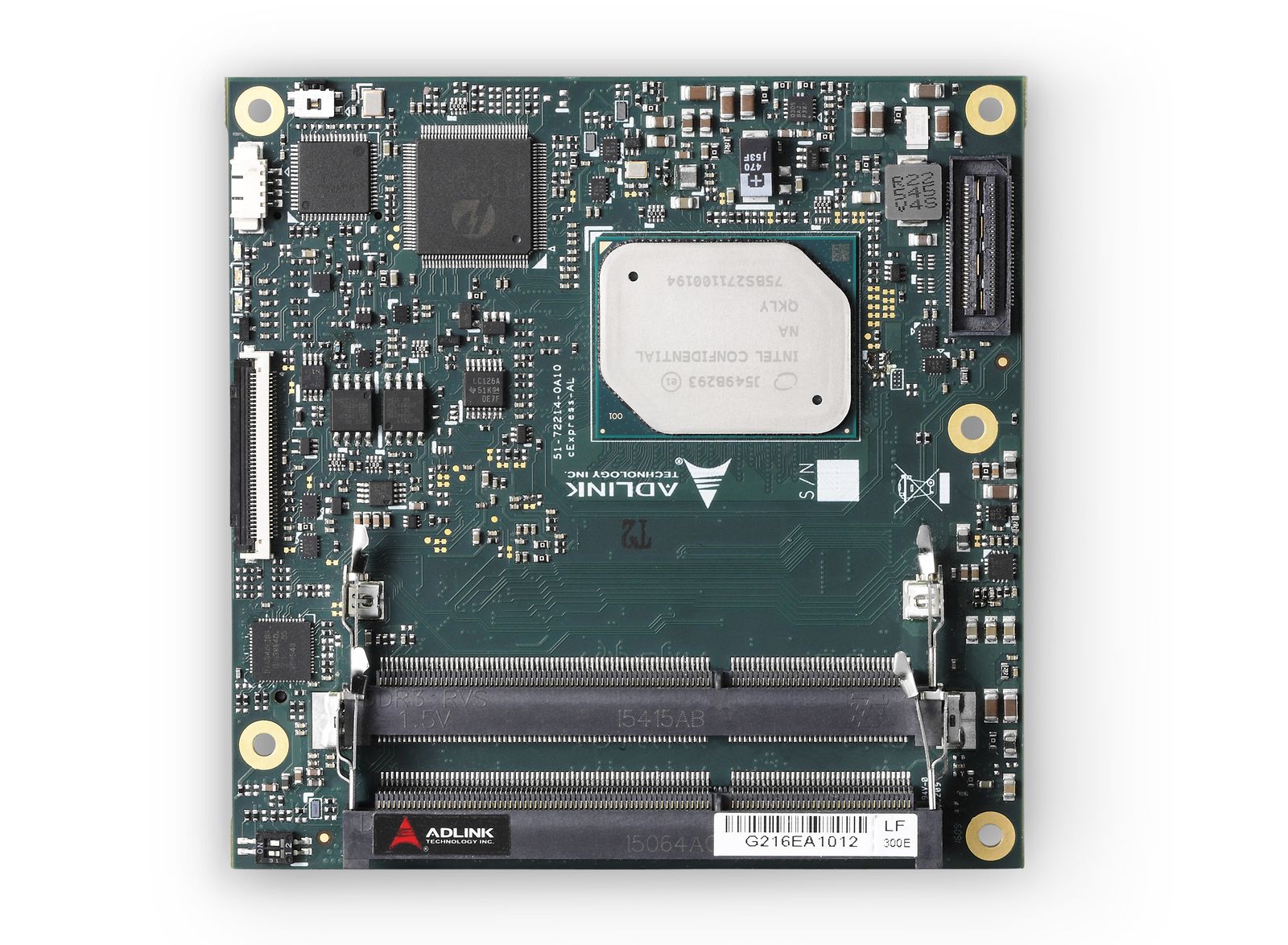

ADLINK cExpress-AL: COM Express® Compact Size Type 6 Module with Intel® Atom® E3900 series, Pentium® or Celeron® Processors
About this offer
ADLINK cExpress-AL is a COM Express® COM.0 R3.0 Type 6 module supporting the Intel Atom®, Pentium® and Celeron® processor system-on-chip (SoC). The cExpress-AL is specifically designed for customers who need optimized processing and graphics performance with low power consumption in a long product life solution. Integrated IntelR Gen9 LP Graphics includes features such as OpenGL 4.3, DirectX 12, OpenCL 2.0; and support for H.265/HEVC, H.264, MPEG2, VC1, VP9, MVC, JPEG/MJPEG hardware decode. Up to three independent displays are available. The module has dual stacked SODIMM sockets for up to 8 GB non-ECC type DDR3L memory. Featured IO include a single GbE port, USB 3.0 and USB 2.0 ports, SATA 6 Gb/s ports, and up to 5 PCIe x1 lanes. In addition, SD signals are muxed with GPIO. The module is equipped with SPI AMI EFI BIOS, supporting embedded features such as remote console, CMOS backup, hardware monitor, and watchdog timer. An optional eMMC 5.0 (8/16/32 GB) is supported.
Details
Availability and Pricing
Minimum Order Quantity (Unit): 1
Regional Coverage
Americas:
Latin America Region
North America Region
Asia, Pacific, and Japan:
Southeast Asia
Australia and New Zealand
Japan
Taiwan
Rest of Asia
Korea
South Asia
Europe, Middle East, and Africa:
Middle East, Turkey, and Africa
Central Eastern Europe
Western European Union Region
Commonwealth of Independent States
Northern European Union Region
Southern European Union Region
Central European Region
People's Republic of China:
People's Republic of China
Use Case
Advanced Analytics
Artificial Intelligence : Anomaly Detection
Artificial Intelligence : Content generation
Artificial Intelligence : Medical imaging, Analysis and Diagnostics
Artificial Intelligence : Predictive Maintenance and Analytics
Artificial Intelligence : Robotic Process Automation
Digital Signage
Smart Home
Others
Factory Automation
Inventory Management
Smart Building
Smart City
Industry
Gaming : eSports
Health and Life Sciences : Medical Devices
Health and Life Sciences : Medical Imaging
Health and Life Sciences : Patient Infotainment
Others
Transportation and Warehouse : Fleet Management
Transportation and Warehouse : Warehousing and Storage
Government
Arts and Entertainment : Amusement and Gambling
Education
Hospitality and Restaurants : Accommodation
Hospitality and Restaurants : Food and Drink Services
Agriculture
Manufacturing : Industrial Automation
Technical Specifications
- Category:
- Component: Board: COM Express
- Operating Systems:
-
IPA OS:Other
Linux*:Wind River Linux family*
Linux*:Wind River Linux family*:VxWorks*
- End Customer Type:
-
Enterprise
Other
Small and Medium sized Business
Included Intel Technology
Intel® Celeron® Processor
Intel® Celeron® Processor N Series
Intel® Pentium® Processor
Intel® Pentium® Processor N Series
Networking Technology
