A. Agilex™ 5 FPGA Product Keys and Package Drawings

Agilex™ 5 package drawings are based on the die and package codes shown in the product key, as illustrated by the figure below.

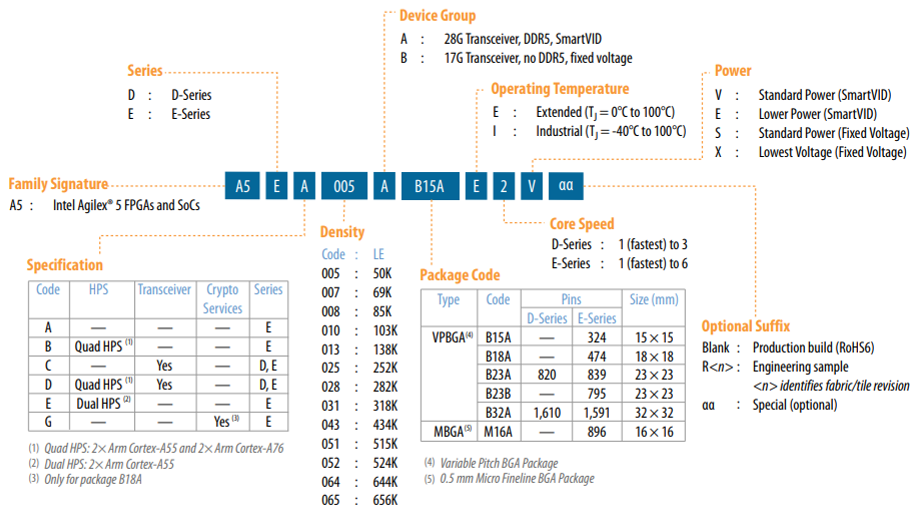

Figure 11.  Agilex™ 5 Product Key

The table below shows a mapping from the product package code to the available package drawings at the time of publishing this document.

Table 5.  List of Package Drawings
Product Die Density, KLE Package Size Package Code Drawing Number

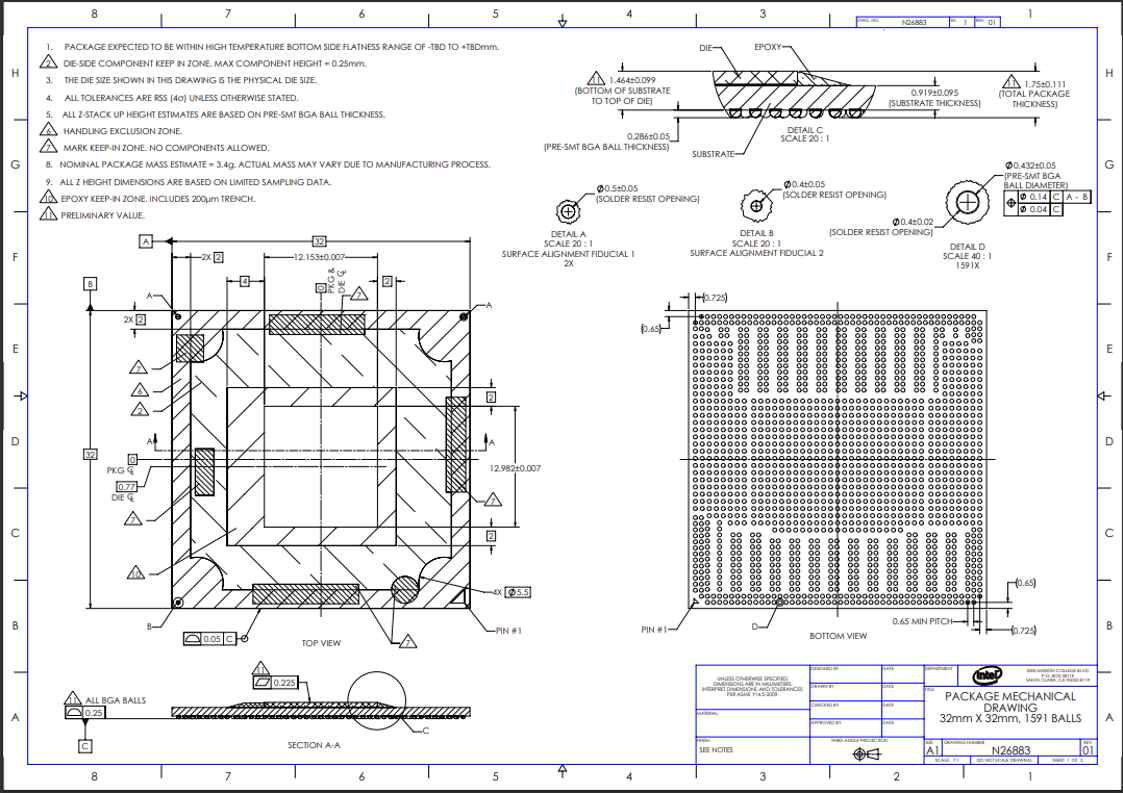

Agilex™ 5 E 052, 065 32x32 B32A N26883

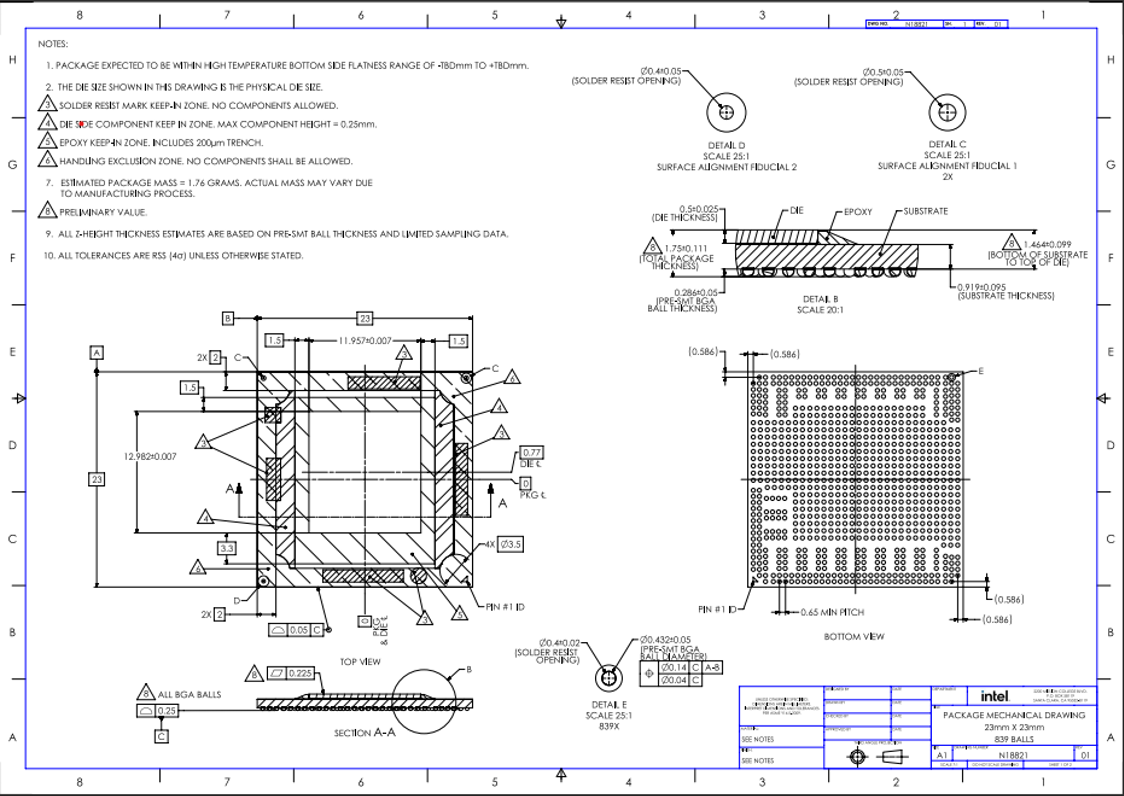

052, 065 23x23 B23A N18821

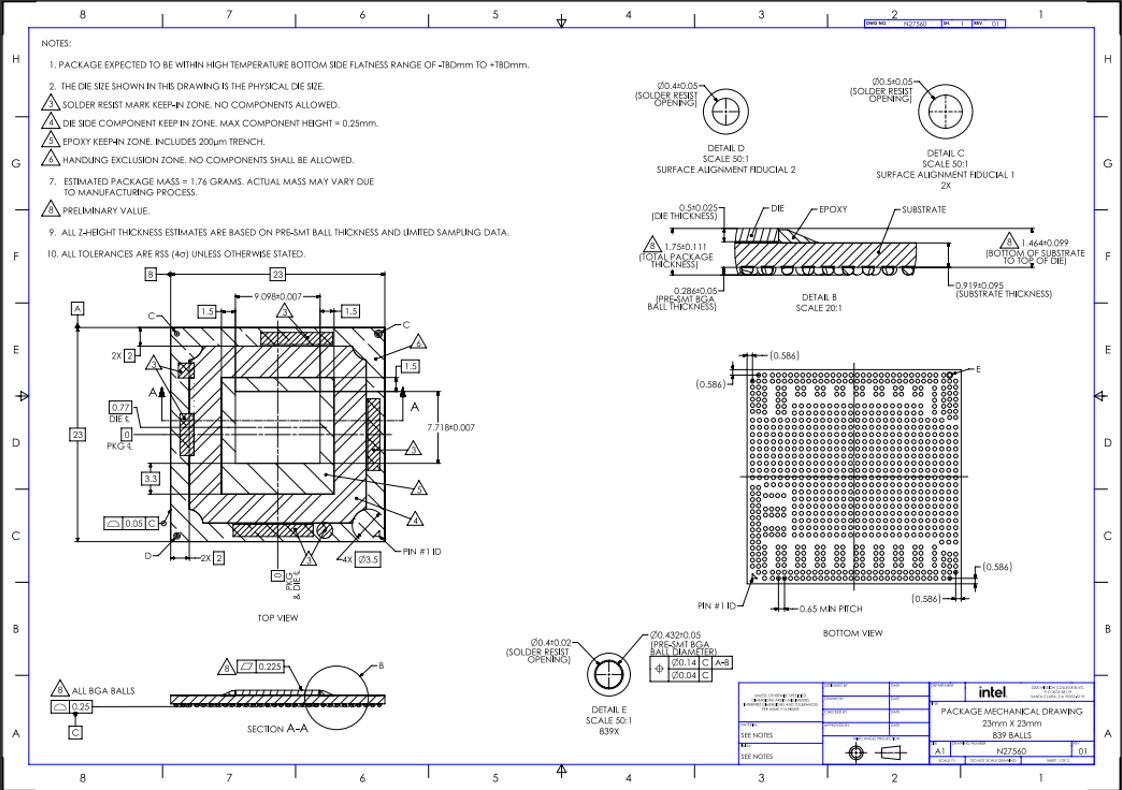

008, 013 23x23 B23A N27560

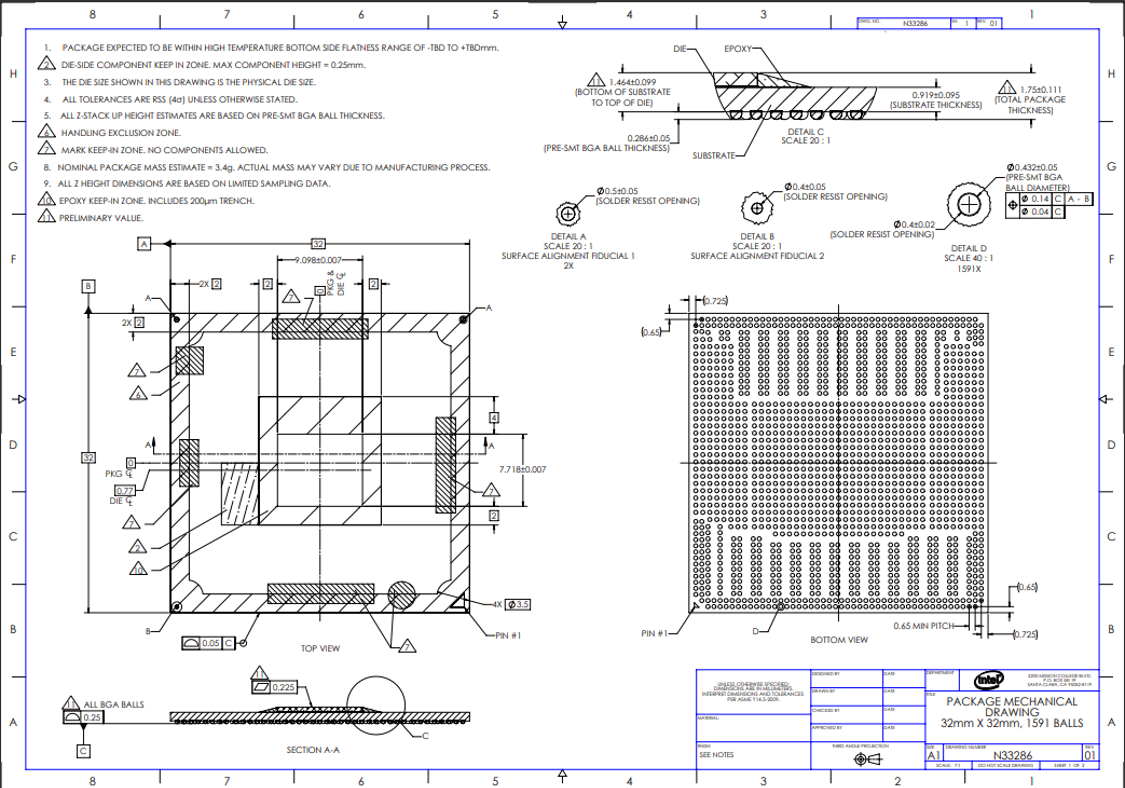

008, 013, 32x32 B32A N33286

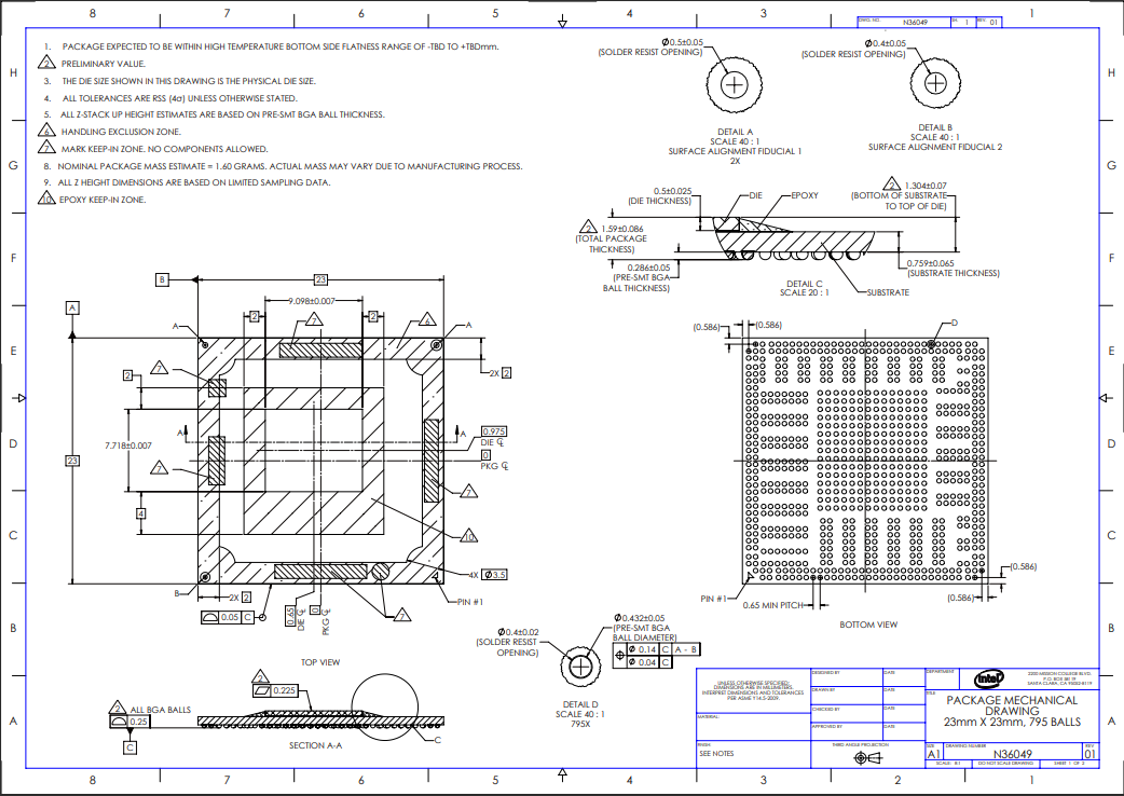

008, 013 23x23 B23A N36049

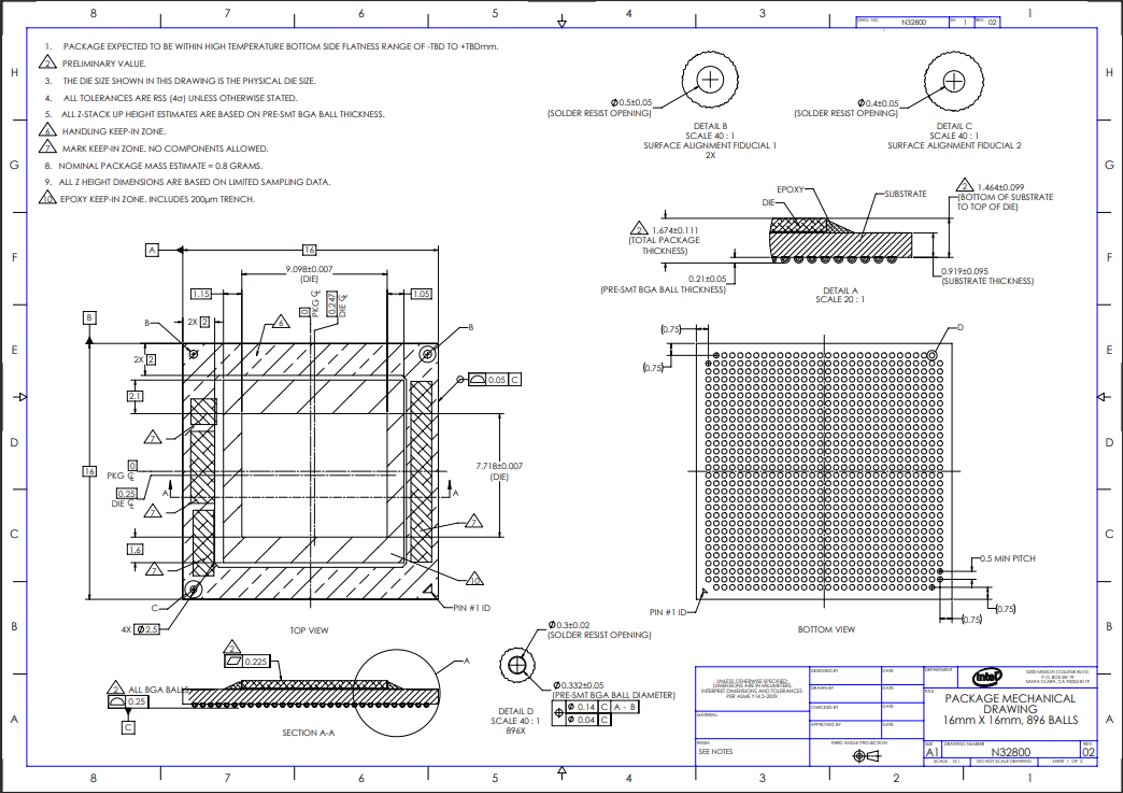

013 16x16 M16A N32800

Figure 12. PMD for B32A

Figure 13. Package Drawing for B23A

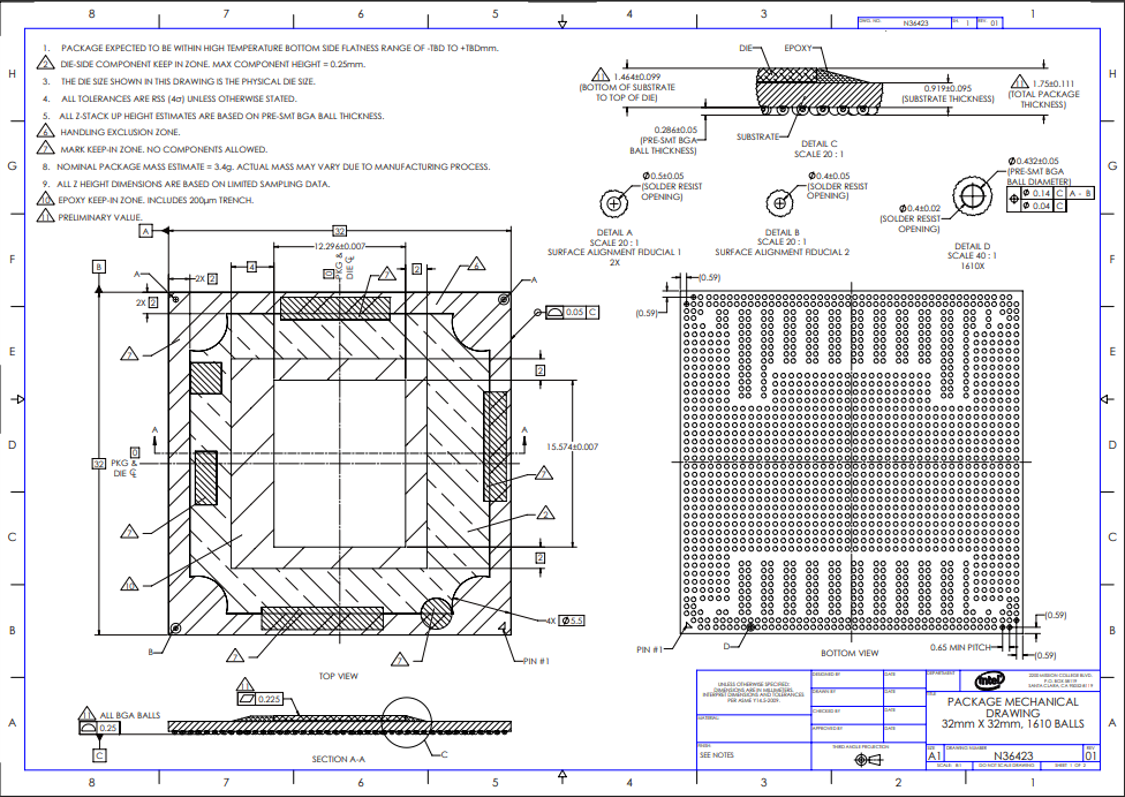

Figure 14. Package Drawing for B32A

Figure 15. Package Drawing for B23B

Figure 16. Package Drawing for B32A

Figure 17. Package drawing for B23A

Figure 18. Package Drawing for MA16A
