3.7. Analog Parameters

Through this tab, you can configure the PMA settings. Intel recommends the following PMA settings for Agilex™ 5 FPGA E-Series 065B Premium Development Kit:

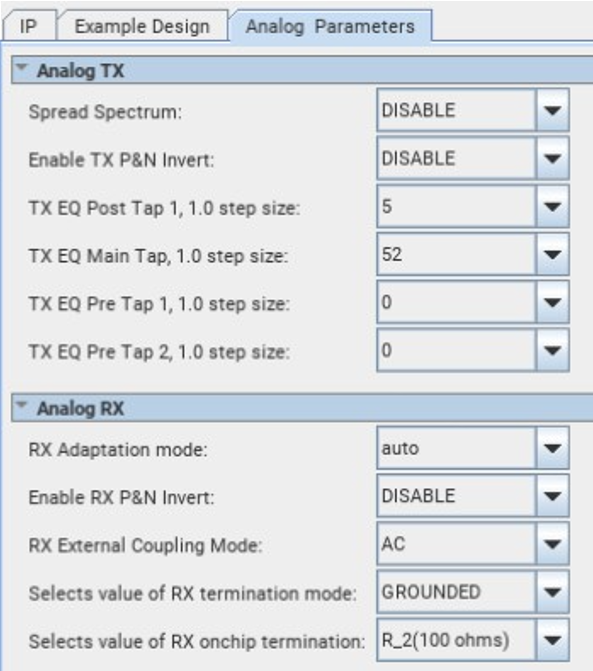

Figure 14. PMA Settings with RX Auto Adaptation Mode

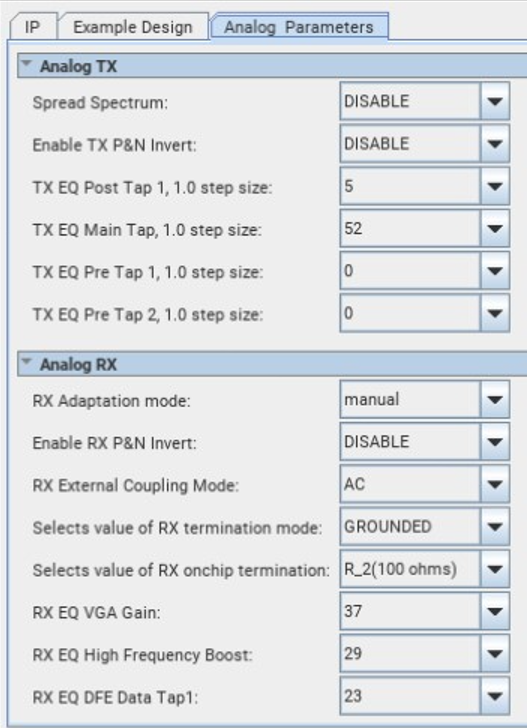

Figure 15. PMA Settings with RX Manual Adaptation Mode
