4.2.4.1. Testbench

Figure 32. Block Diagram of the Design Example Multiport 10/100/1000Mb Ethernet MAC with 1000BASE-X/SGMII PCS with LVDS I/O Simulation Testbench

A successful testbench sends ten packets and receives the same number of packets. The following sample output illustrates the excerpt of the output:

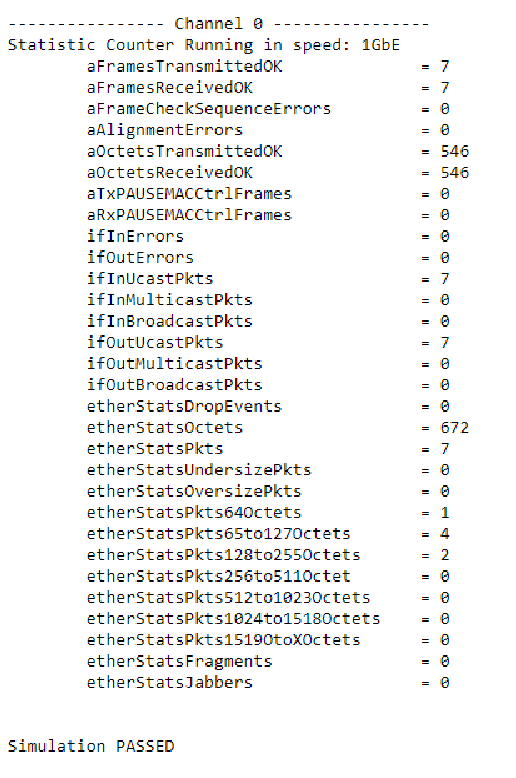

Figure 33. Simulation Test Result of VCS MX Simulator
