1.2.5.1. Test Procedure

After you compile the Triple-Speed Ethernet IP design example and configure it on your Agilex™ 3 and Agilex™ 5 device, you can use the System Console to program the IP.

To turn on the System Console and test the hardware design example, follow these steps:

  1. In the Quartus® Prime Pro Edition software, select Tools > System Debugging Tools>System Console to launch the system console.
  2. In the Tcl Console pane, type cd hwtest/agx/2xtbi_pma to change directory to <design_example_dir>/hardware_test_design/hwtest/agx/2xtbi_pma.
  3. Type source basic/basic.tcl.
  4. Type list_jtag to display a list of JTAG master indexes that are connected to your board.
  5. Type set_jtag<number_of appropriate_JTAG_master> to select the JTAG master.
  6. For hardware testing:

    • To perform external loopback testing, type source hwtest_main.tcl to run the design example in 10Mbps, 100 Mbps, and 1Gbps ethernet speed.

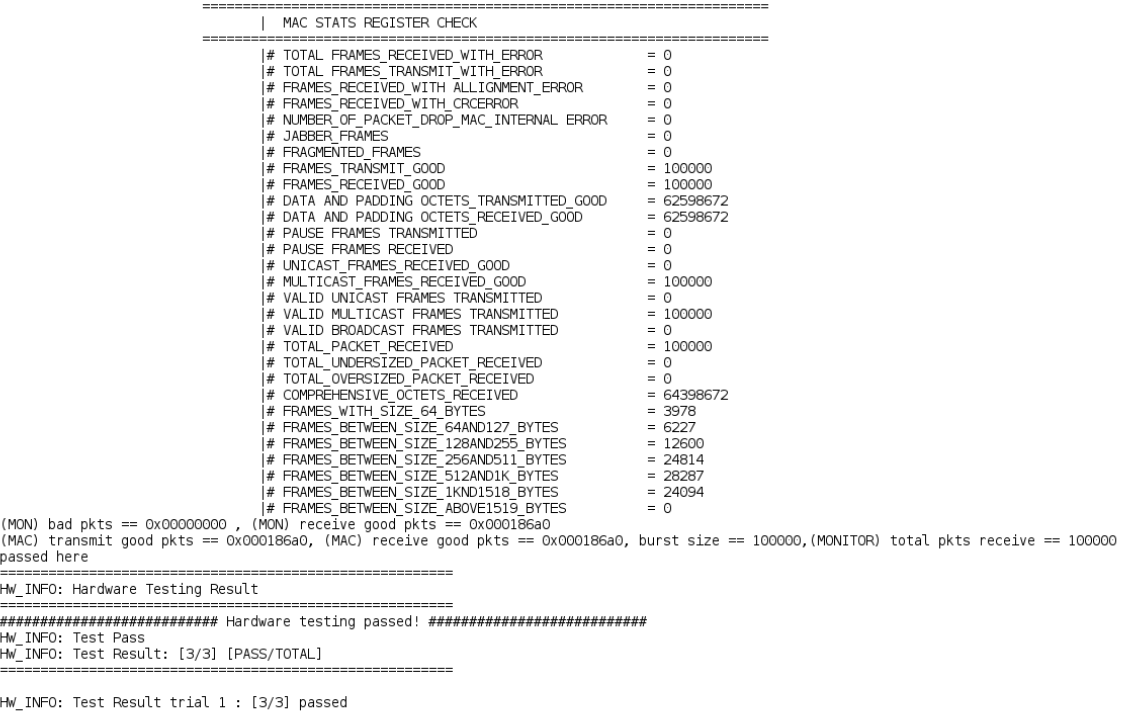

      Results: A successful test run displays the following message:

    • To perform serial internal loopback testing, type source hwtest_main_silb.tcl to run the design example in 10Mbps, 100 Mbps, and 1Gbps ethernet speed to run serial internal loopback test.

      Results: A successful test displays the following message:

      % source hwtest_main_silb.tcl
HW_INFO: Starting Internal Loopback Testing
ISSP Reset Applied
ISSP Reset released
------------------------------------------------------
Asserting Reset
------------------------------------------------------
======================================================
         ENABLING SILB
======================================================
1. 0xF9A30F
2. 0x00f9a30f
Polling successfull Bit 15: 0x000001 , Bit 14: 0x000000
1. 0xF9230F
2. 0x00f9230f
Polling successfull Bit 15: 0x000000 , Bit 14: 0x000000
1. 0x00A303
2. 0x0000a303
Polling successfull Bit 15: 0x000001 , Bit 14: 0x000000
1. 0x002303
2. 0x00002303
Polling successfull Bit 15: 0x000000 , Bit 14: 0x000000
1. 0x6A340
2. 0x0006a340
Polling successfull Bit 15: 0x000001 , Bit 14: 0x000000
1. 0x62340
2. 0x00062340
Polling successfull Bit 15: 0x000000 , Bit 14: 0x000000
------------------------------------------------------
Releasing Reset
------------------------------------------------------
Value from issp reset probe is 0x3/0b11
Rx Lane status is : 1
Rx Lane reset status is 1
######################################################
Value from issp reset probe is 0x3/0b11
Serial loopback on Lane# 3 is enabled
######################################################
HW_INFO: Testing TEST_SMA_LB 1G
CONFIGURE CHANNEL 0
TSE_MAC_BASE_ADDR is 131072
TSE_PHY_BASE_ADDR is 131584
Start:Config 1 port...
Step 1: Config PCS !
              Config SGMIIPCS...
              Setting up PCS with a basic working config
Start: Set PCS SGMII PCS ENA
End.
               Enable SGMII mode...
Disable PCS Auto-Negotiation
               Disable AN...
                      speed is = 0x00000001
1G
                      IF_MODE after set speed = 0x00000009
      (MON) bad pkts == 0x00000000 , (MON) receive
good pkts == 0x000186a0
(MAC) transmit good pkts == 0x000186a0, (MAC) receive
good pkts == 0x000186a0, burst size == 100000, (MONITOR) total
passed here
=======================================================
HW_INFO: Hardware Testing Result
=======================================================
############# Hardware testing passed! ################
HW_INFO: Test Pass
HW_INFO: Test Result: [3/3][PASS/TOTAL]
=======================================================
HW_INFO: Test Result trial 1:[3/3] passed
-------------------------------------------------------
Asserting Reset
-------------------------------------------------------
=======================================================
       DISABLING SILB
======================================================
1. 0xF9A30F
2. 0x00f9a30f
Polling successfull Bit 15: 0x000001 , Bit 14: 0x000000
1. 0xF9230F
2. 0x00f9230f
Polling successfull Bit 15: 0x000000 , Bit 14: 0x000000
1. 0x00A303
2. 0x0000a303
Polling successfull Bit 15: 0x000001 , Bit 14: 0x000000
1. 0x002303
2. 0x00002303
Polling successfull Bit 15: 0x000000 , Bit 14: 0x000000
1. 0x0A340
2. 0x0000a340
Polling successfull Bit 15: 0x000001 , Bit 14: 0x000000
1. 0x02340
2. 0x00002340
Polling successfull Bit 15: 0x000000 , Bit 14: 0x000000
Releasing Reset

Value from issp reset probe is 0x3/0b11
Serial loopback on Lane#3 is disabled
Note: For the test procedure of serial internal loopback, refer to GTS Attribute Access Method in the GTS Transceiver PHY User Guide: Agilex™ 5 FPGAs and SoCs.
