4.1.1.1. Partial Reconfiguration

Partial reconfiguration (PR) is supported for Agilex™ 5. PR allows you to reconfigure a portion of the FPGA dynamically, while the remaining FPGA design continues to function. You can define multiple personas for a particular region in your design, without impacting operation in areas outside this region. This methodology is effective in systems with multiple functions that time-share the same FPGA device resources. PR enables the implementation of more complex FPGA systems.

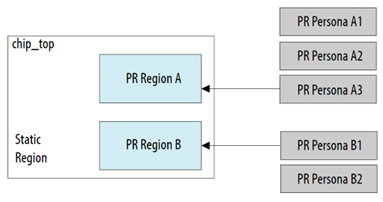

Figure 2. Partial Reconfiguration Multiple Personas

For more information about partial reconfiguration, refer to Quartus® Prime Pro Edition User Guide: Partial Reconfiguration.
