Document Table of Contents Generating a Custom Memory Preset File for LPDDR5

To generate a custom preset file for LPDDR5, follow these steps:

  1. In the IP Catalog, select Memory Device Description IP (LPDDR5).

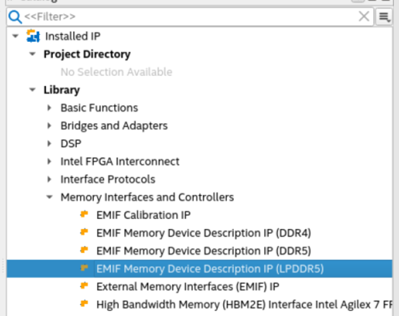

    Figure 15. IP Catalog
  2. Type a name for the IP instance and click Create.

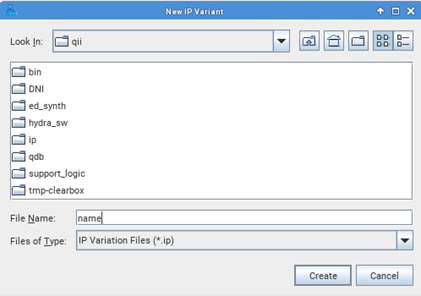

    Figure 16. Creating a New IP Instance
  3. Refer to the following figures for the steps in creating and saving the custom presets file:

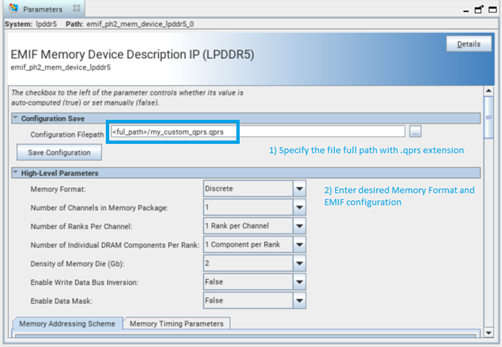

    Figure 17. Parameterizing EMIF Memory Device Description IP (LPDDR5) – Part 1

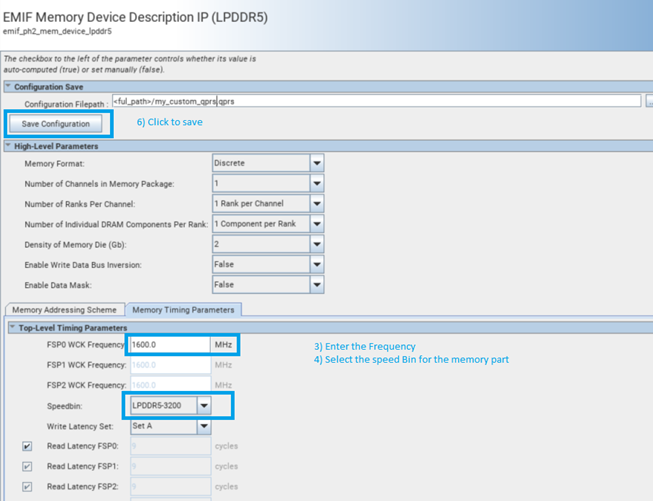

    Figure 18. Parameterizing EMIF Memory Device Description IP (LPDDR5) – Part 2
