5. 1G/2.5G/5G/10G Multirate Ethernet PHY Intel® FPGA IP Parameters

You can select the 1G/2.5G/5G/10G Multirate Ethernet PHY Intel® FPGA IP core for Intel® Agilex™ F-tile devices from the Intel® Quartus® Prime Pro Edition IP catalog. To customize the IP, specify the parameters in the IP parameter editor.

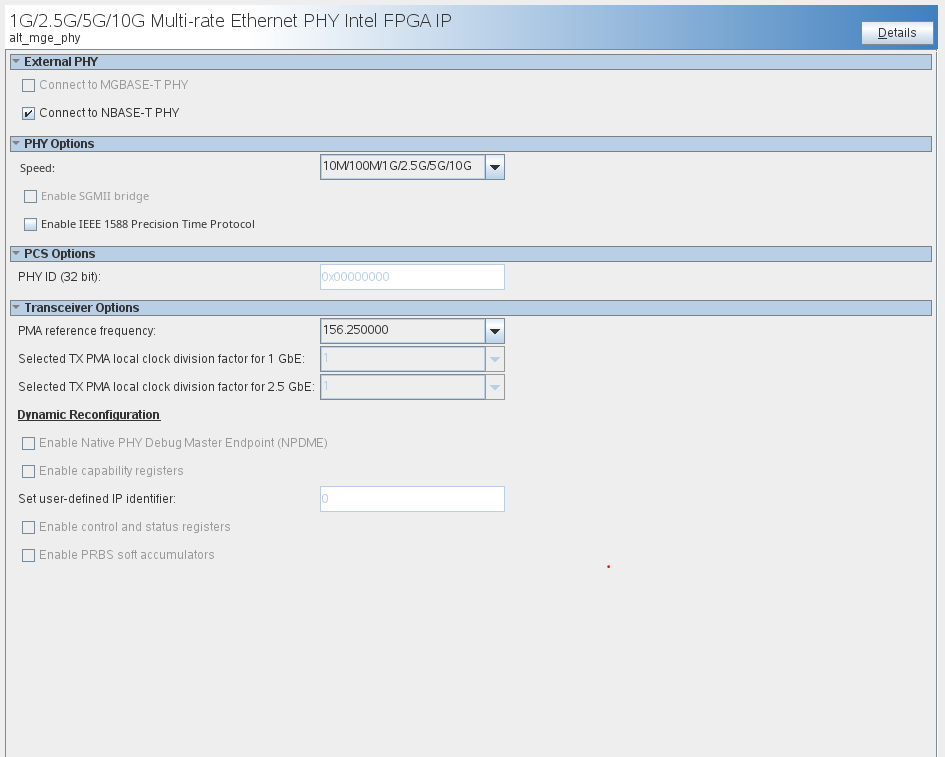

Figure 9.  1G/2.5G/5G/10G Multirate Ethernet PHY IP Parameter Editor
Table 14.   1G/2.5G/5G/10G Multirate Ethernet PHY Intel® FPGA IP Core Parameters
Parameter Options Description
External PHY
Connect to NBASE-T PHY On

This parameter is turned on by default as only 10M/100M/1G/2.5G/5G/10G (USXGMII) mode is supported and the external PHY must be NBASE-T compatible.

PHY Options
Speed

10M/100M/1G/2.5G/5G/10G (USXGMII)

 The operating speed of the PHY.
Enable IEEE 1588 Precision Time Protocol On, Off

Turn on this parameter to enable measurement of datapath latency.
Transceiver Options
PMA reference frequency

156.250000

312.500000

322.265625

 Specify the frequency of the reference clock to PMA from system PLL (i_clk_ref).
