6.5.1. PCIe1 Configuration, Debug and Extension Options

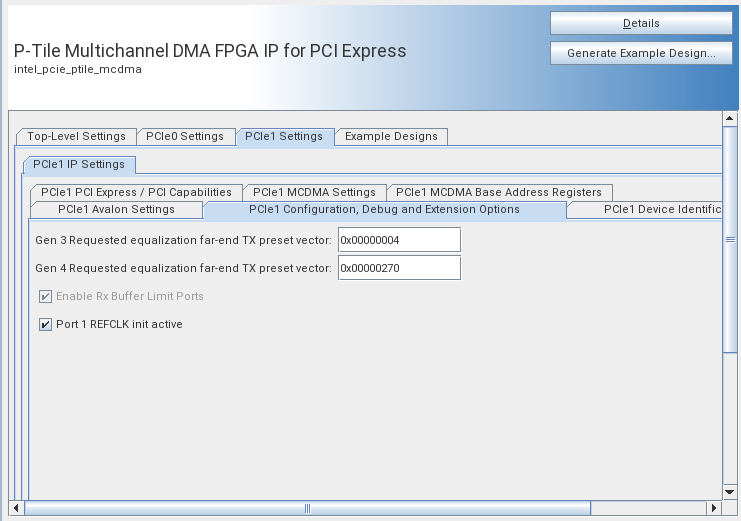

Figure 39. PCIe1 Configuration, Debug and Extension Options
Table 97.  PCIe1 Configuration, Debug and Extension Options Settings Table
Parameter Value Default Value Description

Port 1 REFCLK init active (only P-Tile)

On / Off

On

If this parameter is On (default), the refclk1 is stable after pin_perst and is free-running. This parameter must be set to On for Type A/B/C systems.

If this parameter is Off, refclk1 is only available later in User Mode. This parameter must be set to Off for Type D systems.

This parameter is only available in the PCIe1 Settings tab for a 2x8 topology.

For more details regarding the link subdivision feature and its usage, refer to P-Tile Avalon Streaming Intel FPGA IP for PCI Express User Guide Appendix E.
