1.2.1. Analog Parameters Tab

Describes the F-Tile CPRI PHY IP Analog Parameters tab

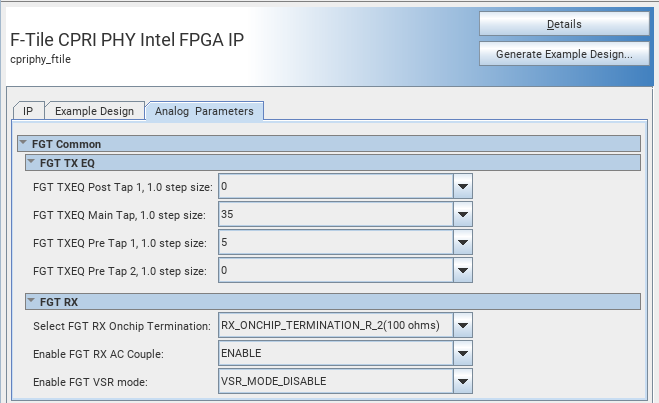

Figure 3. Analog Parameters Tab
When the CPRI rate is 6.1440G and below, you see three extra analog parameters to configure:
  • RXEQ VGA Gain
  • RXEQ High Frequency Boost
  • RXEQ DFE Data Tap1

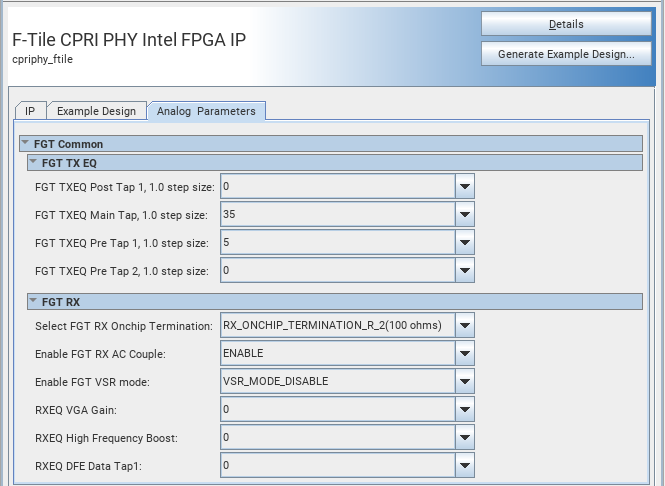

Figure 4. For CPRI Rates 6.1440G and Below
Figure 5. For CPRI Rates 9.8304G and Above
Table 1.  Default and Recommended Analog Parameter Values
Parameter Value
FGT TXEQ Post Tap 1, 1.0 step size 0
FGT TXEQ Main Tap 1.0 step size 35
FGT TXEQ Pre Tap 1, 1.0 step size 5
FGT TXEQ Pre Tap 2, 1.0 step size 0
FGT RX Onchip Termination RX_ONCHIP_TERMINATION_R_2 (100 ohms)
Enable FGT RX AC Couple ENABLE
Enable FGT VSR mode
  • VSR_MODE_LOW_LOSS (for CPRI rate 24Gbps only)
  • VSR_MODE_DISABLE (shown error if it’s not selected for CPRI rate below 24Gbps)
RXEQ VGA Gain 0 (Required only when CPRI rate is 6.1440Gbps and below)
RXEQ High Frequency Boost 0 (Required only when CPRI rate is 6.1440Gbps and below)
RXEQ DFE Data Tap1 0 (Required only when CPRI rate is 6.1440Gbps and below)

In the Example Design tab, if you select Target Development Kit to be Intel Agilex 7 FPGA I-Series Transceiver-SoC Development Kit, and you configure analog parameters other than the default and recommended values, warnings appear that recommend you set to the default values.

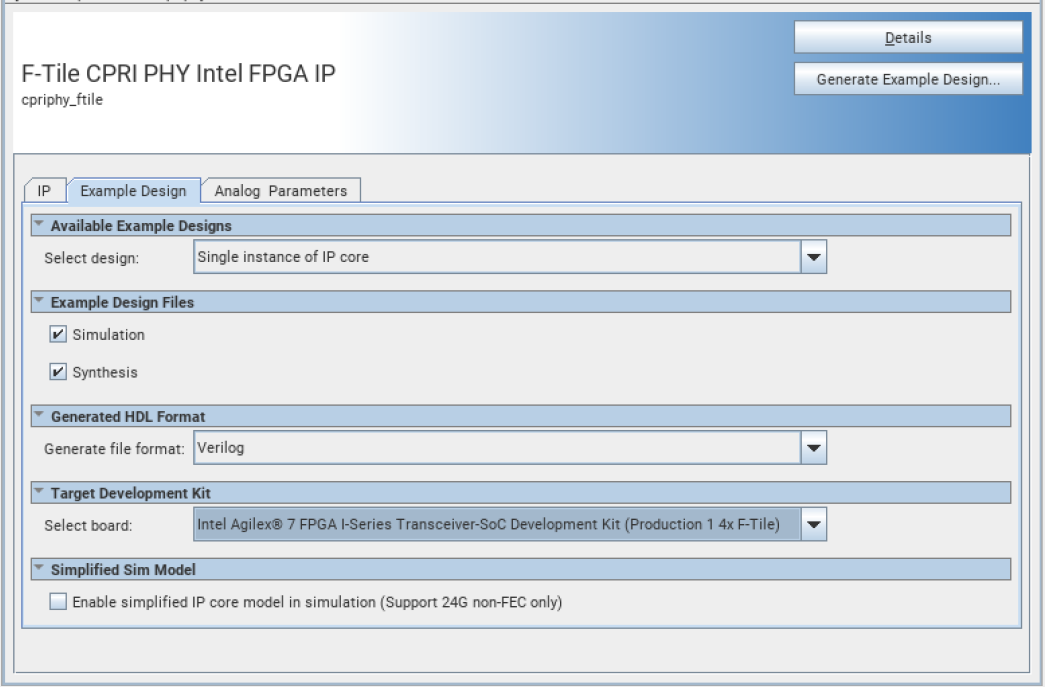

Figure 6. Target Development Kit in the Example Design Tab
