2.10.2.1. VHDL Input Settings (Settings Dialog Box)

Click Assignments > Settings > VHDL Input to specify options for the synthesis of VHDL input files.
Table 22.  VHDL Input Settings

Setting

Description

VHDL Version

Specifies the VHDL standard for use during synthesis of VHDL input design files. Select the language standards that corresponds with the VHDL files.

Library Mapping File

Specifies a Library Mapping File (.lmf) for use in synthesizing VHDL files that contain IP cores. Specify the full path name of the LMF in the File name box.
VHDL-2019 Conditional Analysis User Definitions File Specifies the .ini file that contains your user-defined VHDL 2019 conditional analysis identifier-value pairs.

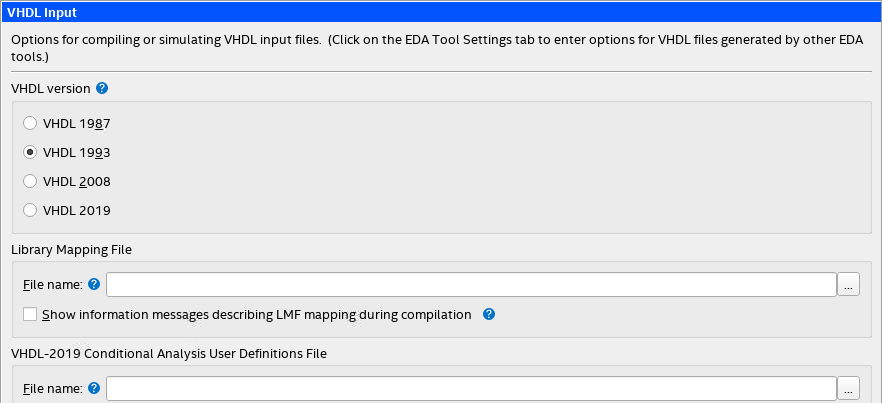

Figure 59. VHDL Input Settings Dialog Box
