SoC Bootloader

Intel® SoC FPGAs use a bootloader to load and run the end user application on the hard processor system (HPS). The end user application may be a simple bare-metal application or a complex operating system like the Linux* operating system.

This page describes what a bootloader is, lists the available boot loaders and their main characteristics, describes how to get started with the bootloaders, and lists additional resources.

1. What is a Bootloader

Bootloader Definition

When an SoC device boots up, a piece of software called the BootROM is first run. For several reasons, the BootROM has the following limited functionality:

  • It needs to fit in the on-chip ROM so it has to be small
  • It is very expensive to change so it has to be very robust, which implies less features
  • It does not know how the system was configured so it cannot bring up everything

The end user application on the other hand is typically large and requires the system to be configured as desired by the end user before it can run.

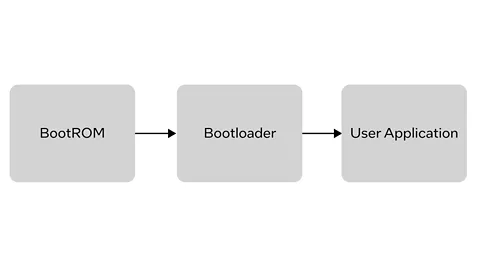

The bootloader's job is to bridge the gap between the BootROM and the end user application.

Typical bootloader tasks include:

  • Configuring the pin multiplexing and pin settings, such as slew rate, voltage, and pull-up/pull-down
  • Configuring the clocks in the clock tree
  • Bringing up and calibrating the SDRAM
  • Initializing the flash memory
  • Loading the end application from the flash memory
  • Passing control to the end application

Besides the features listed above, bootloaders also offer the following advanced features that can enable more complex deployment and more convenient development:

  • Network access that brings in the end user application from the cloud.
  • Debugging tools that enable more convenient diagnosis of issues.
  • Command-line interface for interactive commands.
  • Application running a framework that can enable simple end user applications to be loaded and run to completion by the bootloader. After the application completes, the control is passed back to the bootloader.

Multi-Stage Bootloaders

Sometimes the bootloader process can be split into multiple stages, typically two.

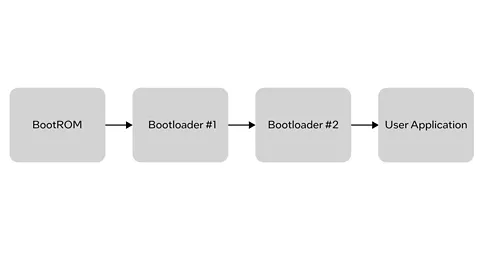

For Cyclone® V SoCs, the BootROM can only load a boot loader of up to 64 KB in size because the SDRAM is not yet brought up at that stage. Because of the size limitation, advanced features such as networking or complex filesystem access cannot be accomplished. If such features are desired, the first stage of the bootloader brings up the SDRAM and then loads a second stage with more functionality. A two-stage bootloader is the default option for Cyclone V SoCs and Arria® V SoCs.

Intel® Arria® 10 SoCs have a larger RAM size. With 256 KB of on-chip RAM, the first stage of the bootloader can have more functionality than Cyclone V and Arria V SoCs. Because of that, typically just one stage is required. However, for even more complex cases, such as accessing several types of flash, complex filesystems, and networking, the user is free to use an additional bootloader stage.

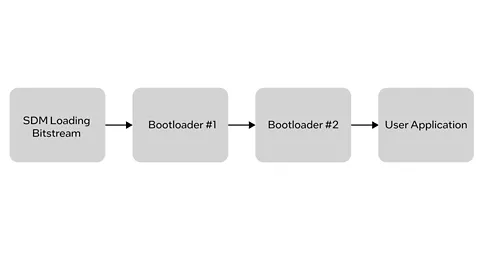

For Intel® Stratix® 10 SoCs, a two-stage bootloader is typically used. The first small bootloader stage is part of the FPGA configuration stream and is loaded by a secure device manager (SDM) into the HPS on-chip RAM, while the second larger bootloader stage can be stored anywhere the HPS has access to.

2. Hardware Handoff

Handoff Overview

All Intel SoC FPGA projects start with a hardware project where various system settings that impact the HPS are entered by the user. These include:

  • Pin multiplexing
  • Pin settings
  • SDRAM settings
  • Clock settings

It is the bootloader's job to apply these settings and the process of the bootloader receiving these settings is called the hardware-to-software handoff.

Depending on the exact bootloader and SoC device family, the handoff can take various forms. Typically:

  • For Cyclone V and Arria V SoCs, the handoff is a combination of XML files, binary files, and source code files, which are converted to source code and then compiled into the preloader
  • For Intel Arria 10 SoCs, the handoff is contained in a single XML file that is converted to a device tree file and used by the bootloader
  • For Intel Stratix 10 SoCs, the handoff information is part of the FPGA configuration bitstream

The primary method of entering or changing the handoff information is through editing them in the Qsys.

In addition to the handoff information, the bootloaders also have various settings that can be selected by the user through the following methods:

  • Changing settings in the BSP editor
  • Editing the bootloader source code
  • Editing the bootloader device tree when a device tree is in use

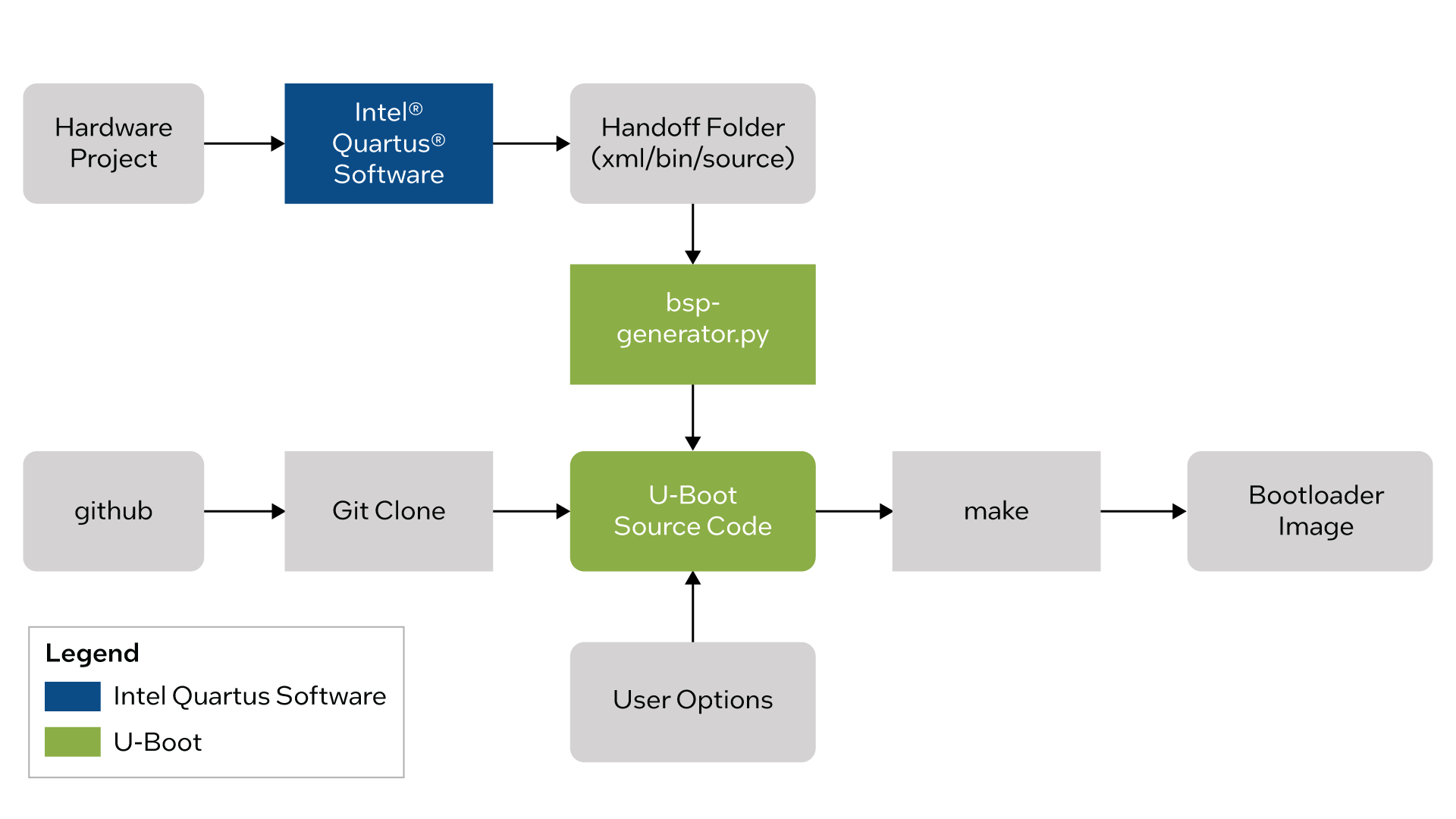

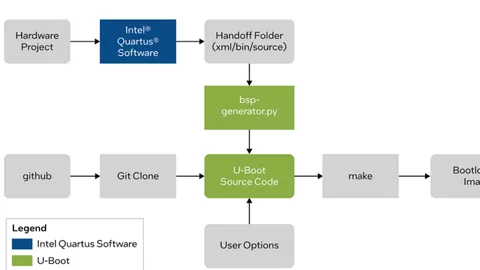

Cyclone V Soc and Arria V SoC Handoff

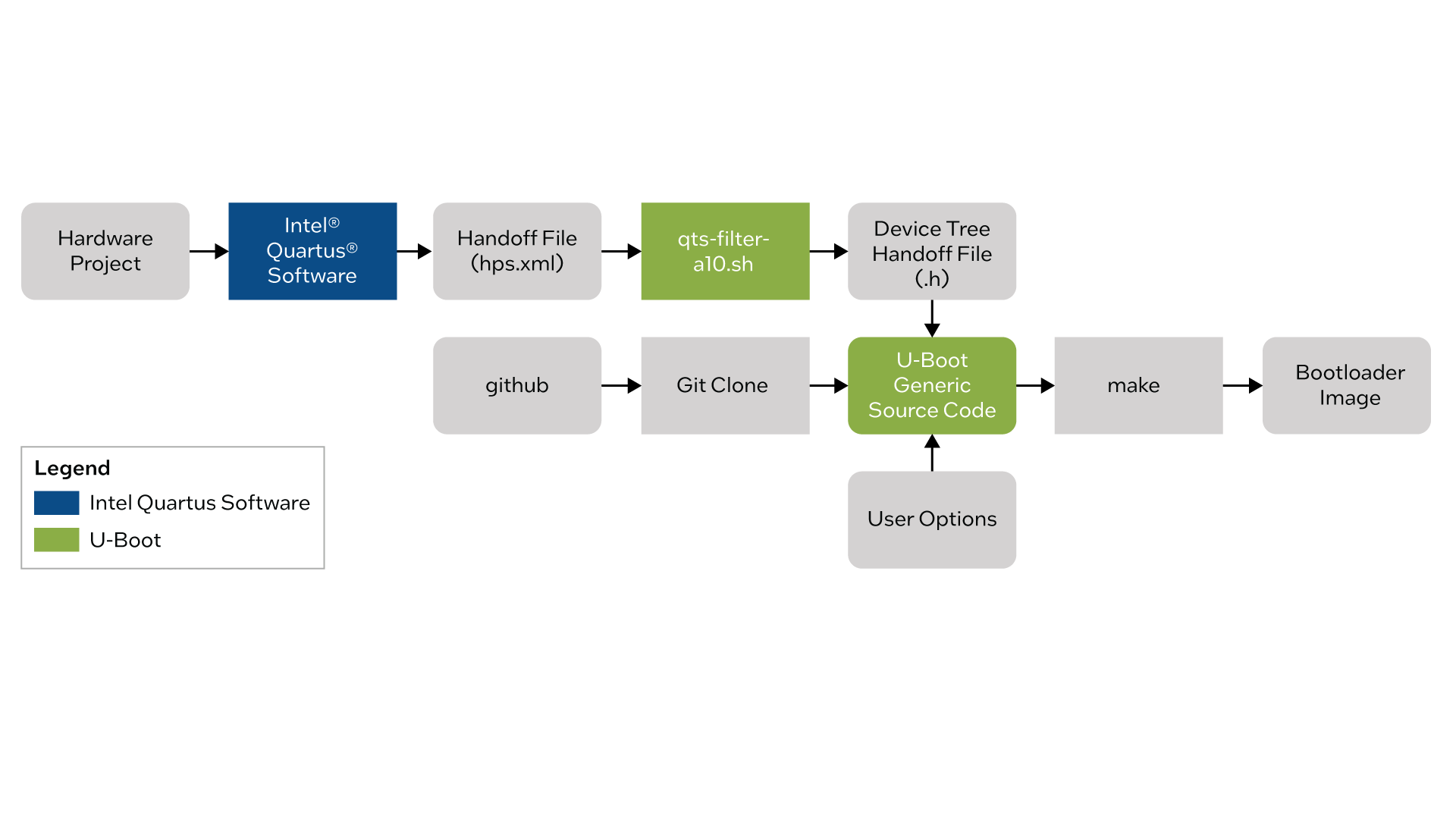

Intel Arria 10 SoC Handoff

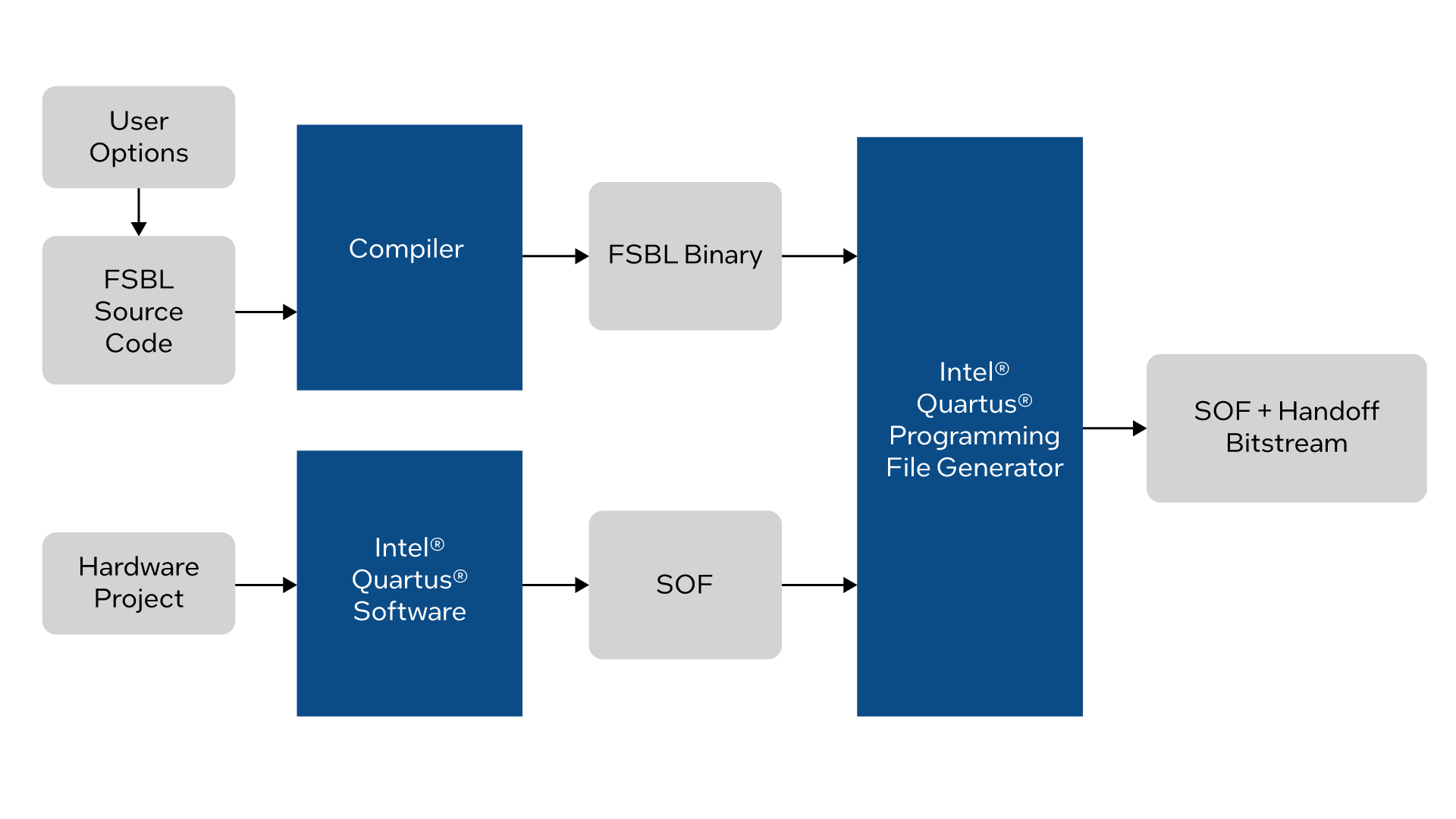

Intel Stratix 10 SoC Handoff

3. Available Bootloaders

Overview of Available Bootloaders

The following table lists the available bootloaders, types of licenses, supported SoCs, and availability of two-stage support:

Bootloader

License Type

Cyclone V SoC

Arria V SoC

Intel Arria 10 SoC

Intel Stratix 10 SoC

Two-Stage Support

U-Boot

GPL

Yes

Yes

Yes

Yes

Yes

MPL

BSD

Yes

Yes

Yes

-

-

UEFI

BSD

-

-

Yes

Yes

Yes

ATF

BSD

-

-

-

Yes

-
View all Show less

U-Boot

U-Boot is a bootloader that is widely used by the industry and offers numerous capabilities:

  • Optional first stage called "SPL" for systems with limited on-chip RAM (for example, Cyclone V SoC and Arria V SoC)
  • Networking capability
  • Flash memory support
  • Command-line interface
  • Scripting
  • U-Boot custom applications

U-Boot is developed under a general-public licence (GPL) so any contributions that are made to a product that is being delivered to the public must also be made public.

The U-Boot source code is available at the U-Boot SoC FPGA page on the GitHub website.

For the Intel Arria 10 SoC, Arria V SoC, and Cyclone V SoC, the U-Boot source code is included with the Intel SoC FPGA Embedded Development Suite (SoC EDS), facilitating a simple and convenient development process.

Note that support for Cyclone V and Arria V SoCs was mainlined into the official U-Boot git tree on the GitHub website. Work is in progress to also mainline support for Intel Arria 10 SoCs.

The main generic U-Boot home page is located at the Das U-Boot -- the Universal Boot Loader web page.

MPL

The Minimal Preloader (MPL) is a bootloader developed using the Intel SoC FPGA Bare-metal Hardware Abstraction Libraries (HWLIBs). It is a single-stage bootloader designed for minimal footprint.

The MPL is available for the following devices:

  • Cyclone V SoC
  • Arria V SoC
  • Intel Arria 10 SoC

The MPL is offered with a Berkeley Software Distribution (BSD) license, which allows more convenient development and deployment.

The MPL is delivered as part of the SoC EDS and is a project archive in the <SoC EDS Installation Folder>/embedded/examples/software/Intel® FPGA-SoCFPGA-HardwareLib-MPL.tar.gz file. The archive contains a file named README.txt, which contains detailed MPL descriptions and usage information.

UEFI

The Unified Extensible Firmware Interface (UEFI) is a standardized firmware specification that simplifies platform initialization and firmware bootstrap.

The UEFI bootloader is available for the following devices:

  • Intel Arria 10 SoC
  • Intel Stratix 10 SoC

Because the UEFI is very well-specified and used by hundreds of technology companies, a lot of the code can be reused, enabling faster development cycles.

The UEFI as implemented on Intel SoC FPGAs comprises two different stages:

  • Pre-Efi Initialization Phase (PEI). This stage configures the platform and loads either the end user application or DXE.
  • Driver eXecution Environment (DXE). This stage loads additional UEFI drivers and allows more extended capabilities, such as networking and command-line interface.

The UEFI bootloader also offers the capability to run special applications that target the DXE environment. Such applications can be executed then upon exit control returns to the DXE.

UEFI is offered with a BSD license, which allows more convenient development and deployment.

The UEFI source code is available at the UEFI SoC FPGA page on the GitHub website.

For Intel Arria 10 SoCs, the UEFI is also delivered with SoC EDS enabling the same development flow as U-Boot.

ATF

The ARM Trusted Firmware (ATF) is a reference implementation of secure world software for ARMv8-a, implementing various ARM interface standards, such as Trusted Board Boot Requirements (TBBR) and Secure Monitor call.

The ATF is developed collaboratively under a BSD license, which allows convenient development and deployment.

The ATF has a small footprint, and is designed as a First Stage Bootloader (FSBL). It is used with UEFI to load the PXE then DXE, but it can also for example be used to load a simple bare-metal application.

The source code for Intel SoC FPGA port of ATF can be accessed at https://github.com/Intel FPGA-opensource/arm-trusted-firmware.

4. Getting Started

U-Boot Getting Started

The following resources are available for you to get started with U-Boot:

  • Generating and Compiling Cyclone V Preloader
  • Generating and Compiling Arria 10 U-Boot

MPL Getting Started

The MPL is delivered as part of the SoC EDS and is a project archive in the <SoC EDS Installation Folder>/embedded/examples/software/Intel FPGA-SoCFPGA-HardwareLib-MPL.tar.gz file. The archive contains a file named README.txt with detailed usage information for Intel Arria 10 SoCs, Arria V SoCs, and Cyclone V SoCs.

UEFI Getting Started

The following resources are available for you to get started with UEFI:

Source Code

Source code can be obtained from the following websites:
