Where Can I Check Processor Frequency and Other Parameters Using Intel® Extreme Tuning Utility (Intel® XTU)?


All Intel® Processors supported by Intel® Extreme Tuning Utility (Intel® XTU)

Windows® 10, 64-bit*


How to use the Intel® Extreme Tuning Utility and Task Manager to check the processor frequency and other parameters.


How do I check frequency and other parameters in Intel® Extreme Tuning Utility (Intel® XTU)?


The Intel® XTU is supported for processors model that include the letter "K"  in their number. Refer to How to Identify My Intel® Processor.

Find the supported processors by the Intel® XTU.

To check the max frequency, processor graphics frequency, temperature per core, memory frequency, and other parameters for processors that are supported the Intel® XTU, follow the steps below:

  1. Download and install Intel® Extreme Tuning Utility (Intel® XTU).
  2. Launch the Intel Extreme Tuning Utility (Intel XTU).
  3. On the lower right, click the wrench icon.

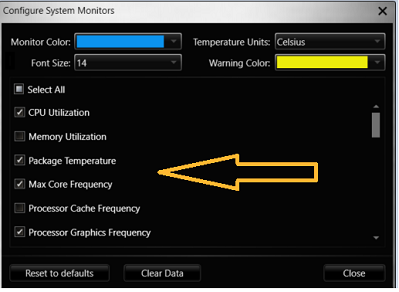

  4. This will open the Configure System Monitors menu that shows multiple parameters.
  5. Choose the parameters that you wish to monitor and check.

    Click the wrench icon

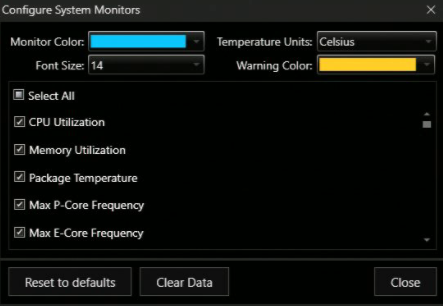

    Choose the parameters that you wish to monitor and check
