Kaby Lake S

7th generation Intel® Core™ and Celeron® families and Intel® Xeon® E3-1275 v6 processors are manufactured on Intel's most up-to-date and optimized 14 nm technology. When paired with an Intel® 100 series chipset or an Intel® C236 chipset, these processors offer even greater CPU and graphics performances as compared to the previous generation. The S-series of processors enables more manufacturing flexibility to match performance, features, and price to IoT applications. These processors offer thermal design power (TDP) options of 65W and 35W to fit specific design configurations with performance and low-power requirements. The S-series processors are ideally suited for transactional retail terminals, industrial rack PCs, and general embedded use conditions.

  • Overview
  • Documentation
  • Software & downloads

Topline specifications

  • Double digit (1) CPU and graphics performance gains
  • Improved power efficiency
  • Quad- and dual-core options
  • Reusability of existing IP and board designs
  • Advanced security and manageability
  • Extended product supply and IoT use conditions

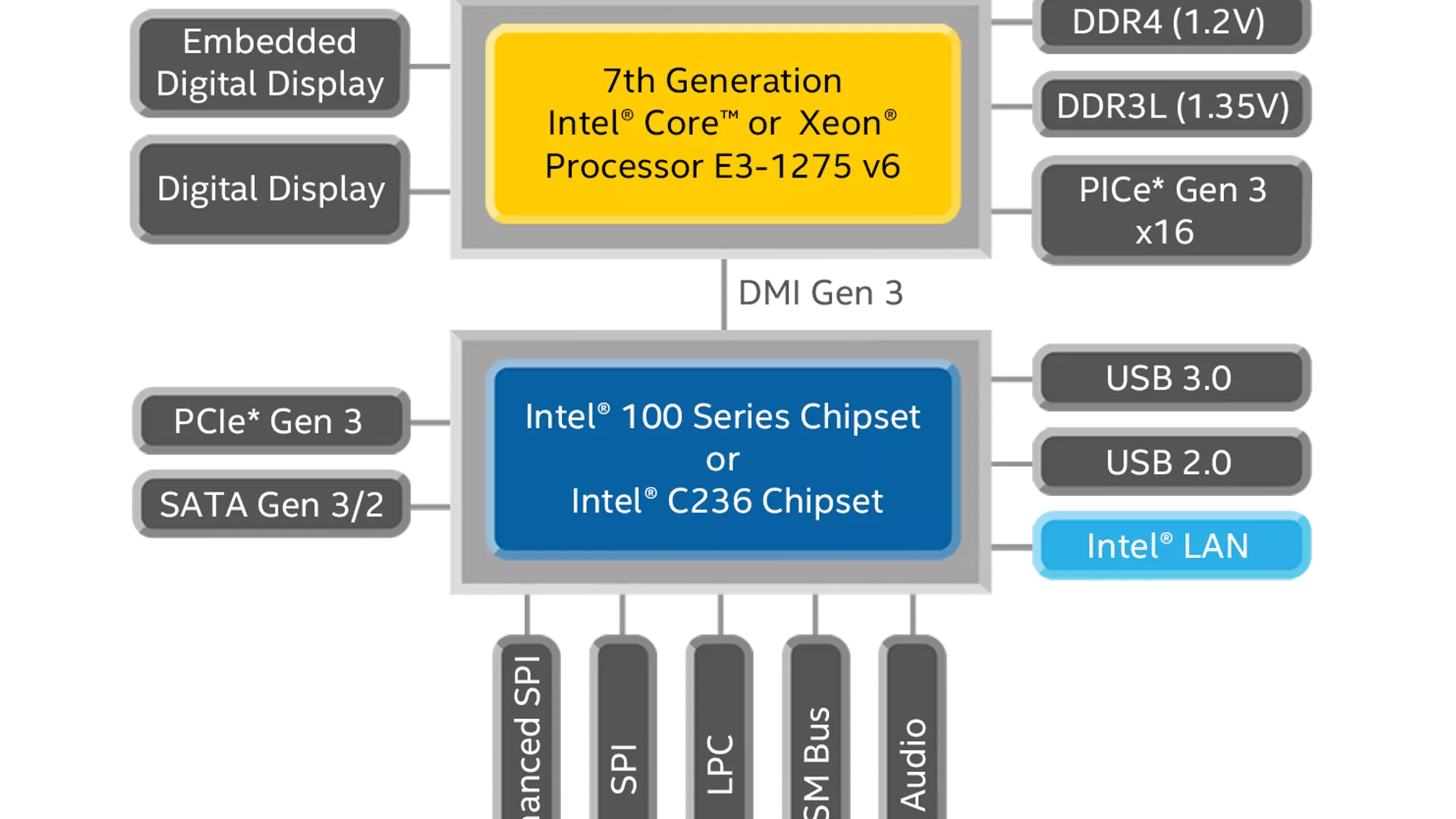

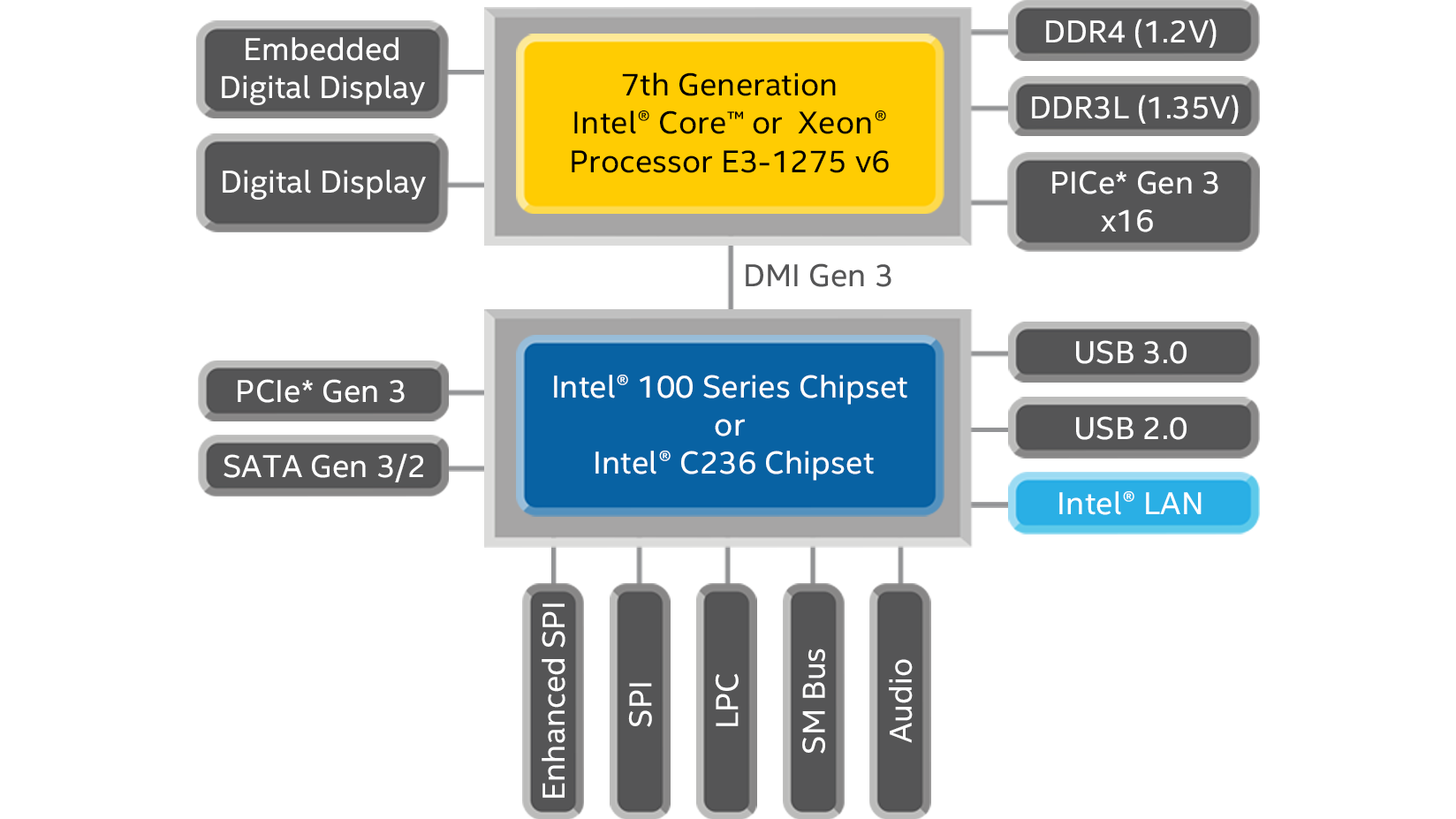

Platform components for Kaby Lake S

  • Processor specifications
  • Chipset specifications
Processor Name Ordering code Cache Clock speed Power Memory
Intel® Xeon® Processor E3-1275 v6 CM8067702870931 8M 3.8 GHz 73W DDR4-2400, DDR3L-1866
Intel® Core™ i7-7700 Processor CM8067702868314 8M 3.6 GHz 65W DDR3L-1600; DDR4-2133
Intel® Core™ i7-7700T Processor CM8067702868416 8M 2.9 GHz 35W DDR3L-1600; DDR4-2133
Intel® Core™ i5-7500 Processor CM8067702868012 6M 3.4 GHz 65W DDR3L-1600; DDR4-2133
Intel® Core™ i5-7500T Processor CM8067702868115 6M 2.7 GHz 35W DDR3L-1600; DDR4-2133
Intel® Core™ i3-7101E Processor CM8067702867060 3M 3.9 GHz 54W DDR3L-1600; DDR4-2133
Intel® Core™ i3-7101TE Processor CM8067702867061 3M 3.4 GHz 35W DDR3L-1600; DDR4-2133
Intel® Celeron® Processor G3930E CM8067703318802 2M 2.9 GHz 54W DDR4-2133, DDR3L-1600
Intel® Celeron® Processor G3930TE CM8067703318900 2M 2.7 GHz 35W DDR4-2133, DDR3L-1600
View all Show less
Chipset name Ordering code Power Features
Intel® C236 Chipset GLC236 3.67W Up to eight SATA* ports (6 Gbps); 14 total USB ports (up to 10 USB 3.0); up to 20 PCIe* gen 3.0 (x1, x2, x4 configuration options); 1x16, 2x8, or 1x8 + 2x4 PCIe graphics support; memory channels/DIMM per channel = 2/2
Intel® Q170 Chipset GLQ170 PCH 6W Up to six SATA ports (6 Gbps); 14 total USB ports (up to 10 USB 3.0); up to 20 PCI Express* x1 gen 3.0 ports; 1x16, 2x8 or 1x8+2x4 PCI Express graphics support; memory channels/DIMM per channel = 2/2; support Intel® vPro™ technology
Intel® H110 Chipset GLH110 PCH 6W Up to four SATA ports (6 Gbps); 10 total USB ports (up to 4 USB 3.0); up to six PCI Express* x1 gen 2.0 ports; 1 x 16 PCI Express graphics support; memory channels/DIMM per channel = 2/1
View all Show less
