LDPC Intel® FPGA IP

Intel is discontinuing the intellectual property (IP) for LDPC, more information can be found in the product discontinuance notification (PDN2208).

Read the LDPC IP Core user guide ›

LDPC Intel® FPGA IP

5G Low-Density Parity-Check

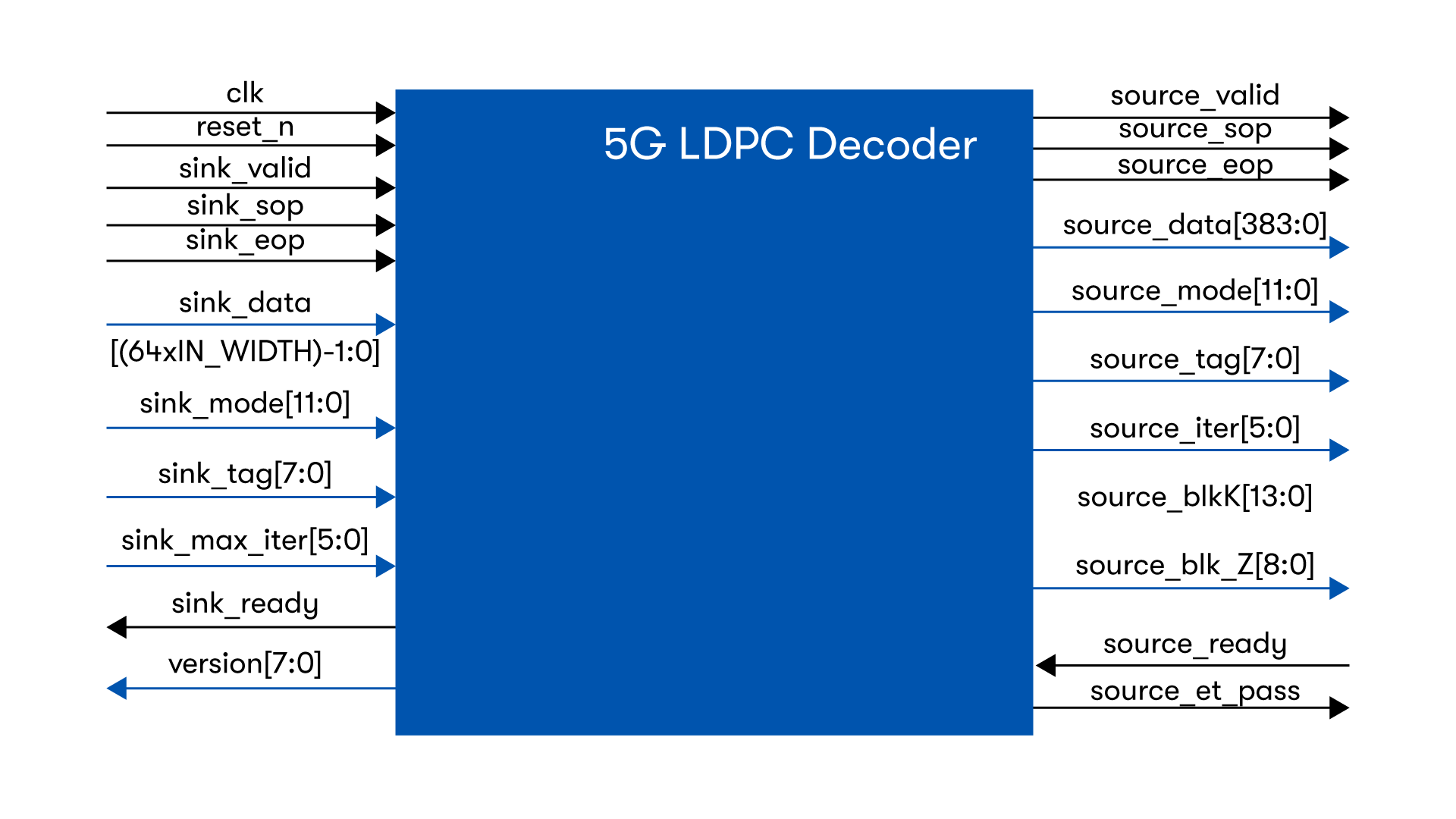

Low-density parity-check (LDPC) codes are linear error correction codes that allow you to transmit messages over noisy channels. Intel's 5G Low-Density Parity Check (LDPC) Intel FPGA Intellectual Property (IP) core is a high-throughput encoder or decoder that is compliant with 3rd Generation Partnership Project (3GPP) 5G specification. LDPC codes offer better spectral efficiency and support the high throughput for 5G new radio (NR). With the flexibility of Intel FPGAs, various configurations can be designed and implemented and re-designed to support any changes to base graph, code rate, Z and LR width.

Features

DOCSIS 3.1

Decoder

On-the-fly switching between code

WiMedia 1.5

Encoder/Decoder

Variable code-word length

Optional on-the-fly switching between code

Support short and long frame

DVB-S2

Encoder

NASA

Encoder/Decoder (CCSDS compliant)

Optional low resource architecture available

MSA or layered MSA decoding

MATLAB* bit-accurate models for simulation
View all Show less

All Decoders Have:

  • MATLAB models
  • Double-buffered architecture to reduce latency and boost throughput
  • Early stopping criterion
  • Parameters for:
  • Input parallelism
  • Decoding parallelism
  • LLR width
  • Attenuation factor
