Stratix® V DSP Development Kit

The DSP Development Kit, Stratix® V Edition provides a complete design environment that includes all the hardware and software you need to begin developing DSP-intensive FPGA designs immediately.

  • Overview

Use the Stratix® V DSP Development Kit to:

  • Develop and test PCI Express* (PCIe) designs at data rates up to Gen3 using the PCIe short card form factor-compliant development board.
  • Develop and test memory subsystems for DDR3 or QDR II memories.
  • Use the high-speed mezzanine card (HSMC) connectors to interface to one of over 35 different HSMCs provided by approved companies, supporting protocols such as Serial RapidIO®, 10 Gbps Ethernet, SONET, CPRI, OBSAI, and others.

Table 1. Ordering Information

Ordering Code Buy Stratix® V DSP Devices

 Contact Distributor for more information

DK-DEV-5SGSMD5N Buy now 5SGSMD5K2F40C2N

Step 1: Copy the Ordering Code.

Step 2: Select an Intel Distributor from Intel® Solutions Marketplace.

Step 3: Fill out the contact form and include the Ordering Code​.

View all Show less

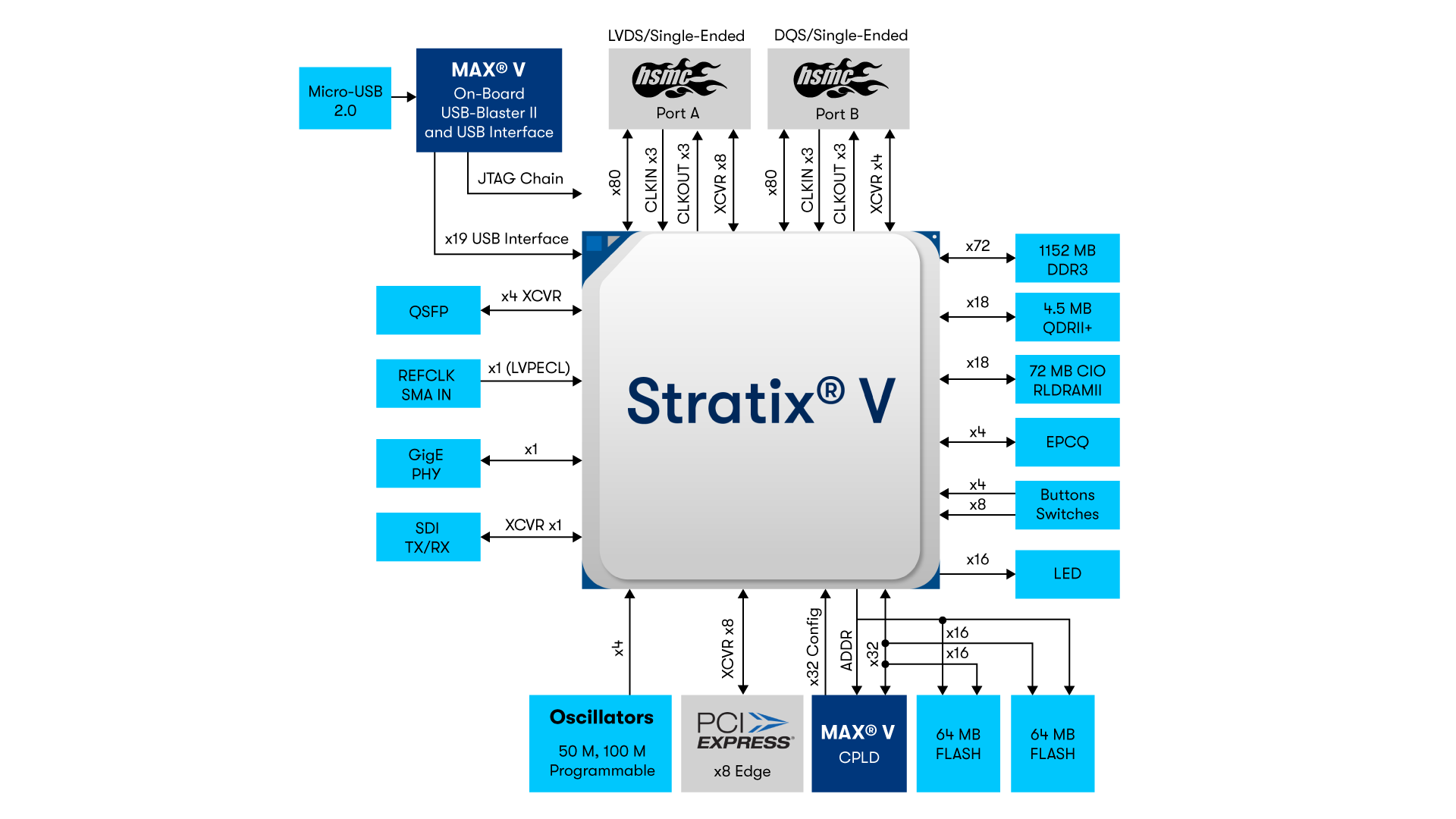

Table 2. Development Kit Contents and Features

What is included

Device

Stratix® V GS FPGA: 5SGSMD5K2F40C2N

Features and Connectors

Clocks

  • 50 MHz and 125 MHz programmable oscillators
  • SMA input (LVPECL)

General user input and output

  • 10/100/1000Mbps Ethernet PHY (SGMII) with RJ-45 (copper) connector
  • 16x2 character LCD
  • One 8-position dual in-line package (DIP) switch
  • Sixteen user LEDs
  • Three user push buttons

Memory devices

  • DDR3 SDRAM (1,152 MB, x72 bit wide)
  • QDR II+ SRAM (4.5 MB, 2 Mb x18 bit wide)
  • Footprint compatible to QDR II 4 Mb x18 bit wide
  • RLDRAM II (72-Mbyte CIO RLDRAM II with an 18-bit data bus)

Component and interfaces

  • PCIe x8 edge connector
  • Two HSMC connectors
  • SMB for serial digital interface (SDI) input and output
  • QSFP optical cage
  • 10/100/1000Mbps Ethernet PHY (SGMII) with RJ-45 (copper) connector
Cables and Adapters
  • Laptop DC input
  • PCIe edge connector
  • Nios® II processor web server and remote system update
Software  A one-year license for the Intel® Quartus® Prime Pro Edition design software is available upon purchase of the kit. Refer to the license activation instructions and FAQs.
View all Show less

Table 3. Documentation

 Design Files

Content Description

User Guide Documentation about setting up the development kit and using the included software (Intel® Quartus® Prime and installer package).
Reference Manual Detailed information about board components and interfaces.
Design Files A single installation file containing:
  • User Guide - Contains the user guide
  • Design Files - Contains schematics, and layout, Assembly, Bill of Materials
  • Examples - Board Test System: BTS GUI, Power GUI and Clock GUI
  • Examples - Golden Top project for pinout assignments management
  • Examples - Design Examples: Memory, XCVR, GPIO and PCIe 4.0

Download and unzip the Design Files first, then install the Board Test System.

View all Show less

Note:

Buyer represents that it is a product developer, software developer or system integrator and acknowledges that this product is an evaluation kit that is not FCC authorized, is made available solely for evaluation and software development, and may not be resold.
