MAX® 10 FPGA 10M50 Evaluation Kit

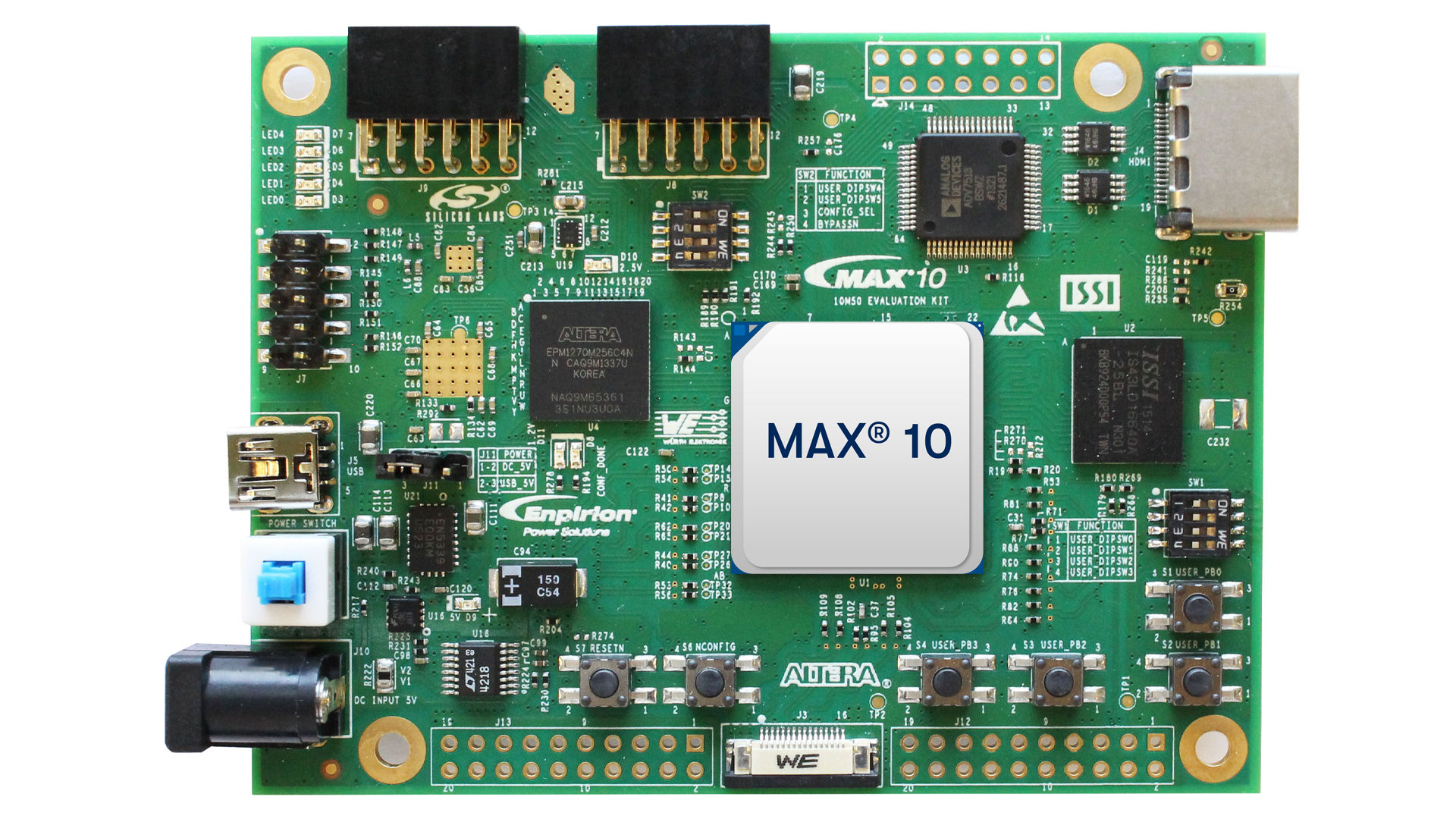

The MAX® 10 FPGA 10M50 Evaluation Kit provides an easy-to-use platform for evaluating the MAX® 10 FPGA technology.

You can use this kit to:

  • Develop designs for the 10M50D, F484 package FPGA.
  • Validate MIPI CSI-2 passive D-PHY solutions for both MIPI RX or TX implementation within the FPGA (MIPI cameras and IP sold separately).
  • Demonstrate video applications using the on-board HDMI output capability.
  • Interface the FPGA to the LPDDR2 memory at 200 MHz performance.
  • Read and write to the FPGA’s NOR flash memory.
  • Bridge to external devices through single ended user I/O or LVDS I/O using the through-hole vias.
  • Measure FPGA power (VCC_CORE).
  • Reuse the kit’s PCB board and schematic as a model for your design.

Table 1. Ordering Information

Ordering Code Check Distributor Availability
DK-DEV-10M50F484-B

Mouser

DigiKey
View all Show less

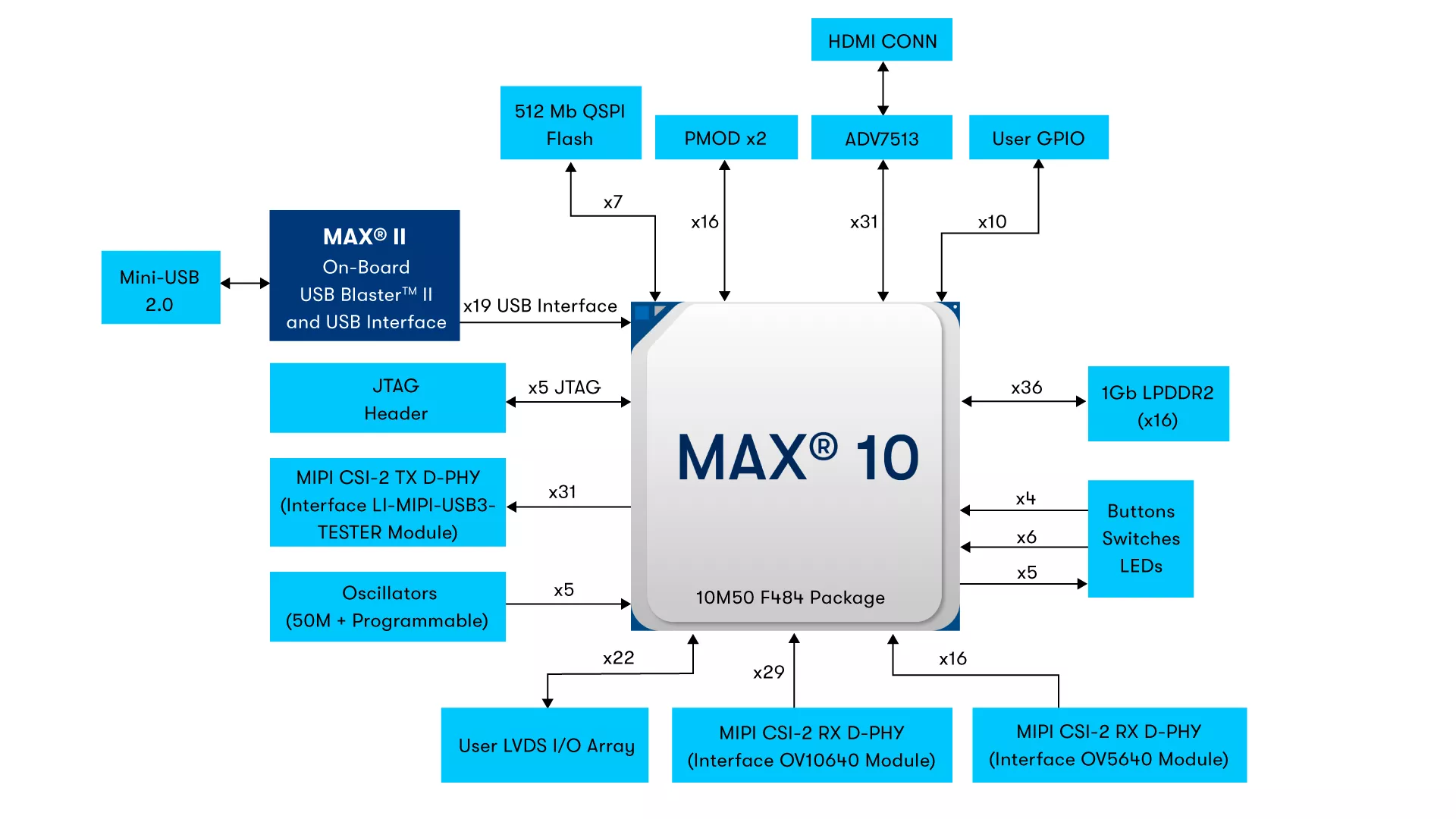

Table 2. Development Kit Contents and Features

What is included

Device

MAX® 10 FPGA (10M50, dual power supply, 484-pin FBGA)

Features and Connectors

Communication ports

  • One HDMI video output
  • Two 12-pin Pmod connectors
  • Two 36-pin and one 16-pin FFC connectors (for MIPI cameras/modules)

On-board clocking circuitry

  • 25 MHz single-ended, external oscillator clock source
  • Silicon Labs Si510 crystal oscillator
  • Silicon Labs Si5338 clock generator with programming frequency GUI

General input/output

General-purpose single-ended through-hole vias (2x5)

General-purpose LVDS through-hole vias (2x9 LVDS pairs, plus two clock pairs)

Five green user-defined LEDs

Four user-defined push buttons

Three user DIP switches

Memory

 Memory devices
  • 1 Gbits (64M x 16) LPDDR2
  • 512 Mbits quad serial peripheral interface (quad SPI) Flash

Cables and Adapters

Three yellow power-on LEDs

USB Y cable (USB type-A to mini type-B) for both on-board Altera® FPGA Download Cable II and 5 V/1 A power capability

Supports a DC power adapter option (5 V power supply and cord are sold separately)
View all Show less

Table 3. Documentation

Document

Description

Version

User Guide

Information about the evaluation board hardware and optional accessories (such as the MIPI cameras)

1

Schematic

PCB schematic, board revision A

A1.2

Installer Package

DK-DEV-10M50F484-B (v22.1std or higher)

Full installation of all files, including the user manual, BOM, layout, PCB, schematics, and all other documents or files


View all Show less
