Intel® MAX® 10 - 10M08 Evaluation Kit

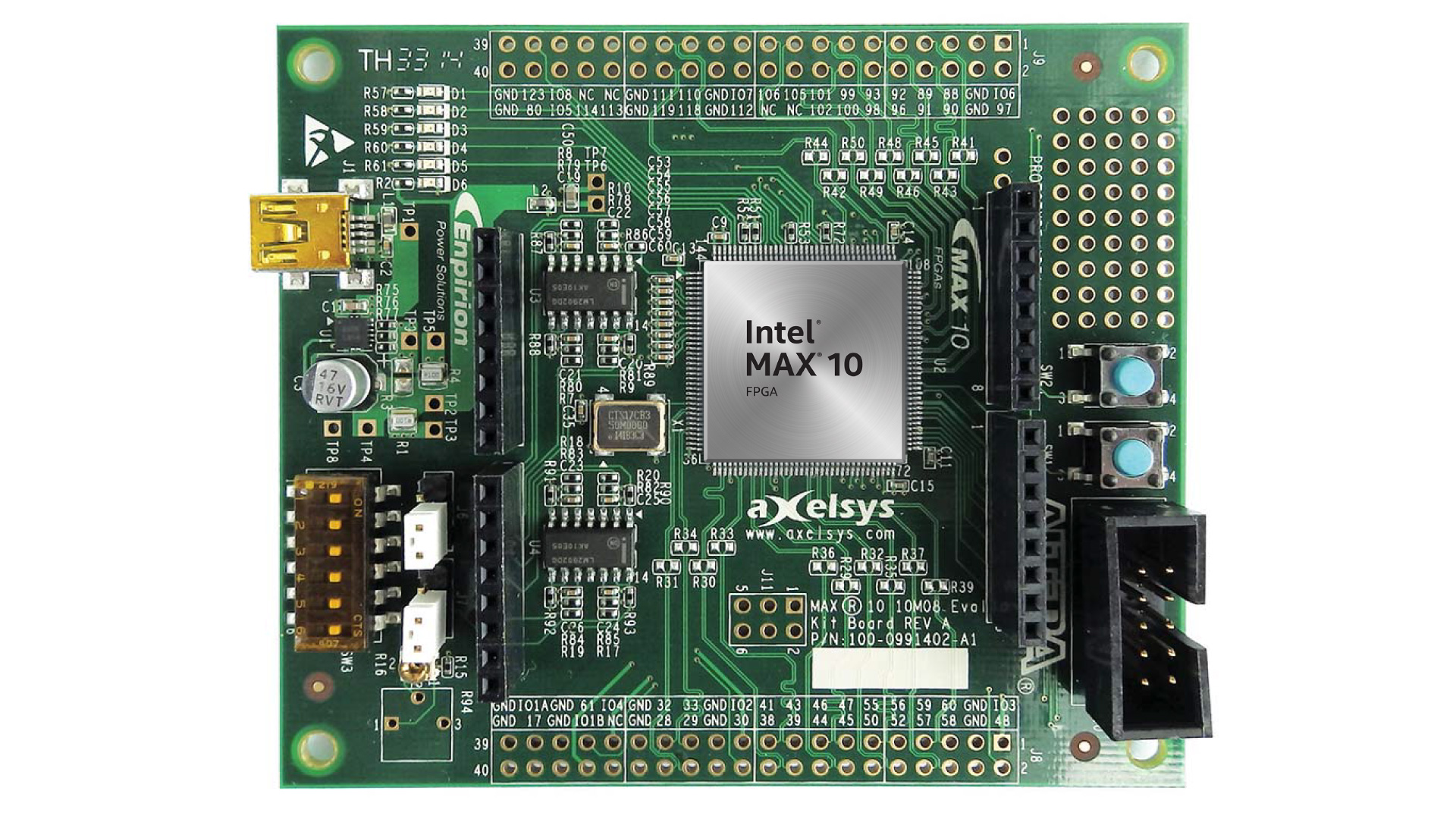

Intel® MAX® 10 FPGA Evaluation Kit is an entry-level board for the evaluation of the Intel® MAX® 10 FPGA technology.
With this evaluation board, you can:
- Develop designs for the 10M08S, 144-EQFP FPGA
- Measure FPGA power (VCC_CORE and VCC_IO)
- Bridge between different I/O voltages (adjustable VCC_IO on Bank 8)
- Read and write to the FPGA’s NOR flash memory
- Use the FPGA’s analog-to-digital converter embedded block to measure incoming analog signals
- Interface to external functions or devices via Arduino UNO R3 connectors or through-hole vias
- Reuse the kit’s PCB board and schematic as a model for your design
Table 1. Ordering Information
| Ordering Code | Buy | Device | Contact Distributor for more information |
|---|---|---|---|
| EK-10M08E144 | Buy now |
10M08SAE144C8G |
|
Table 2. Development Kit Contents and Features
| Parameters | Hardware |
|---|---|
| Device | MAX 10 FPGA 10M08SAE144C8G |
| Features & Connectors | Arduino headers to accept UNO R3 compatible Shields |
| General-purpose through-hole vias | |
| Type mini-B USB connector (power source) USB cable included |
|
| Footprint to install a potentiometer (customer must purchase and install) | |
| Cables & Adapters | AC adapter power cables |
Table 3. Documentation
| Design Files | Content Descriptions |
|---|---|
| User Guide › | Information about the evaluation kit hardware. Version 1.1 |
| Complete kit document installation › | Includes schematic, PCB, BOM, and other files
|
