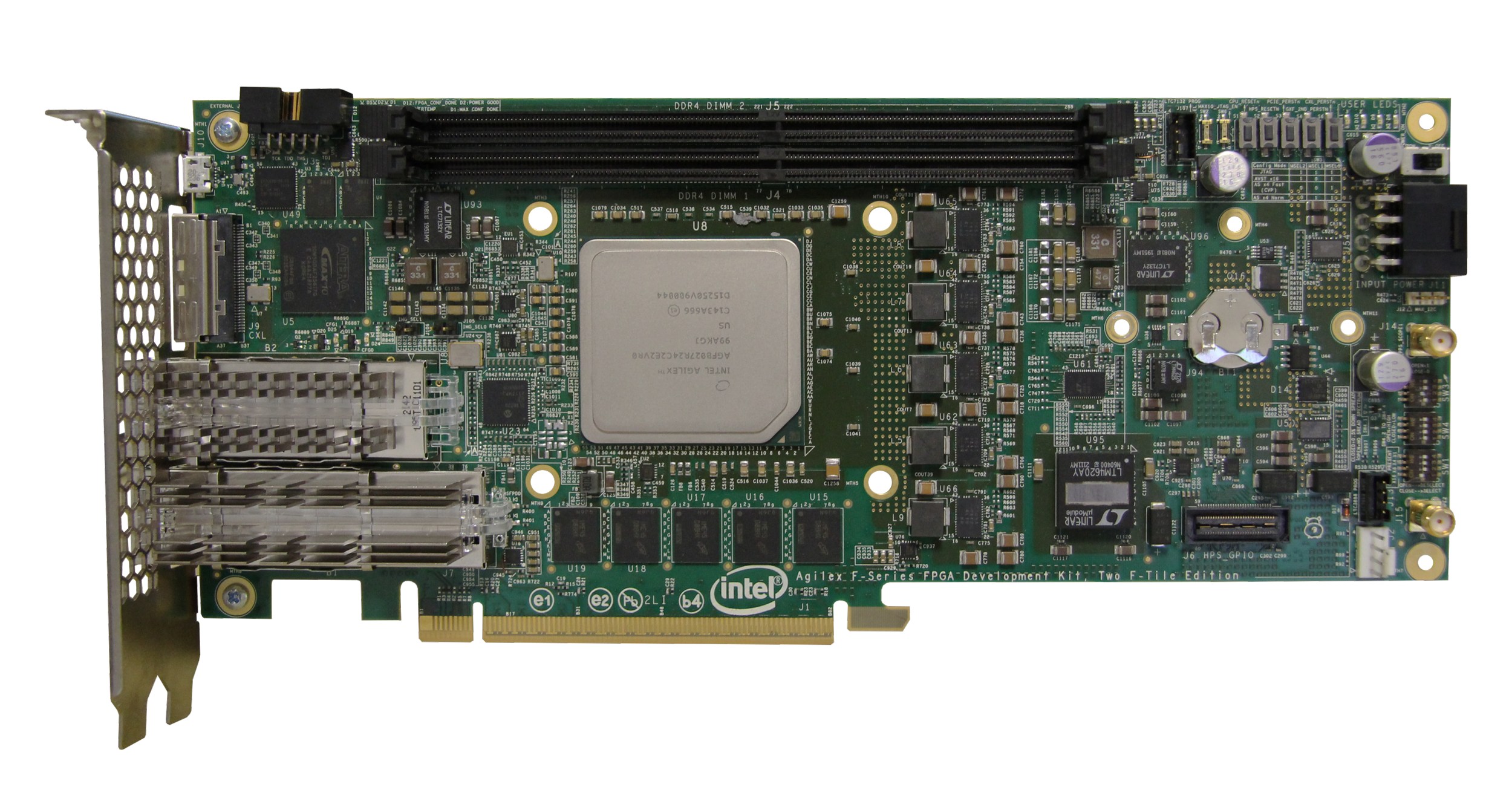

Intel Agilex® 7 FPGA F-Series Development Kit (2x F-Tile)
The Intel Agilex® 7 FPGA development kit provides a hardware development platform for evaluating the performance and features of the Intel Agilex® 7 FPGA F-Series with two F-tiles. It is a general purpose evaluation board in PCIe form factor with HPS hardware features.
Learn more about Intel Agilex® 7 FPGA F-Series devices ›
Use this Intel Agilex® 7 FPGA F-Series FPGA Development Kit to:
- Develop and test PCIe 4.0 designs using the PCI-SIG-compliant development board.
- Evaluate SoC features and performance using the Hard Processor System (HPS).
Table 1. Ordering Information
Ordering Code |
Buy |
Contact Distributor for more information |
|
|---|---|---|---|
DK-DEV-AGF027F1ES |
AGFB027R24C2E2VR2 (ES Silicon) |
Step 1: Copy the Ordering Code. Step 2: Select an Intel Distributor from Intel® Solutions Marketplace. Step 3: Fill out the contact form and include the Ordering Code. |
Table 2. Development Kit Contents and Features
| What is included | |
|---|---|
Board |
DK-DEV-AGF027F1ES: Intel Agilex® 7 FPGA F-Series Development Board mounted with Intel Agilex® 7 FPGA F-Series, (AGFB027) device in 2340A BGA package (2x F Tile) DK-DEV-AGF023FA: Intel Agilex® 7 FPGA F-Series Development Board mounted with Intel Agilex® 7 FPGA F-Series, (AGFD023) device in 2340A BGA package (2x F Tile) |
Device |
DK-DEV-AGF027F1ES: AGFB027R24C2E2VR2 (Only supports PCIe 4.0 x8 on ES version Development kit) or DK-DEV-AGF023FA: AGFD023R24C2E2VB |
Form Factor |
1x PCIe 4.0 x16 golden finger connected to P-Tile transceivers |
Features and Connectors |
FMC loopback card supporting transceiver, LVDS and single-ended I/Os One FMC low-pin count (LPC + 15 transceivers) connector Serial digital interface (SDI) channel |
DDR Memory |
3x DDR4 DIMMs sockets supporting 72 bits DDR4/DDR-T module in FPGA fabric interface 1x DDR4 DIMM socket supporting 72 bits DDR4 module for HPS memory interface Only one DDR4 DIMM module (8GB) is provided with each development kit |
(QSFP) Cages |
2x standard quad small-form-factor pluggable double density (QSFP-DD) cage |
HPS interface |
Supporting ETH, UART, SD card socket, eMMC and Mictor connector |
Cables and Adapters |
USB2.0 Micro cable, Ethernet cable, 240W power adapter and NA/EU/JP/UK cords, ATX power convert cable - 24pin to 6pin |
Software |
A one-year license for the Intel® Quartus® Prime Pro Edition design software is included with the purchase of the kit. Refer to Intel® FPGA Software Installation and Licensing for more information. |
Table 3. Documentation
| Design Files | Content Description |
|---|---|
Documentation about setting up the development kit and using the included software (Intel® Quartus® Prime and installer package) |
|
Installer Package DK-DEV-AGF027F1ES (23.1 or higher) |
A single installation file containing:
Download and unzip the Design Files first, then install the Board Test System. Note: Please see KDB if experiencing JTAG server Timeout when configuring with Intel® Quartus® Prime software v20.4 |
Board Schematic |
Power Tree for Intel Agilex 7 FPGA F-Series Development Kit DK-DEV-AGF027F1ES |
| Intel Agilex® FPGA F-series (2x F Tile ) Golden System Reference Design |
The Intel Agilex® 7 F-Series GSRD page on Rocketboards.org has instructions for getting started on hardware and software designs that utilize the HPS on Intel Agilex® 7 FPGA F-Series. |
Note:
Buyer represents that it is a product developer, software developer or system integrator and acknowledges that this product is an evaluation kit that is not FCC authorized, is made available solely for evaluation and software development, and may not be resold.
