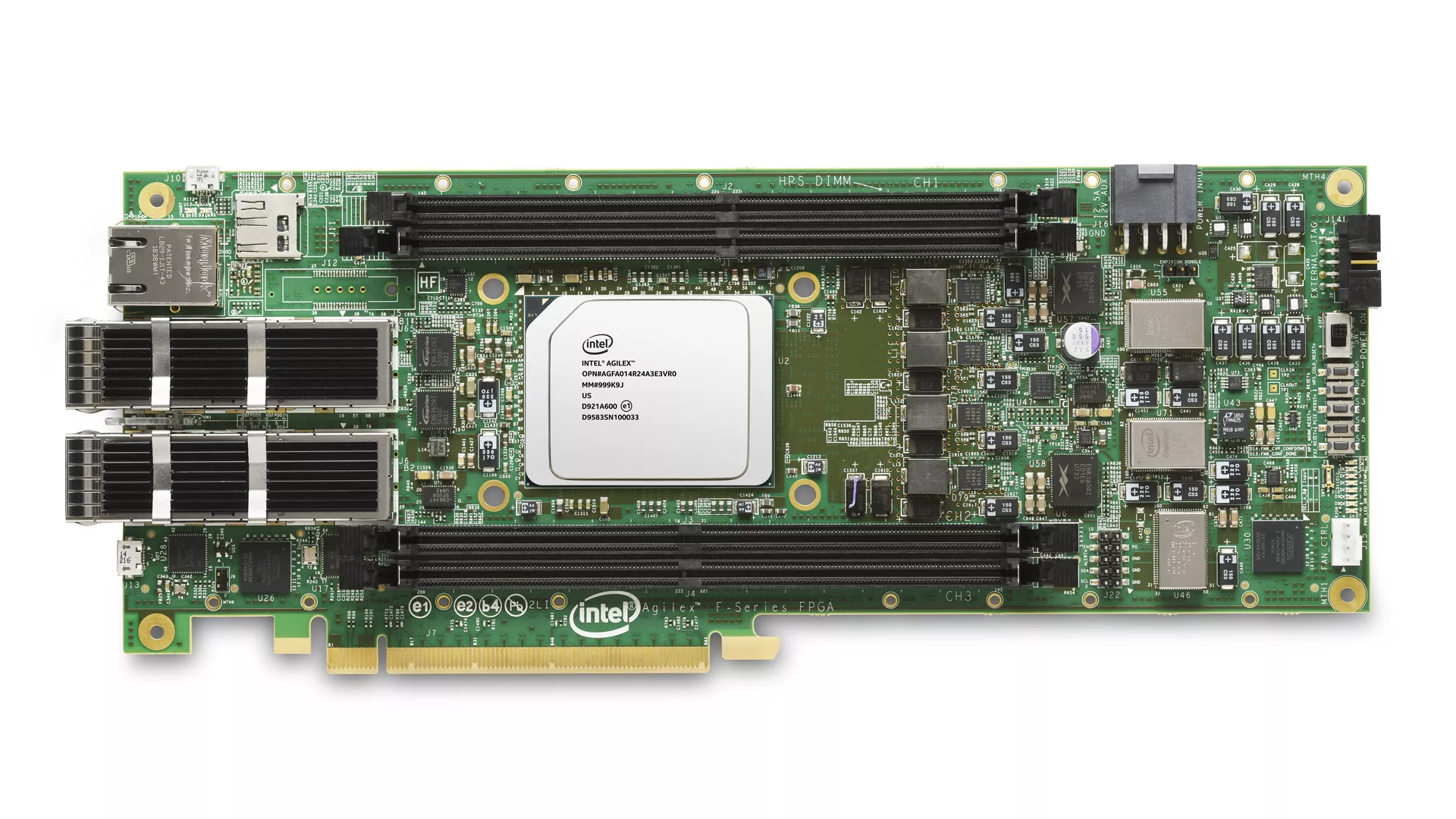

Intel Agilex® 7 FPGA F-Series Development Kit (P-Tile and E-Tile)

The Intel Agilex® 7 FPGA F-Series development kit delivers a complete design environment that includes all the hardware and software within a PCI Express (PCIe) form factor you need to start taking advantage of the performance and capabilities available in Intel Agilex® 7 FPGA F-Series FPGAs with P-Tile and E-Tile for your design needs.

Learn more about Intel Agilex® 7 FPGA F-Series devices ›

Use this Intel Agilex® 7 FPGA F-Series FPGA Development Kit to

  • Develop and test PCIe 4.0 designs using the PCI-SIG-compliant development board
  • Evaluate SoC features and performance using the Hard Processor System (HPS)

Table 1. Ordering Information

Ordering Code

Buy

Intel Agilex® 7 FPGA F-Series Device

Contact Distributor for more information

DK-DEV-AGF014EA

Buy now

AGFB014R24B2E2V

Step 1: Copy the Ordering Code.

Step 2: Select an Intel Distributor from Intel® Solutions Marketplace.

Step 3: Fill out the contact form and include the Ordering Code​.

View all Show less

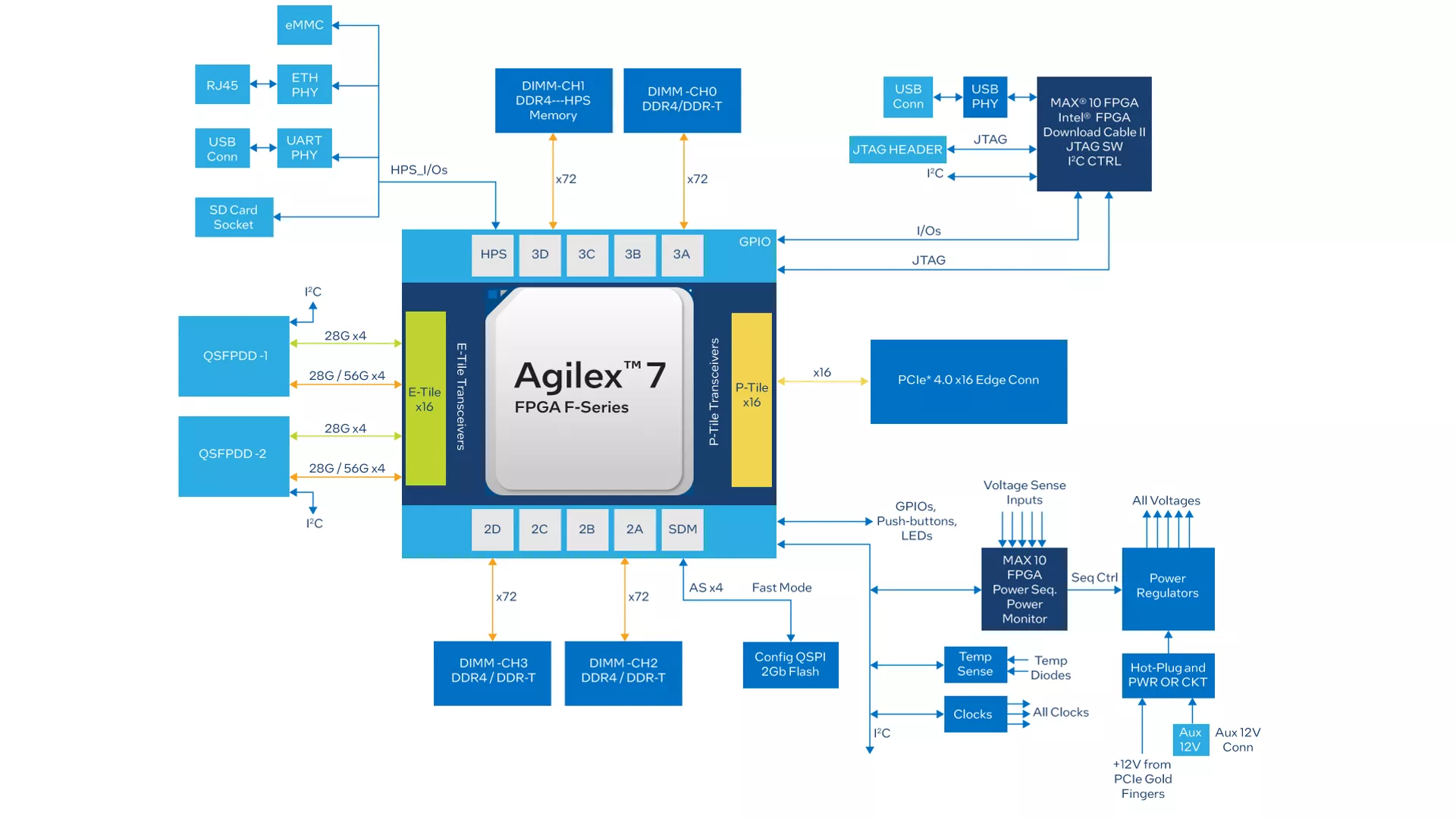

Table 2. Development Kit Contents and Features

What is included

Board

Development Board mounted with Intel Agilex® 7 FPGA F-Series, 1400 KLE, 2486A package

Device

AGFB014R24B2E2V

Form Factor

1x PCIe 4.0 x16 golden finger connected to P-Tile transceivers

Features and Connectors

FMC loopback card supporting transceiver, LVDS and single-ended I/Os

One FMC low-pin count (LPC + 15 transceivers) connector

Serial digital interface (SDI) channel

DDR Memory

3x DDR4 DIMMs sockets supporting 72 bits DDR4/DDR-T module in FPGA fabric interface

1x DDR4 DIMM socket supporting 72 bits DDR4 module for HPS memory interface

Only one DDR4 DIMM module (8GB) is provided with each development kit

(QSFP) Cages

2x standard quad small-form-factor pluggable double density (QSFP-DD) cage

HPS interface

Supporting ETH, UART, SD card socket, eMMC and Mictor connector

Cables and Adapters

USB2.0 Micro cable, Ethernet cable, 240W power adapter and NA/EU/JP/UK cords, ATX power convert cable - 24pin to 6pin

Software

A one-year license for the Intel® Quartus® Prime Pro Edition design software is included with the purchase of the kit. Refer to Intel® FPGA Software Installation and Licensing for more information.

View all Show less

Table 3. Documentation

Design Files Content Description

User Guide

Documentation about setting up the development kit and using the included software (Intel® Quartus® Prime and installer package)

Installer Package

DK-DEV-AGF014EA (v23.2 or higher)



A single installation file containing:

  • User Guide - Contains the user guide
  • Design Files - Contains schematics, and layout, Assembly, Bill of Materials
  • Examples - Board Test System: BTS GUI, Power GUI and Clock GUI
  • Examples - Golden Top project for pinout assignments management
  • Examples - Design Examples: Memory, XCVR, GPIO and PCIe 4.0

Download and unzip the Design Files first, then install the Board Test System.

Note: See KDB if experiencing JTAG server Timeout when configuring with Intel® Quartus® Prime software v20.4

Board Schematic

Power Tree for Intel Agilex 7 FPGA F-Series Development Kit

DK-DEV-AGF014E3ES (-3V)

DK-DEV-AGF014E2ES ( -2V)

View all Show less
