Agilex™ 5 FPGA E-Series 013B Development Kit
Agilex™ 5 FPGA E-Series 013B Dev Kit delivers a complete prototyping and reference platform design environment that includes both hardware and software. It is a general-purpose evaluation board in a table top form factor with HPS hardware features enabling you to develop industrial, video, and other embedded and edge applications. It is upgradable to PCIe Form Factor with an optional PCIe Daughter card.
Learn more about Agilex™ 5 FPGA E-Series devices ›

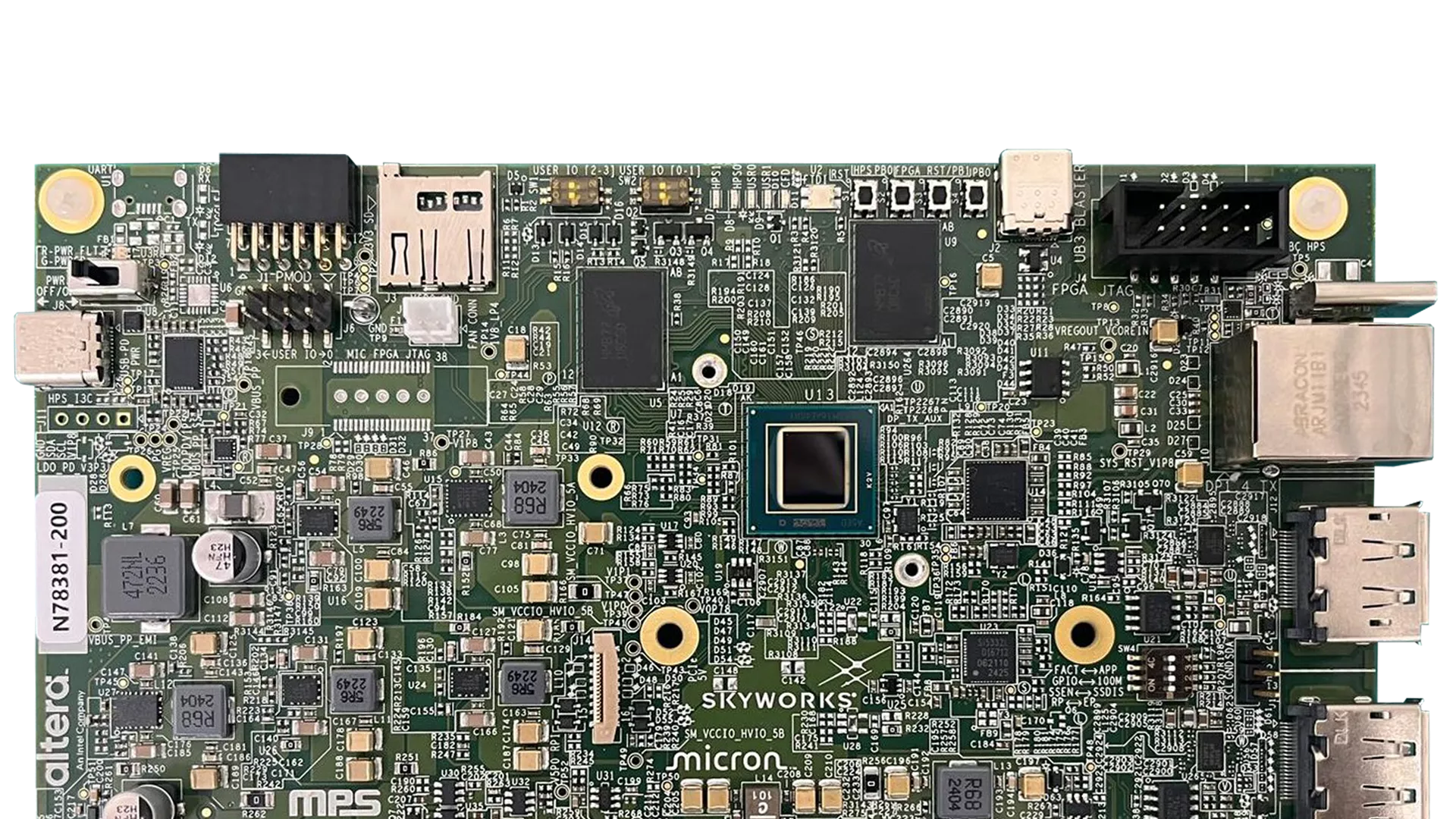

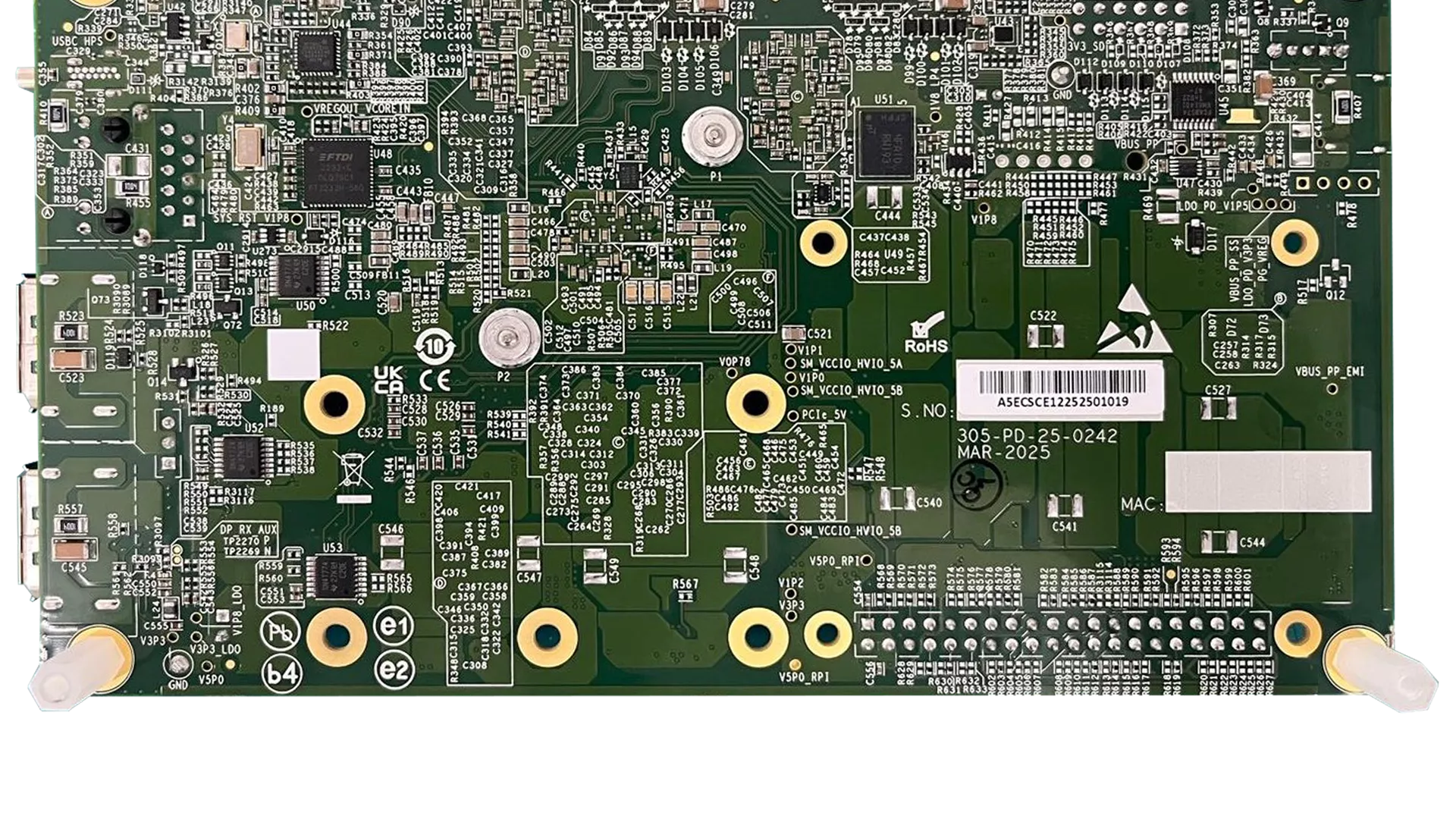

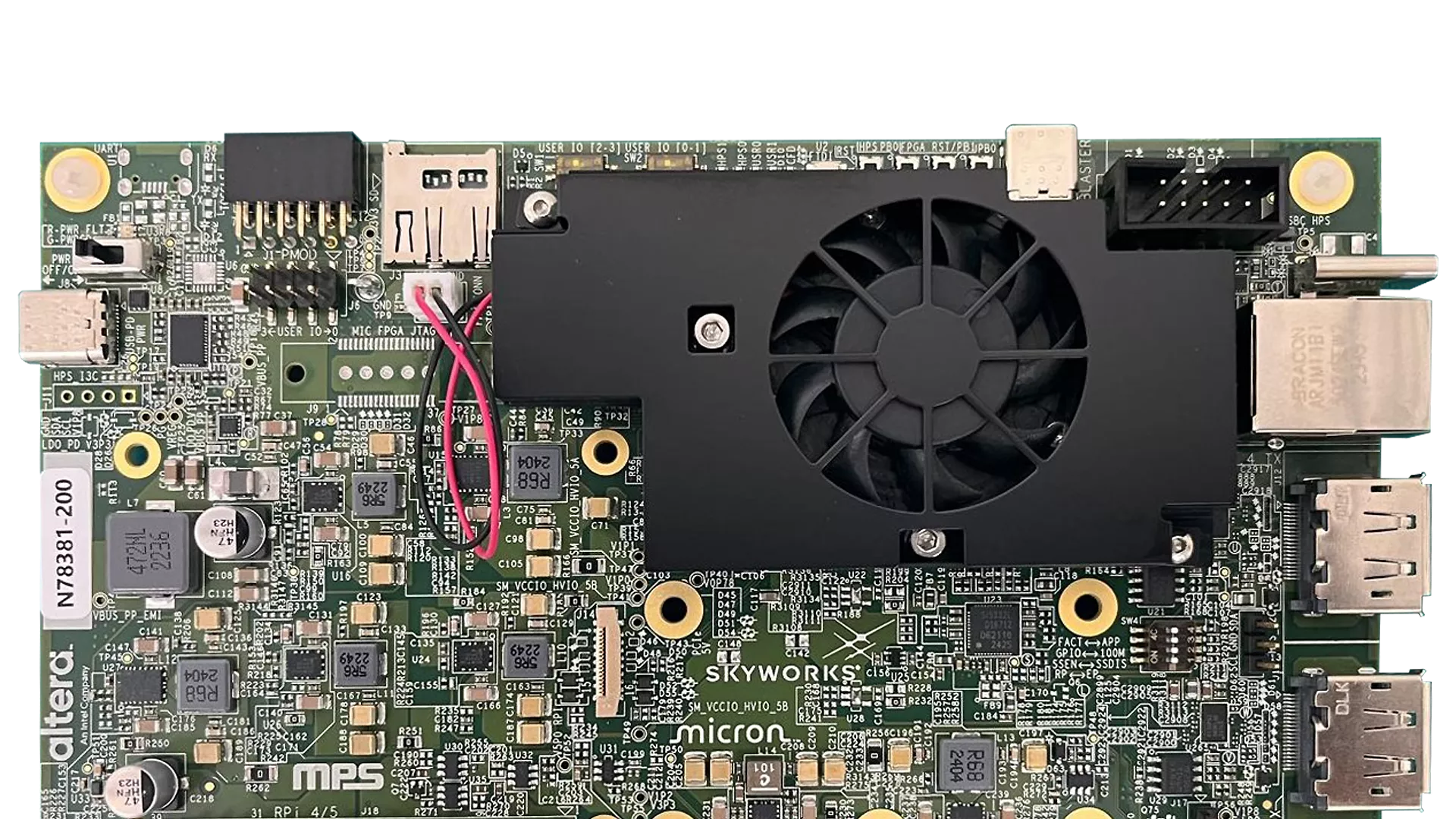

This kit comes in a tabletop form factor with an optional daughter card to plug into the PCIe 3.0 x1 slot. It is packed with a robust set of features and connectors designed to meet your edge and embedded applications.

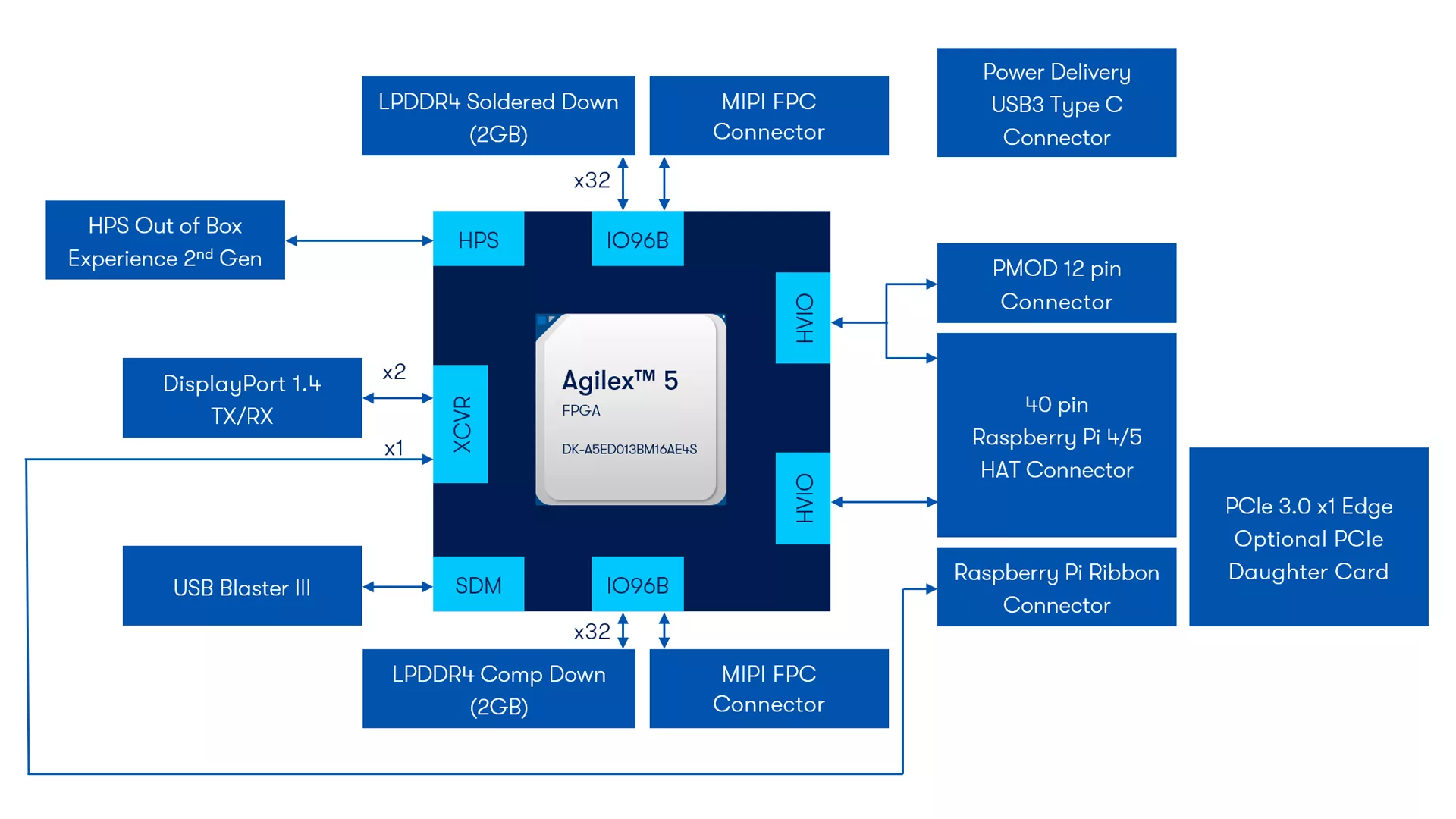

The features include:
- DisplayPort 1.4 digital display interface connector with enough bandwidth to handle a 4K UHD stream at up to 120Hz with 24-bit/px color or a 5K display at up to 60Hz with 30-bit/px color. It even supports 8K video.
- Two MIPI interface connectors for mobile device cameras and displays, and a wide range beyond that, especially for image transmission in FA and in-vehicle equipment.
- PCIe 3.0 x1 connectivity to plug into a host system through a daughtercard.
- 2x LPDDR4 2GB combines performance, power, latency, and physical space, making it energy-efficient and suitable for battery-operated applications and ultra-portables.
- Connectivity to additional peripherals and devices through Raspberry Pi 4/5 HAT (Hardware Attached on Top) add-on boards.
- Interface with a line of small I/O interface boards that allow sensitive signal conditioning circuits and high-power drive circuits to be placed where they are most effective - near sensors and actuators through the Pmod connector.
- Interface with SoC through On-Board HPS Enablement hardware
Table 2. Development Kit Contents and Features
| What is Included | |
|---|---|
| Device | A5ED013BM16AE4SR1 |
| Form Factor | Tabletop upgradable to PCIe through a daughtercard (To be purchased separately. Ordering part number: DC-A3SOCPCIE) |
| Interfaces | 2x DisplayPort 1.4 connectors (1 for TX, 1 for RX) 2x MIPI connectors 1x Pmod connector 1x Rasberry Pi 4/5 HAT connector 1x USB Type C connector 1x Ethernet (1Gb) RJ45 connector 1x Micro SD Card slot |
| DDR Memory | 2x LPDDR4 2GB (x32 component soldered) |
| FPGA Programming and Configuration | Onboard USB Blaster III |
| Power Adapter | Power delivery through USB3 Type C connector (Power adapter does not ship with the kit) |
| Software | A no-cost license will be available for download from within Quartus Prime Pro after installation. |
Table 3. Documentation
| Design Files | Content Description |
|---|---|
| User Guide | Documentation about setting up the development kit and using the included software (Quartus® Prime and installer package). |
Installer Package DK-A5E013BM16AEA (v25.1 or higher) |
A single installation file containing:
|
| Board Schematic | DK-A5E013BM16AEA |
