4.5.5. GTS Reset Sequencer IP Clock

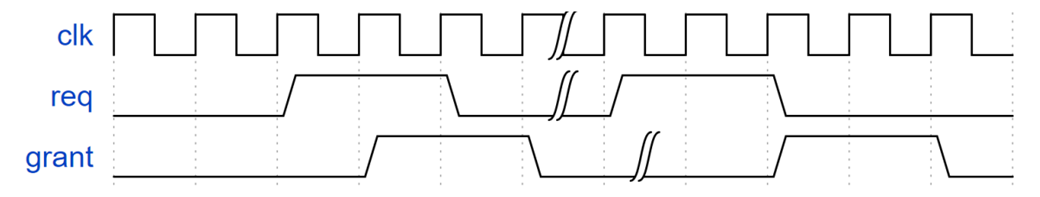

Figure 18. GTS Reset Sequencer IP Interface Timing Diagram

req refers to request signal from the SRC to the GTS Reset Sequencer IP for reset operation. It asserts when there is a request to toggle reset.

The grant signal is from the GTS Reset Sequencer IP to the SRC. It asserts when the reset request is granted by the Reset Sequencer.

This signal handshake between req and grant is an internal process that operates without user intervention.
