5.1.1.1.6. BAM+BAS+MCDMA Mode

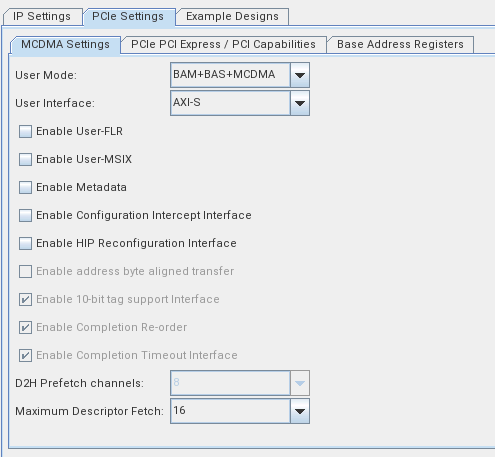

Figure 11. BAM+BAS+MCDMA Mode Parameters
Table 43.  BAM+BAS+MCDMA Mode Parameters
Parameter Value Default Value Description
User Interface AXI-S AXI-S

Sets the type of user interface.

Currently AXI Stream interface is supported
Enable User-FLR On / Off Off

Select to enable User FLR interface which allows passing of FLR signals to the user side application.
Enable User-MSIX On / Off Off

User MSI-X enables the user application to initiate interrupts through MCDMA.

This option is available in the MCDMA, BAM + MCDMA, and BAM + BAS + MCDMA modes.

Enable Metadata On / Off Off

Enables or disables metadata
Enable Configuration Intercept Interface On / Off Off

Select to enable user configuration intercept interface
Enable HIP Reconfiguration Interface On / Off Off

Select to enable Hard IP reconfiguration interface
Enable address byte aligned transfer Off Off

This option is not supported in the current release.
Enable 10-bit tag support interface On On

Enables 10-bit tag support interface
Enable Completion Re-order On On

Enables completion re-order
Enable Completion Timeout Interface On On

Enables completion timeout interface
