2.3.2. Example: Byte Swizzling for a x32 DDR4 interface, using a memory device of x8 width

Example: Byte Swizzling for a x32 DDR4 interface, using a memory device of x8 width

Table 8.
Lane Number BL0 BL1 BL2 BL3 BL4 BL5 BL6 BL7
Default Placement DQ[0] AC[0] AC[1] AC[2] DQ[1] DQ[2] DQ[3] GPIO
After Byte Swizzling DQ[2] AC[0] AC[1] AC[2] DQ[1] DQ[0] DQ[3] GPIO
BYTE SWIZZLE 2 X X X 1 0 3 X

This example illustrates swizzling DQS group 0 with DQS group 2. The BYTE_SWIZZLE_CH0 denotes the DQS group implemented in the lane after the swizzling. X indicates that the lane is not used as a data lane (meaning that it serves as an address/command lane or is not used by the EMIF interface).

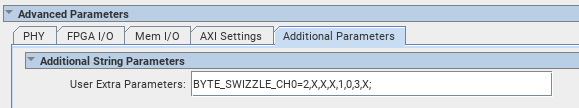

To achieve this swizzling, you must enter BYTE_SWIZZLE_CH0=2,X,X,X,1,0,3,X”; in the User Extra Parameters field of the Additional Parameters tab in the Advanced Parameters section of the General IP Parameters tab in the External Memory Interfaces IP parameter editor.

Figure 26. Swizzling DQS group 0 with DQS group 2
