3.3.1. Simulation Results for the 5G Polar IP

Results with the VCS Simulator
Figure 5. Encoder with old parametersThe input after a previous packet without new parameters

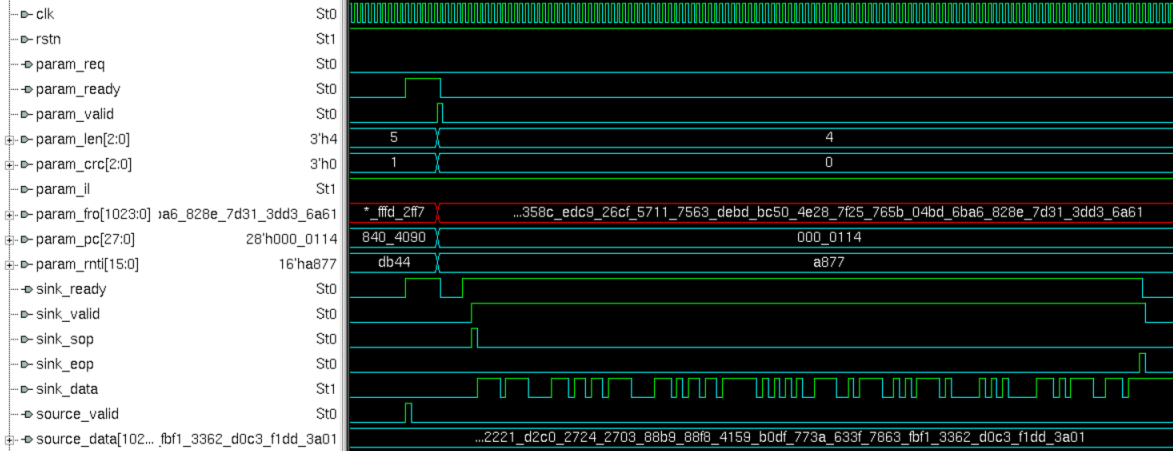

Figure 6. Encoder with new parametersThe input after a previous packet with new parameters

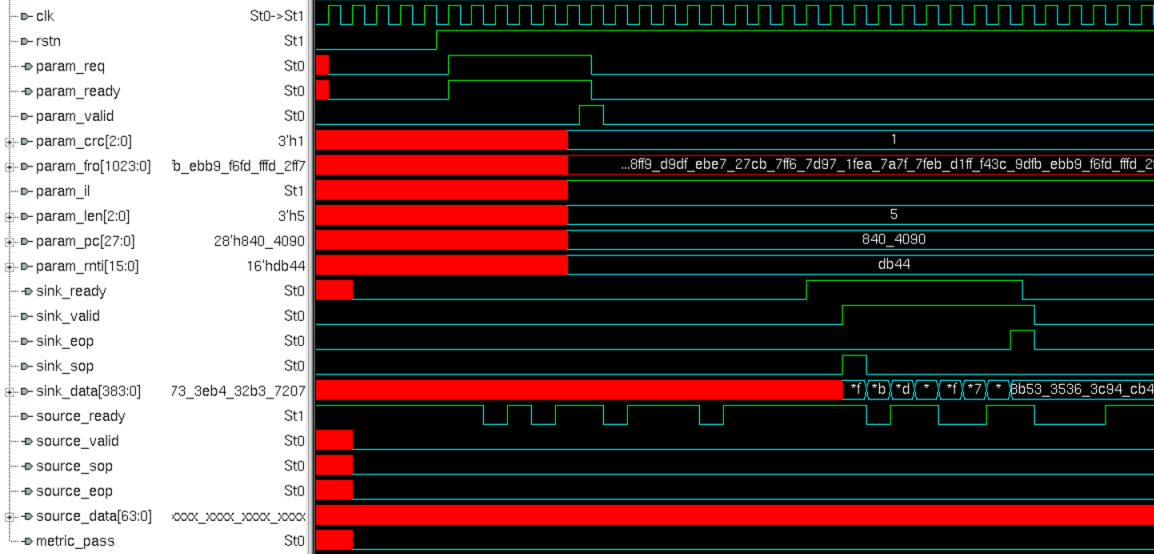

Figure 7. Encoder after reset

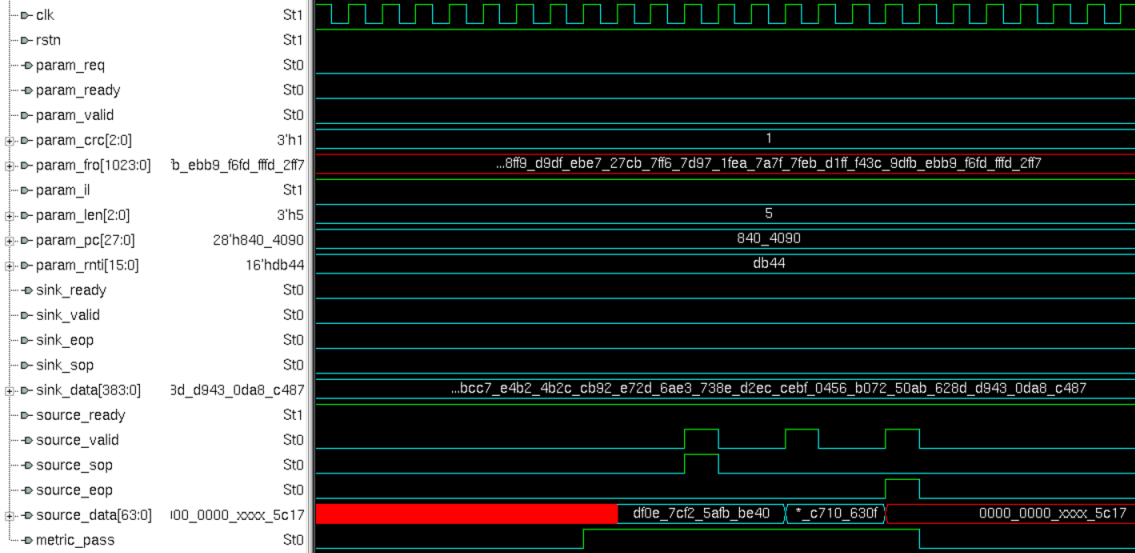

Figure 8. Decoder output

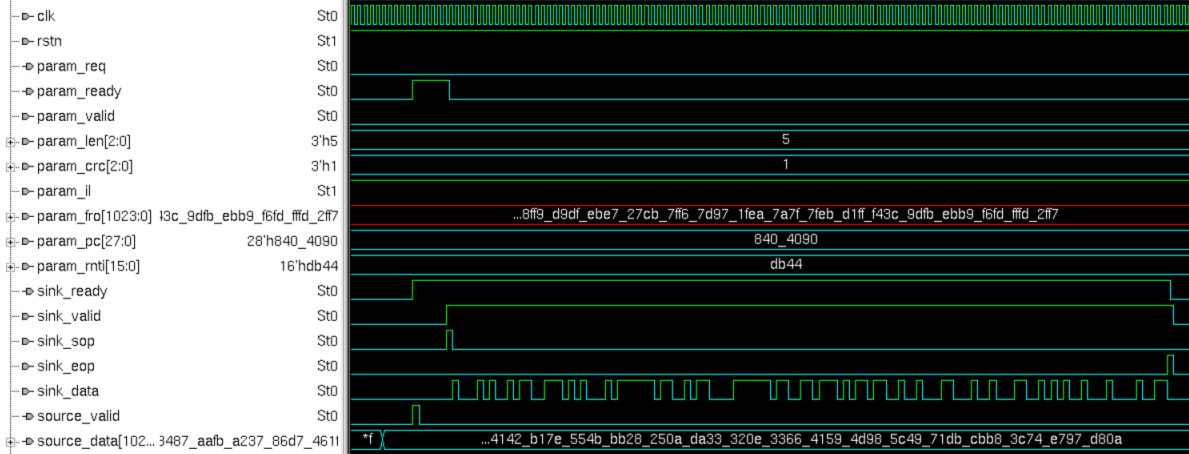

Figure 9. Decoder input with old parametersThe input after a previous packet without new parameters.

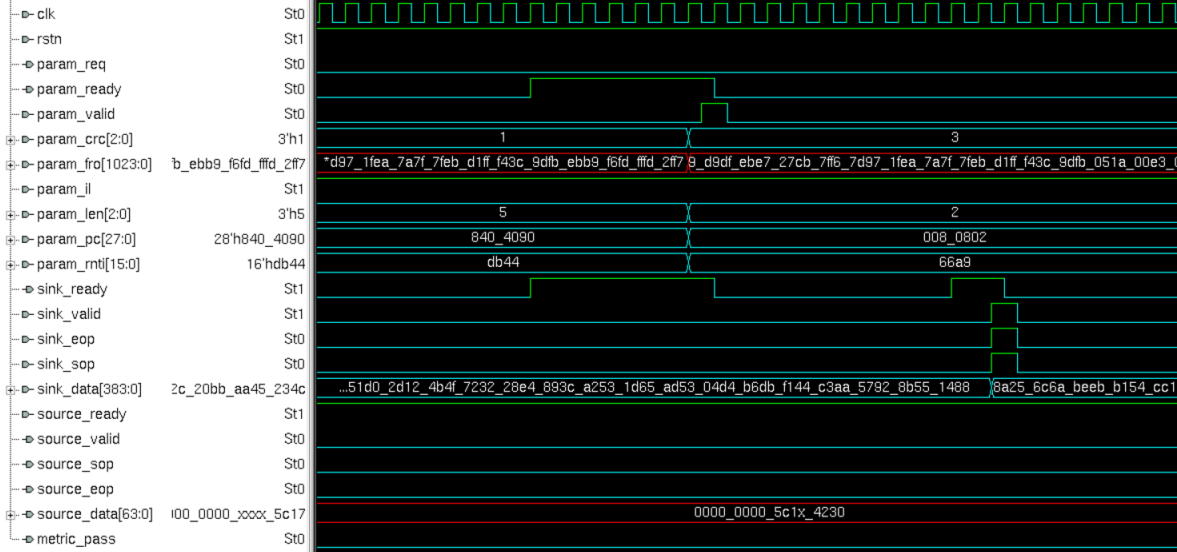

Figure 10. Decoder input with new parametersThe input after a previous packet with new parameters

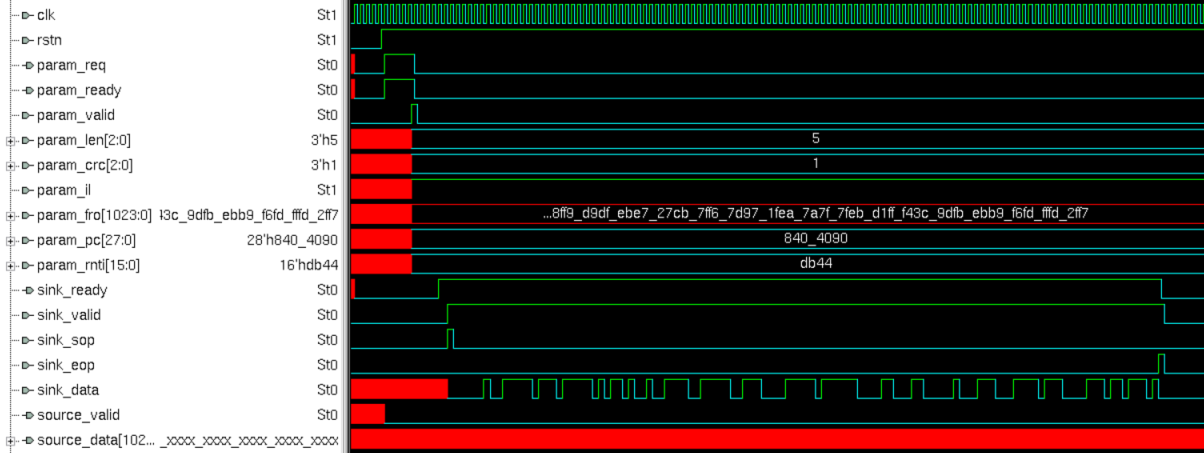

Figure 11. Decoder after reset
