4.7.4. Constraining Regions for Fault Injection

After loading an SMH file, you can direct the Fault Injection Debugger to operate on only specific ASD regions.
To specify the ASD region(s) in which to inject faults:
  1. Right-click the FPGA in the Device chain box, and click Show Device Sensitivity Map.
  2. Select the ASD region(s) for fault injection.

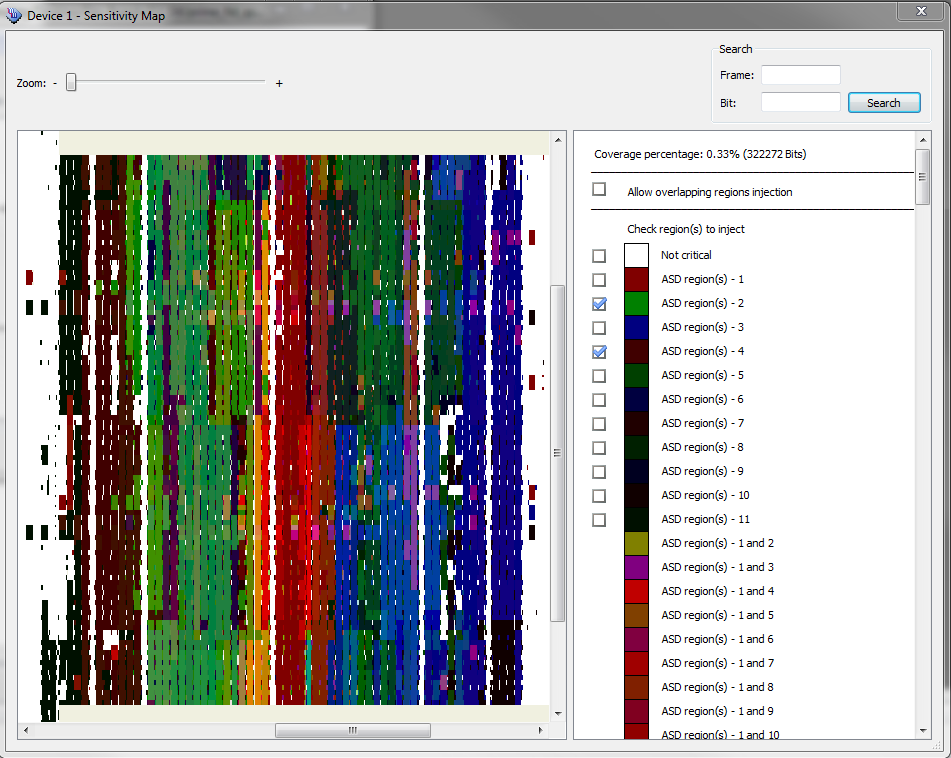

Figure 12. Device Sensitivity Map Viewer
