3.5.8.3.2.1. DMA Test Beyond 256 Channels

If the design example is generated with the number of channels greater than 256, follow this procedure to run a DMA test.

  1. Define the following software flag in

    p0_software/dpdk/dpdk/patches/v21.11.2/dpdk-stable/drivers/net/mcdma/rte_pmd_mcdma.h:

    #define IFC_MCDMA_DIDF

  2. Configure the mem zone in p0_software/dpdk/dpdk/patches/v21.11.2/dpdk-stable/config/rte_config.h.

    #define RTE_MAX_MEMZONE 20480

  3. Undefine single function mode in

    p0_software/dpdk/dpdk/patches/v21.11.2/dpdk-stable/examples/mcdma-test/perfq/meson.build.

    -UIFC_MCDMA_SINGLE_FUNC

  4. Rebuild the DPDK application using the following commands for the new settings to take effect.

    $ cd p0_software/dpdk/dpdk/patches/v21.11.2/dpdk-stable/

    $ sudo meson build --reconfigure

    $ sudo DESTDIR=install ninja -C build install

    $ cd build

    $ sudo meson configure -Dexamples=mcdma-test/perfq \
-Denable_kmods=true

    $ sudo ninja

  5. Navigate to the perfq folder:

    $ cd examples/mcdma-test/perfq

  6. Verify the Packet Generate/Check design example variant using the following command:
    $ sudo ./build/mcdma-test -m 20480 -l 0-8 -- -p 64 -l 1 -z \
-d 1 -c 2048 -a 4

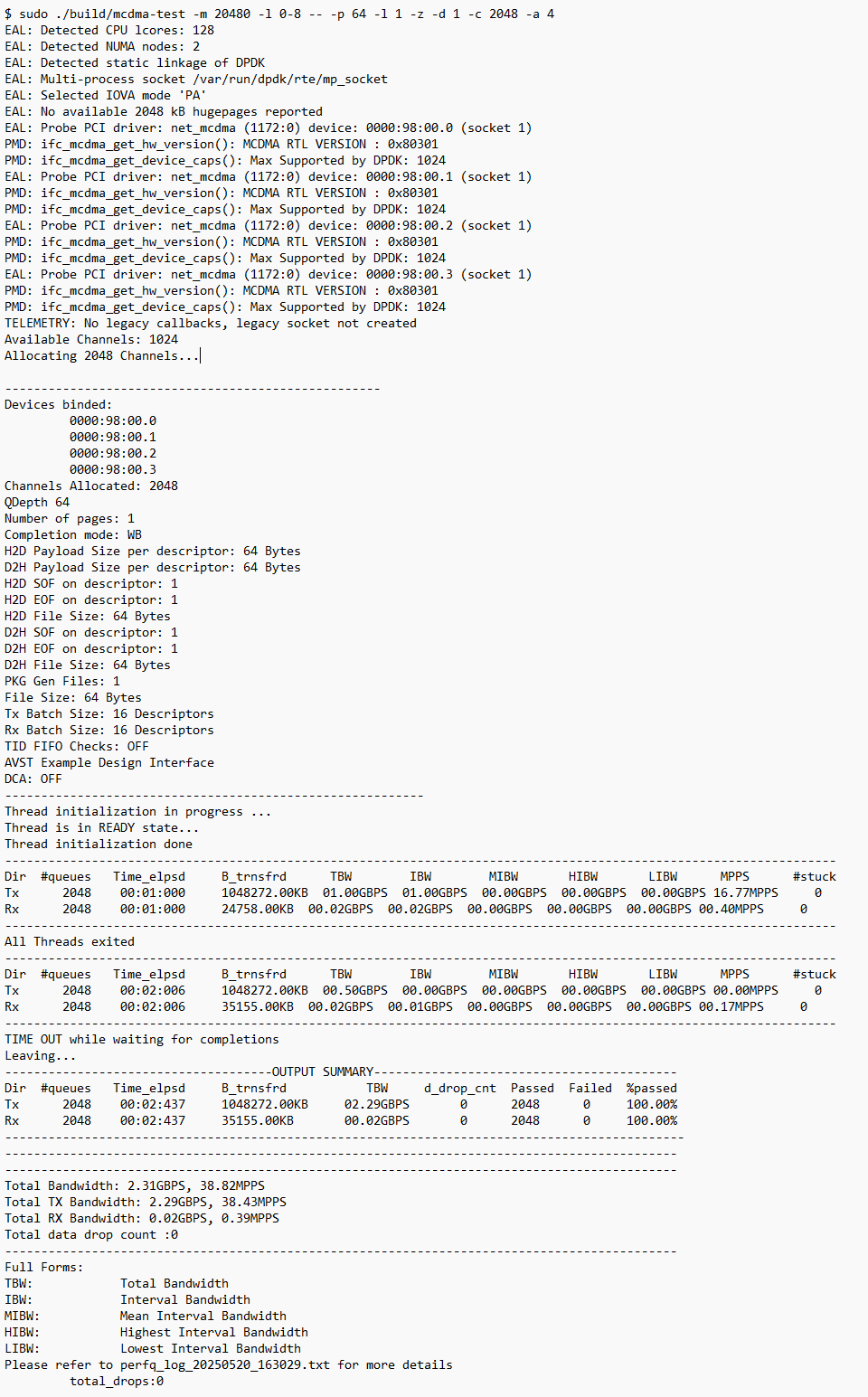

Figure 44. Example Command Output for AVST/AXIST
Note: For a 2048-channel test, the following configurations can be used:
  • With SR-IOV: 2 PFs (512 channels per PF) and 2 VFs per PF (256 channels per VF).
  • Without SR-IOV: 4 PFs (512 channels per PF).
Note:

In the current release, a single page is supported in DIDF mode.

In the current release, a simultaneous process is not supported in DIDF mode. You can run one process with 2K channels.
