F.2. Generate the R-Tile PCIe PIO Design Example

This example generates the R-Tile Avalon-ST FGPA IP for PCIe PIO design example that supports Gen5 1x16 PIPE mode simulation.

  1. In the R-Tile Avalon-ST PCIe IP Parameter Editor, configure the IP as a Gen5 1x16 Endpoint.

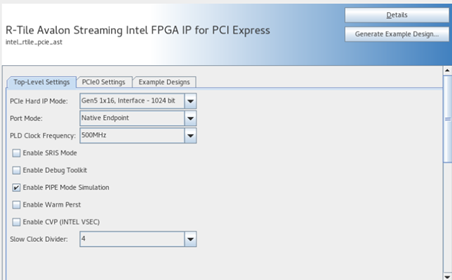

    Figure 81. R-Tile Avalon-ST FPGA IP for PCI Express Top-Level Settings
  2. Under the Example Designs tab, ensure Enable PIPE mode Simulation for Example Design is enabled to support PIPE mode simulation.

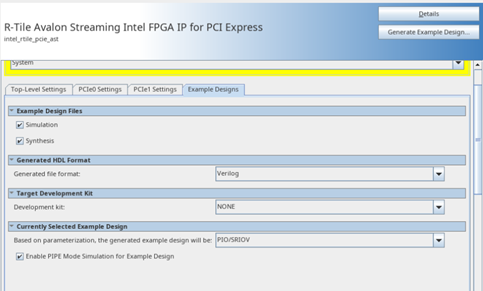

    Figure 82. R-Tile Avalon-ST FPGA IP for PCI Express Example Designs Tab
  3. Click Generate Example Design... at the top-right corner of the window and select a directory for the design example project to be generated in.
