5.3.1. Design Example Files

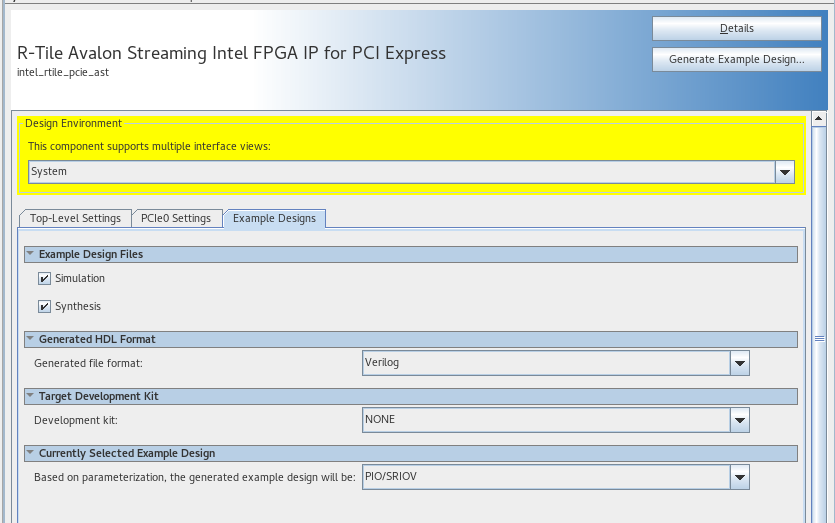

Figure 58. Design Examples Tab
Table 110.  Design Example Files
Parameter Value Default Value Description
Simulation True/False True When the Simulation box is checked, all necessary filesets required for simulation will be generated. When this box is not checked, filesets required for simulation will not be generated. Instead, a Platform Designer design example system will be generated.
Synthesis True/False True When the Synthesis box is checked, all necessary filesets required for synthesis will be generated. When this box is not checked, filesets required for synthesis will not be generated. Instead, a Platform Designer design example system will be generated.
Level Two Title
