4.4. Intel® FPGA PTC Searchable Drop-Down Lists
Starting with the 23.3 release, PTC now supports using partial or full-text string search on all drop-down lists, in all GUI components, including the resource pages.
The following images show examples of searching with a partial string where the drop-down list gets refined and displays a subset of values matching the string:

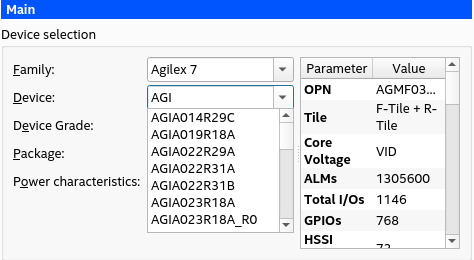

Figure 29. Example 1: Refining the Device Drop-Down List
![](/content/dam/docs/us/en/683445/23-4/xoz1691293683660.png)

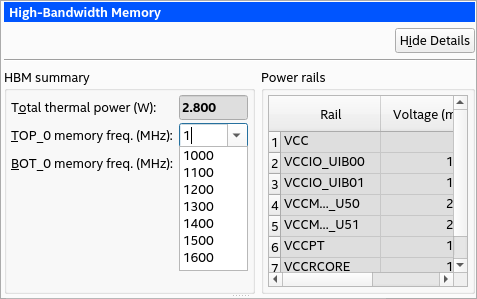

Figure 30. Example 2: Refining the Memory Frequency Drop-down List
![](/content/dam/docs/us/en/683445/23-4/hre1691294278900.png)
