2.4. Power Analysis for Dual-Core 1SG10M Intel® Stratix® 10 Devices
The device package contains two core fabric dies, each with two associated transceivers. In the figure below, U1 and U2 identify the two core fabric tiles, with HSSI_* identifying their respective transceivers.
Generating a PTC File and Importing the Data Into the PTC
- In the Intel® Quartus® Prime software, generate a PTC file for your design, for the U1 tile.
- Create a script file for U1 (for example, design_u1.epe_script) containing the following lines:
import,<U1_name>.ptc export_output_fields, <U1_name>.epe_dump
- Generate an epe_dump file for U1, by running the following command:
quartus_ptc --epe_test_command=runscript --epe_input=design_u1.epe_script --family=nadder
- Download the 1SG10M_Calculator spreadsheet from the Power Estimators and Power Analyzer page.
- Open the 1SG10M_Calculator spreadsheet.
- Import the .epe_dump file into the spreadsheet, by clicking on Data in the spreadsheet menu bar, and then selecting the From Text/CSV icon.

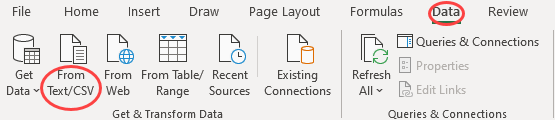

Figure 2. Spreadsheet Menu Bar
- Select the <U1_name>.epe_dump file that you generated in step 3 above, and click Import.
- Ensure that Comma is selected in the Delimiter field, and click Load.

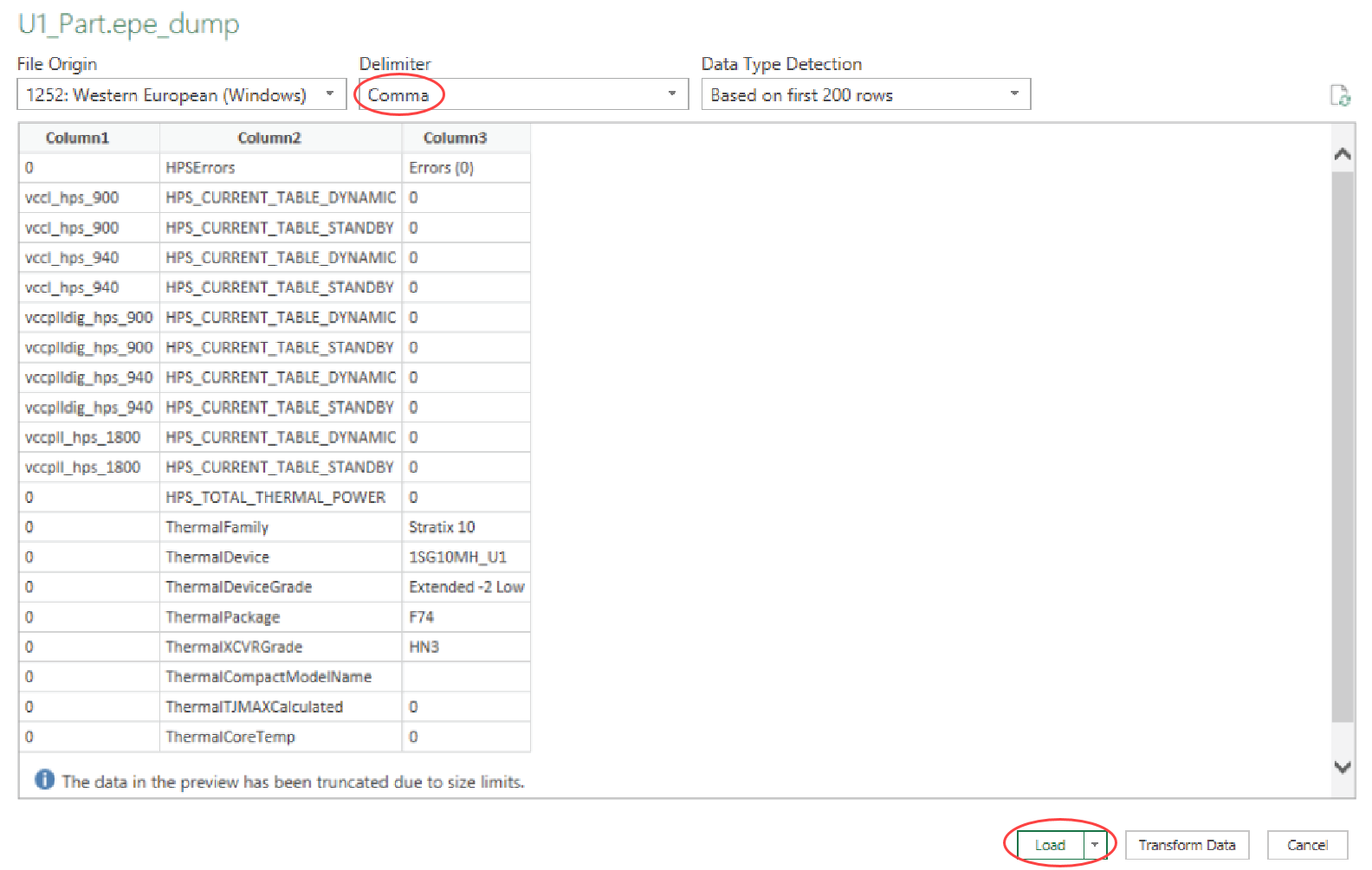

Figure 3. Specifying Comma Delimiters
- After the .epe_dump file has loaded, copy all the data from the newly generated worksheet and paste it into the U1 worksheet, replacing any existing data there.

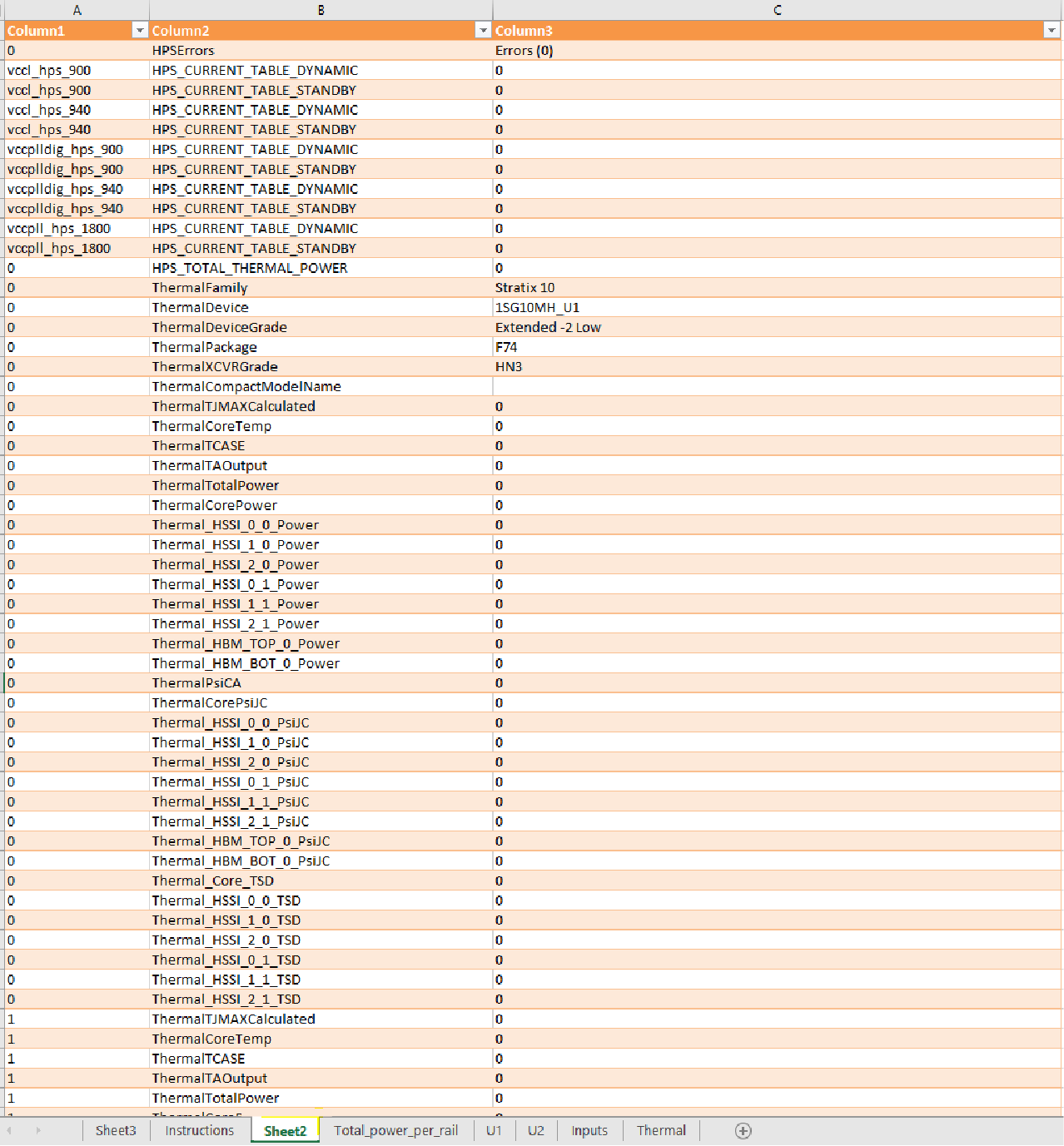

Figure 4. Newly Generated WorksheetFigure 5. Content Copied into U1 Worksheet
- Repeat the above steps for the U2 die.
Interpreting the Spreadsheet
- The Total_power_per_rail worksheet shows the power summary for both U1 and U2 — in this case, 1SG10M as a whole device).
- On the Inputs worksheet, you need to provide the Ambient Temp, Max Junction Temp, TJ-MAX , and HSSI information.

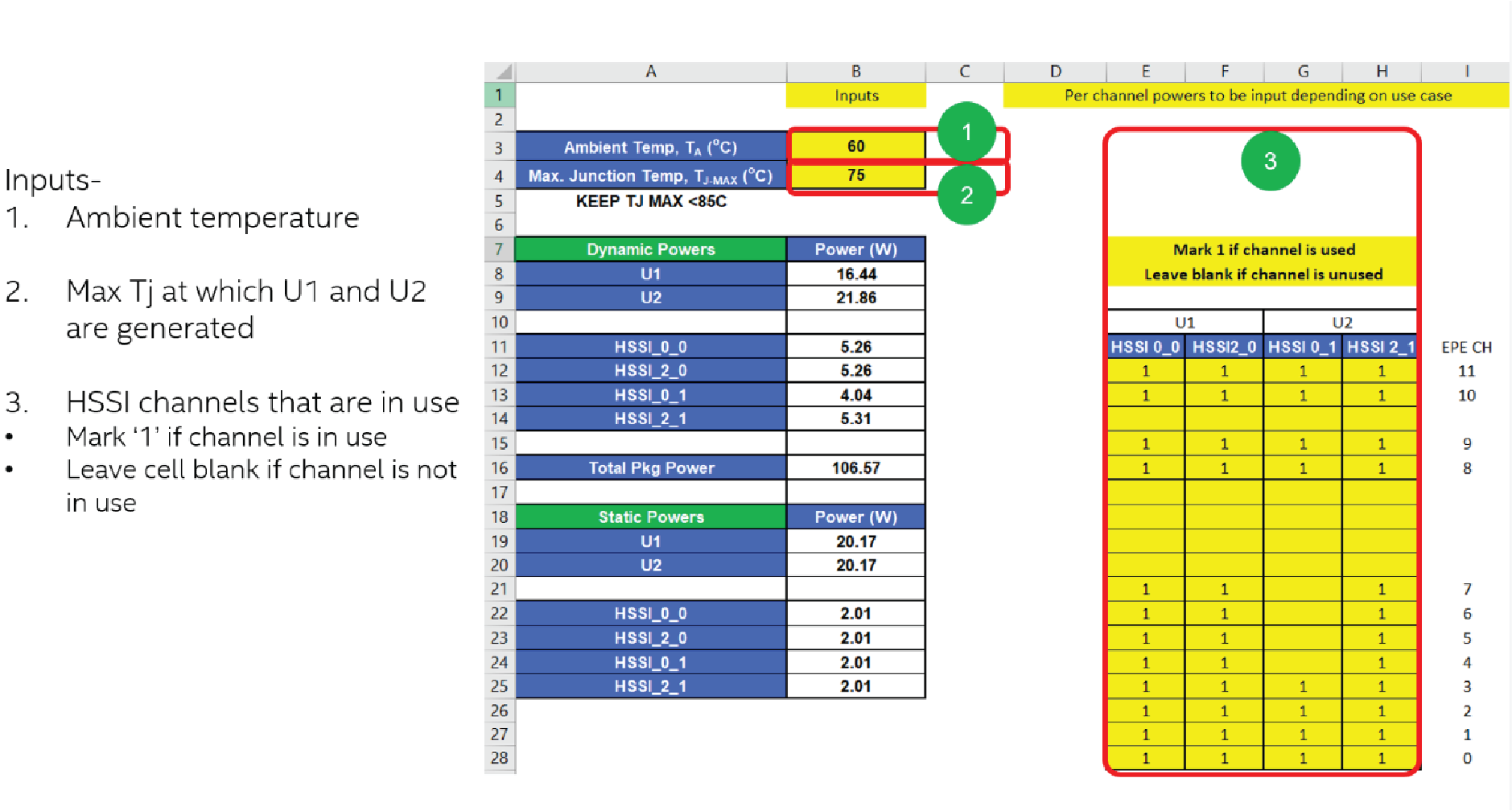

Figure 6. Input Tab
- The Thermal worksheet shows the summary for Ψ values and TSD offset values.
Figure 7. Thermal Worksheet
