1.2. Vacuum Pen

To ensure the components do not get damaged, use vacuum pens with suction cups smaller than the size of the component.

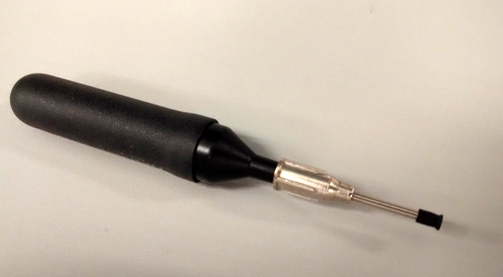

Figure 3. Example of a Vacuum PenThe figure shows a HANDI-VAC® KIT-ESD vacuum pen.
Figure 4. Using the Correct Vacuum Pen
