3.3.5. Intel® Quartus® Prime Compiler Settings

The Intel® Quartus® Prime software provides settings that optimize power for the full design.

To set the optimization mode on the Intel® Quartus® Prime software, click Assignments > Settings > Compiler Settings.

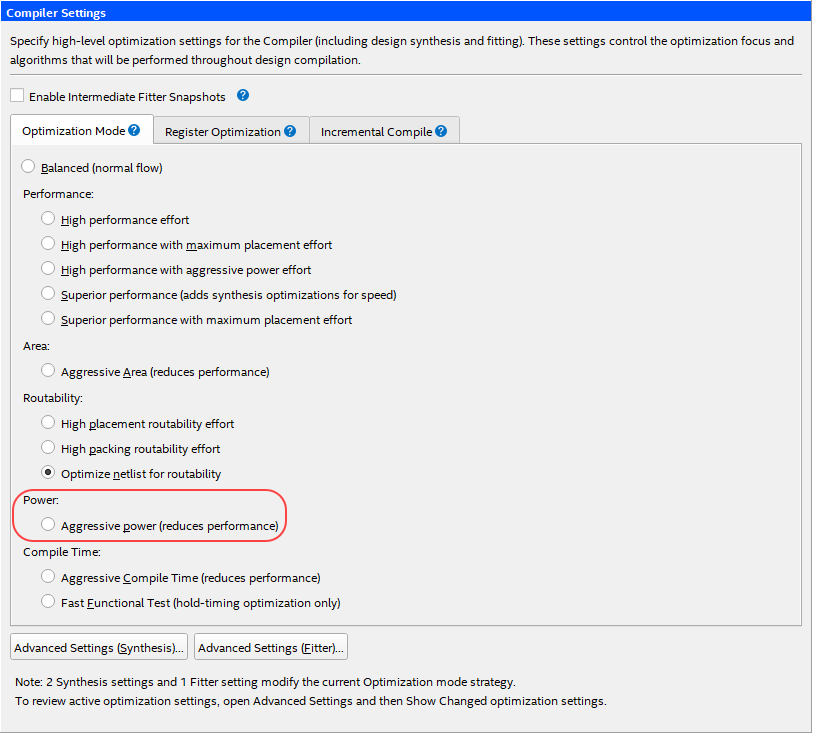

Figure 22. Compiler Settings

Aggressive Power (reduces performance)

Makes aggressive effort to optimize synthesis for low power. The Compiler further reduces the routing usage of signals with the highest specified or estimated toggle rates, saving additional dynamic power but potentially affecting performance.
