Intel® Inspector User Guide for Linux* OS

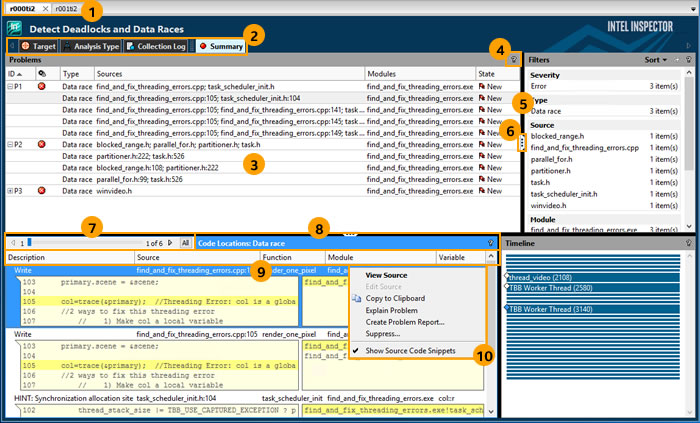

View Results

1

Use result tab names to distinguish among results.

2

Click buttons on the navigation toolbar to change window views.

3

Use window panes to view and manage result data.

4

Click Help button buttons to display help pages that describe how to use window panes.

5

Drag window pane borders to resize window panes.

6

Click Pane toggle icon, Pane toggle icon, Pane toggle icon, and Pane toggle icon controls to show/hide window panes.

7

Click window pane data controls to adjust result data within the pane (and possibly in adjacent panes).

8

Use title bars to identify window panes.

9

Data column headers - Drag to reposition the data column; drag the left or right border to resize the data column; click to sort results in ascending or descending order by column data.

10

Right-click data in window panes to display context menus that provide access to key capabilities.

TIP:

In the Standalone Intel Inspector GUI, press F11 to toggle on and off a full-screen view of result tab data. You can also:

  • Choose View > Full Screen to toggle on full-screen view.

  • Press ESC to toggle off full-screen view.

Parent topic: Investigate Results
